  • Nauja prekė   Technica TBOX-J6412-6C Įterptinė (embedded) sistema be ventiliatoriaus su Elkhart Lake J6412 procesoriumi, maks. 6 COM ir 8 USB prievadais
    Nauja prekė   Technica TBOX-J6412-6C Įterptinė (embedded) sistema be ventiliatoriaus su Elkhart Lake J6412 procesoriumi, maks. 6 COM ir 8 USB prievadais 1

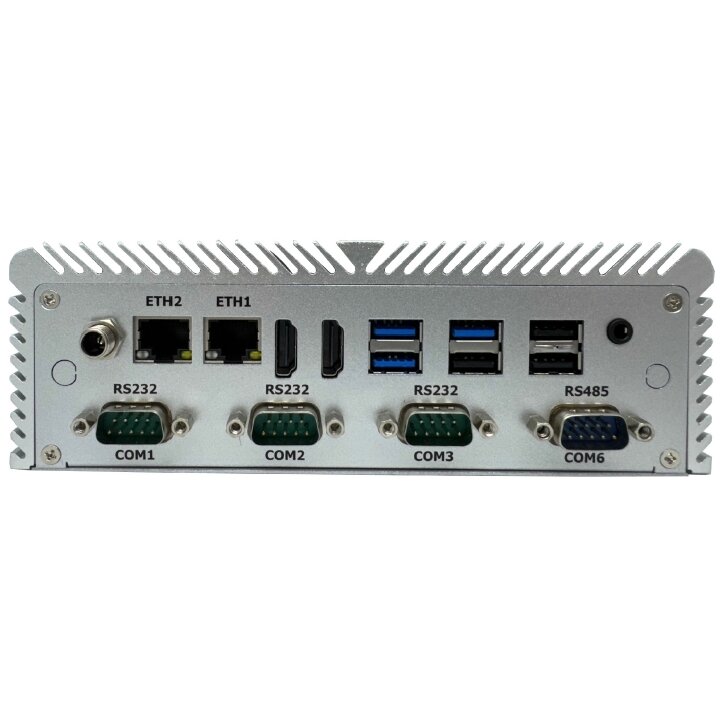

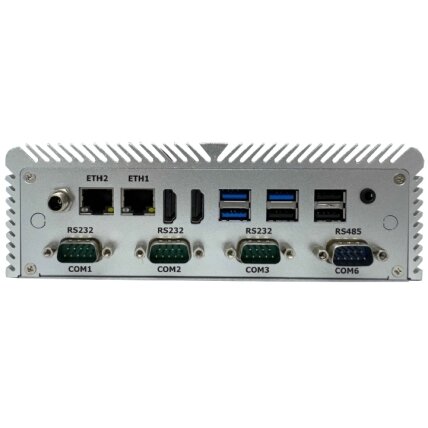

    Technica TBOX-J6412-6C Įterptinė (embedded) sistema be ventiliatoriaus su Elkhart Lake J6412 procesoriumi, maks. 6 COM ir 8 USB prievadais

    Kodas: TBOX-J6412-6C
    Užsakoma prekė
    Pasiteirauti/Užsakyti
    Fanless Embedded System with Elkhart Lake J6412 Processor with Max. 6 x COM ports, 8 x USB ports
    Gamintojas
    Technica House
    Kilmės šalis
    Taivanas
  • CPU Intel Celeron J6412 CPU, Quad-Core, up to 2.6 GHz, TDP 10W
    Chipset CPU Integrated
    System Memory DDR4-2666/2933/3200, 1 x SO-DIMM, up to 32GB
    BIOS AMI
    COM 3 x RS-232, 1 x RS-232/485 (Optional extra 2 x RS-232)
    USB

    3 x USB 3.0
    3 x USB 2.0 (Optional extra 2 x USB 2.0)
    Ethernet 2 x RJ-45, Intel GBE LAN Chip (10/100/1000 Mbps)
    PoE -
    Display

    2 x HDMI
    Digital I/O
    Audio 1 x Line-Out + MIC 2 in 1 4.0mm Jack
    Storage 1 x SATA 3.0, 1 x NVMe M.2, 1 x mSATA
    Expansion

    1 x M.2 (Key-M, 2280, PCIe x2 NVMe/ SATA) NVMe is default
    1 x M.2 (Key-B, 3052, PCIE/USB 3.0 + USB 2.0) USB 3.0 is default
    1 x Mini-PCIe (PCIe + USB 2.0/ mSATA) PCIe + USB 2.0 is default
    Others 1 x Power LED Header 1 x Power Button Header 1 x System Reset Header 1 x HDD LED Header 1 x CPU FAN Header 1 x MPS Header 2 x GSPI Header 1 x SIM Card Header
    Power Supply

    1 x DC 12V power input connector with lock
    Optional: Phoenix contact connector
    Optional: Wide range 9-36V
    Watchdog Timer With Watchdog Timer
    Construction -
    Operating Temperature -20°C ~ 70°C
    Relative Humidity 10% ~ 95% RH non-condensing
    Vibration -
    Shock -
    Dimensions 182.12 x 130 x 59.85 mm
    Weight 1.20 Kg
    Certifications CE/FCC
    EOS Support -
    Software Support Windows 10, Windows 11, Linux
    Mounting VESA mount 100 x 100 mm, DIN Rail with DIN Rail bracket (Optional) Wall Mount with Wall Mount bracket (Optional)
