  • New item   Advantech AFE-E620 Arm Allwinner T536 4*Cortex A55 gateway with RS-485, CAN, Isolated DI, relay outpout, EN 61010, CE
    New item   Advantech AFE-E620 Arm Allwinner T536 4*Cortex A55 gateway with RS-485, CAN, Isolated DI, relay outpout, EN 61010, CE 1
    New item   Advantech AFE-E620 Arm Allwinner T536 4*Cortex A55 gateway with RS-485, CAN, Isolated DI, relay outpout, EN 61010, CE 2

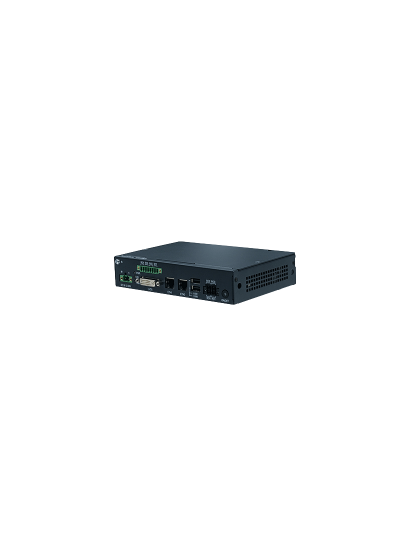

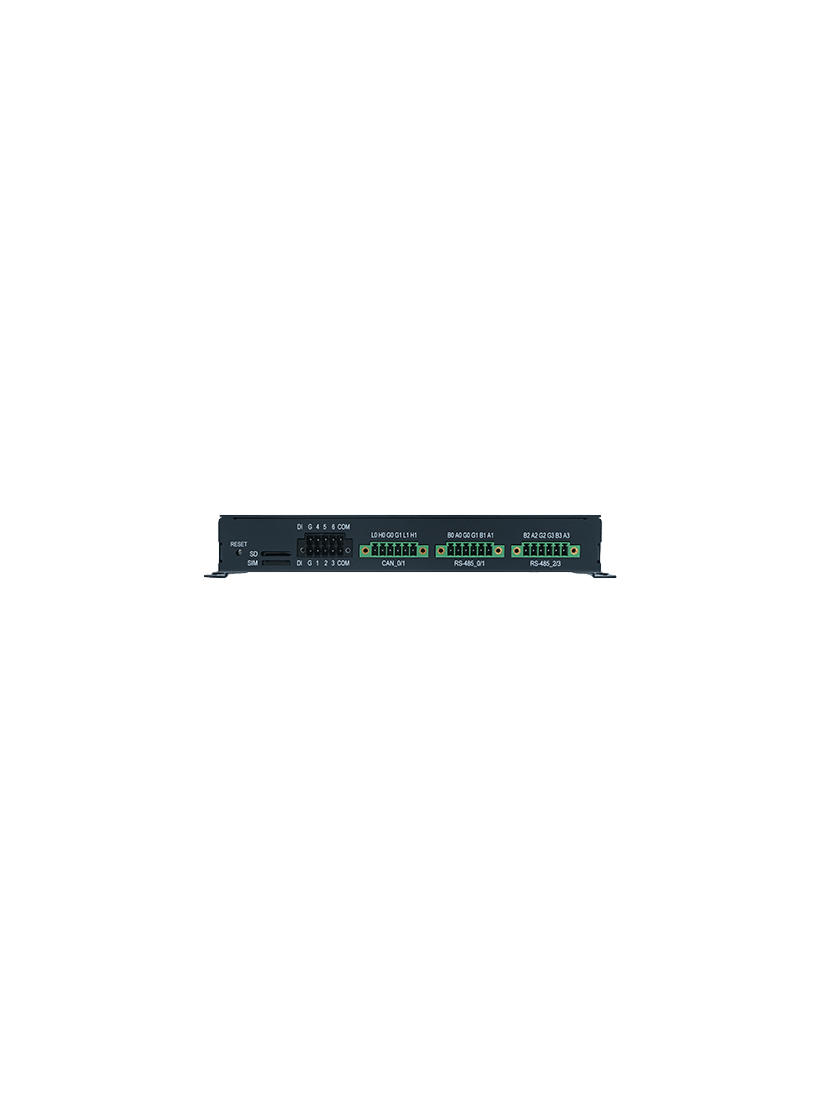

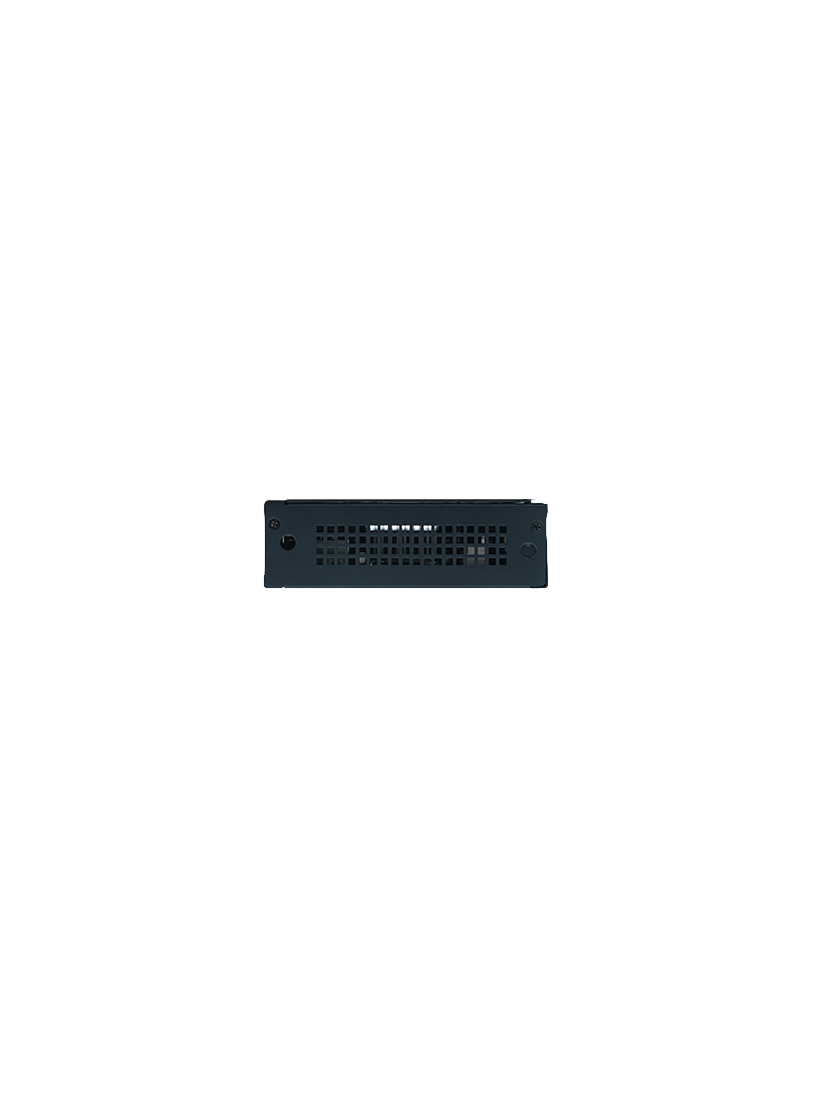

    Advantech AFE-E620 Arm Allwinner T536 4*Cortex A55 gateway with RS-485, CAN, Isolated DI, relay outpout, EN 61010, CE

    Code: AFE-E620
    Ordered item
    Order
    Manufacturer
    Advantech
    Link/PDF
     AFE-E620
    Made in
    Taiwan
  • • Allwinner T536 Arm 4* Cortex-A55, up to 1.6 GHz
    • Intergrated single-core E907 RISC-V processor, up to 600MHz
    • Intergrated neural processing uint (NPU) up to 2 Tops
    • 1GB DDR3L memory onboard (dual-channel)
    • 16GB and 64GB eMMC optional
    • All I/O with isolation protection: RS-485, CAN, DI, Relay Output
    • Intergrated 6x relay output
    • Support 4G/Wi-Fi6/BT/NVME SSD/LVDS
    • (Coming soon) IEC 61010/IEC 62443/CE/CCC/FCC
