  • New item   Advantech AIMB-217 Intel Atom Processors, Celeron Processors, and Pentium Processors based on the Apollo Lake Platform
    New item   Advantech AIMB-217 Intel Atom Processors, Celeron Processors, and Pentium Processors based on the Apollo Lake Platform 1
    New item   Advantech AIMB-217 Intel Atom Processors, Celeron Processors, and Pentium Processors based on the Apollo Lake Platform 2

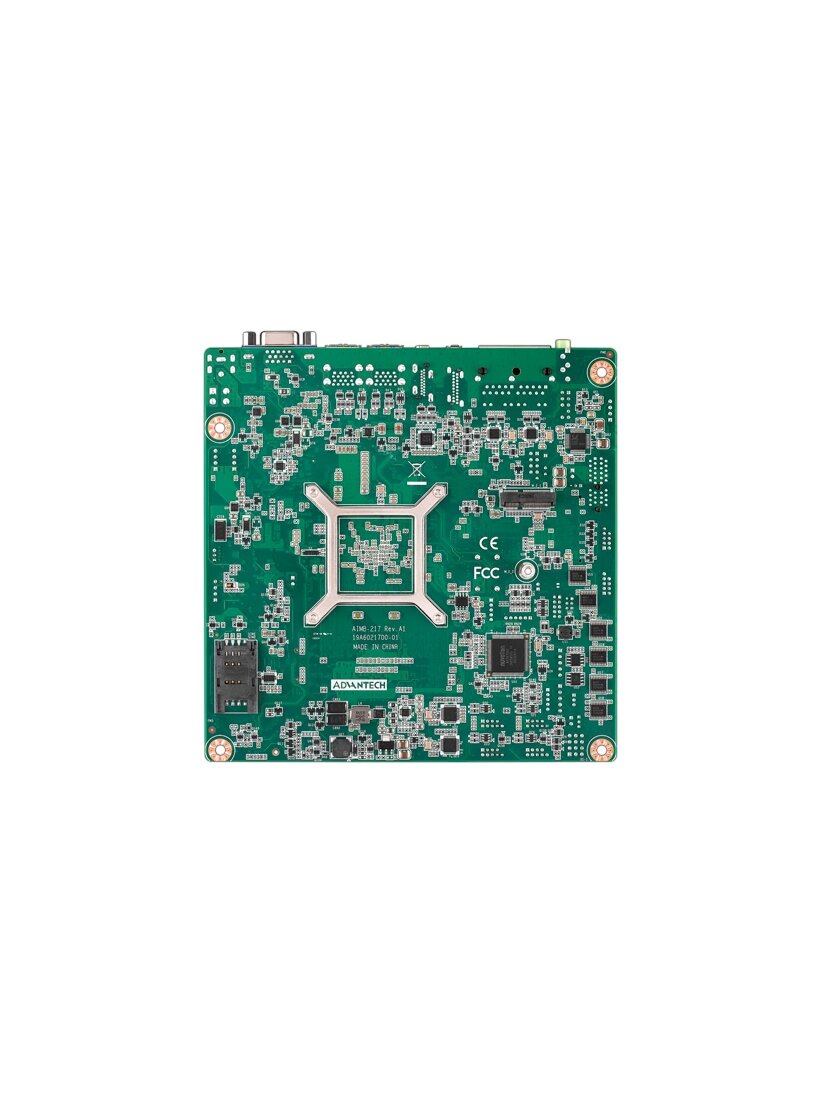

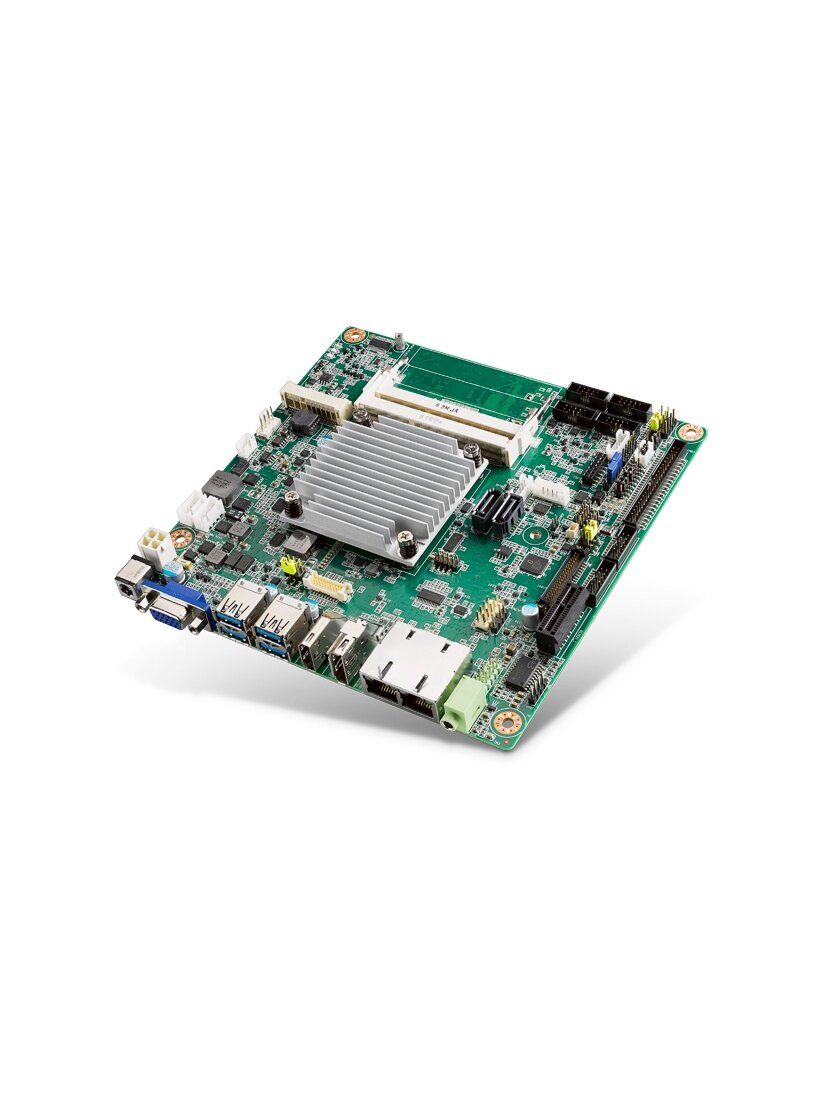

    Advantech AIMB-217 Intel Atom Processors, Celeron Processors, and Pentium Processors based on the Apollo Lake Platform

    Code: AIMB-217
    Ordered item
    Order
    Manufacturer
    Advantech
    Link/PDF
     AIMB-217
    Made in
    Taiwan
  • • Supports Intel Pentium/Celeron/Atom processor N4200/N3350/x7-E3950
    • Two 204-pin SO-DIMM up to 8 GB DDR3L 1866 MHz SDRAM

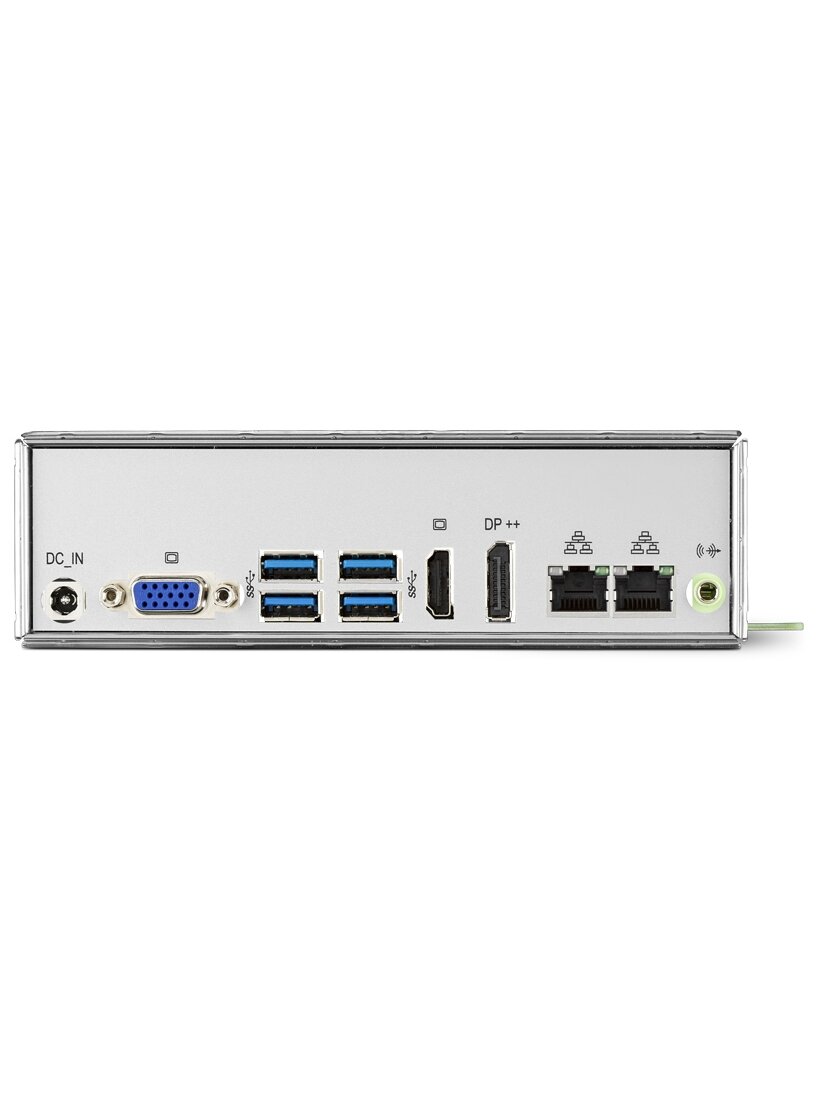

    • Supports, DP++ (or LVDs), HDMI, VGA (or eDP)
    • Supports 1 PCIe x1 or 1 M.2 (E key), 1 Mini-PCIe expansion slot, 6 COMs, 4 USB 3.0 & 4 USB 2.0, dual LAN.
    • Lower total cost of ownership with DC12V support and onboard TPM1.2 (optional) & Amplifier (optional)
    • Support SUSI, WISE-DeviceOn and Edge AI Suite
    • Support Windows 10, Linux Yocto
