  • New item   Advantech AMAX-4830SO 16-ch Isolated Digital Input and 16-ch Isolated Digital Output EtherCAT Remote I/O Module
    New item   Advantech AMAX-4830SO 16-ch Isolated Digital Input and 16-ch Isolated Digital Output EtherCAT Remote I/O Module 1

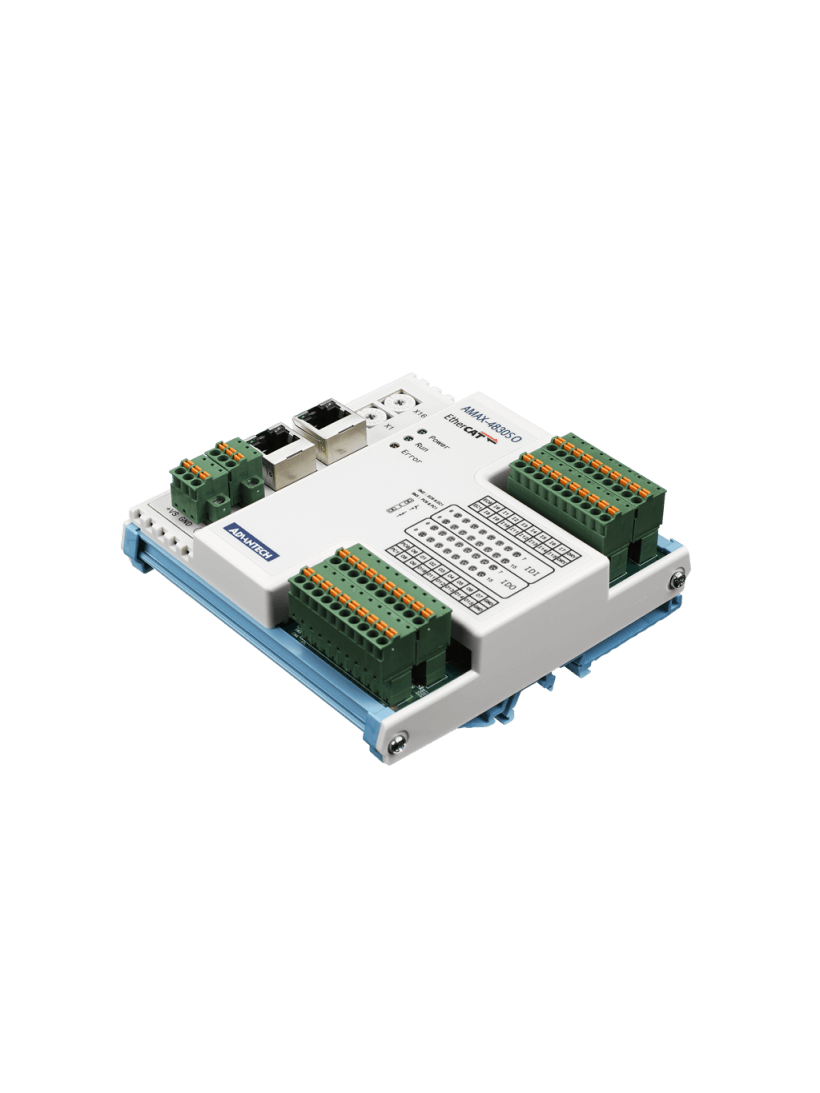

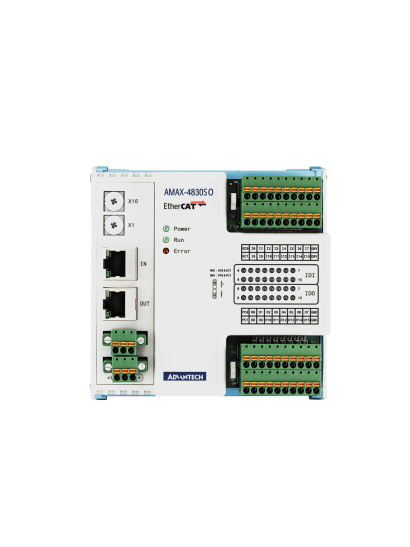

    Advantech AMAX-4830SO 16-ch Isolated Digital Input and 16-ch Isolated Digital Output EtherCAT Remote I/O Module

    Code: AMAX-4830SO
    Ordered item
    Order
    Manufacturer
    Advantech
    Link/PDF
     AMAX-4830SO
    Made in
    Taiwan
  • • Suitable for EtherCAT networks
    • 16-ch digital input and 16-ch digital output with 2,500 VDC isolation
    • Wide input voltage range (10 ~ 30 VDC)
    • Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)
    • Quick removable European type connector
    • LED indicators for I/O status
    • Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
    • Two Rotary switches for up to 256 SubDevice IDs
