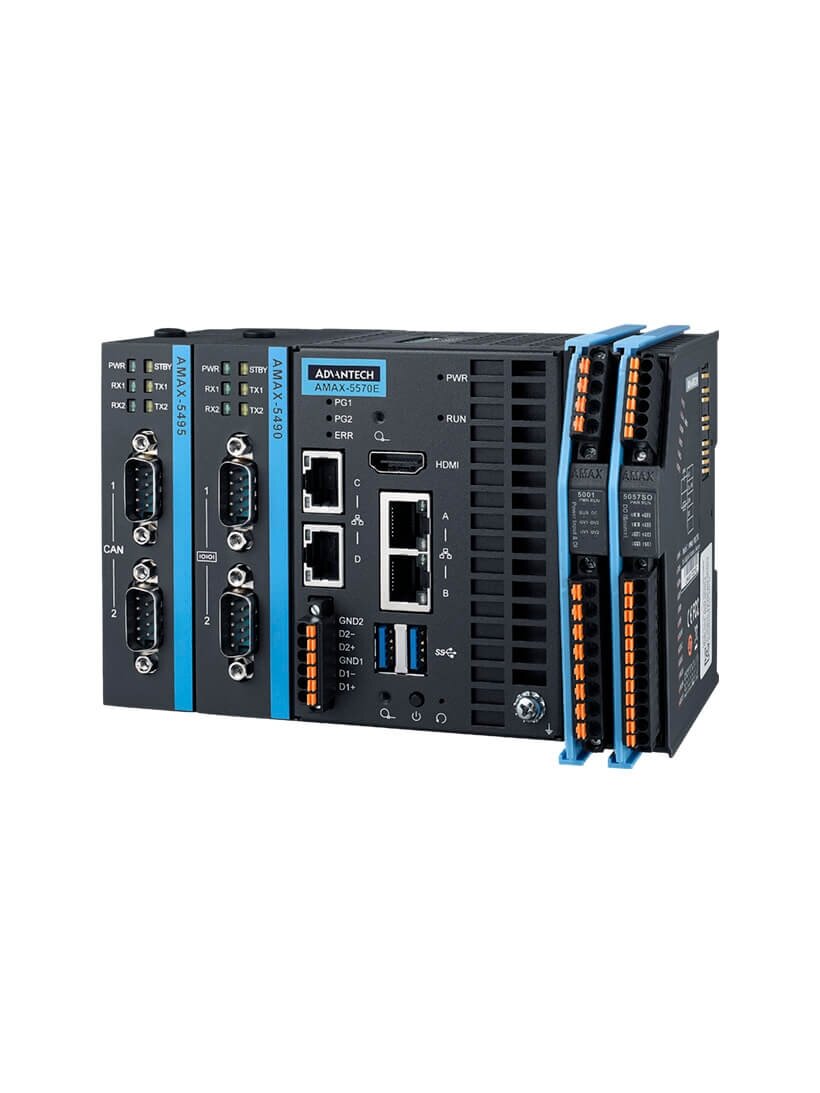

    New item   Advantech AMAX-5570E V2 Intel Atom® Embedded Controller 1

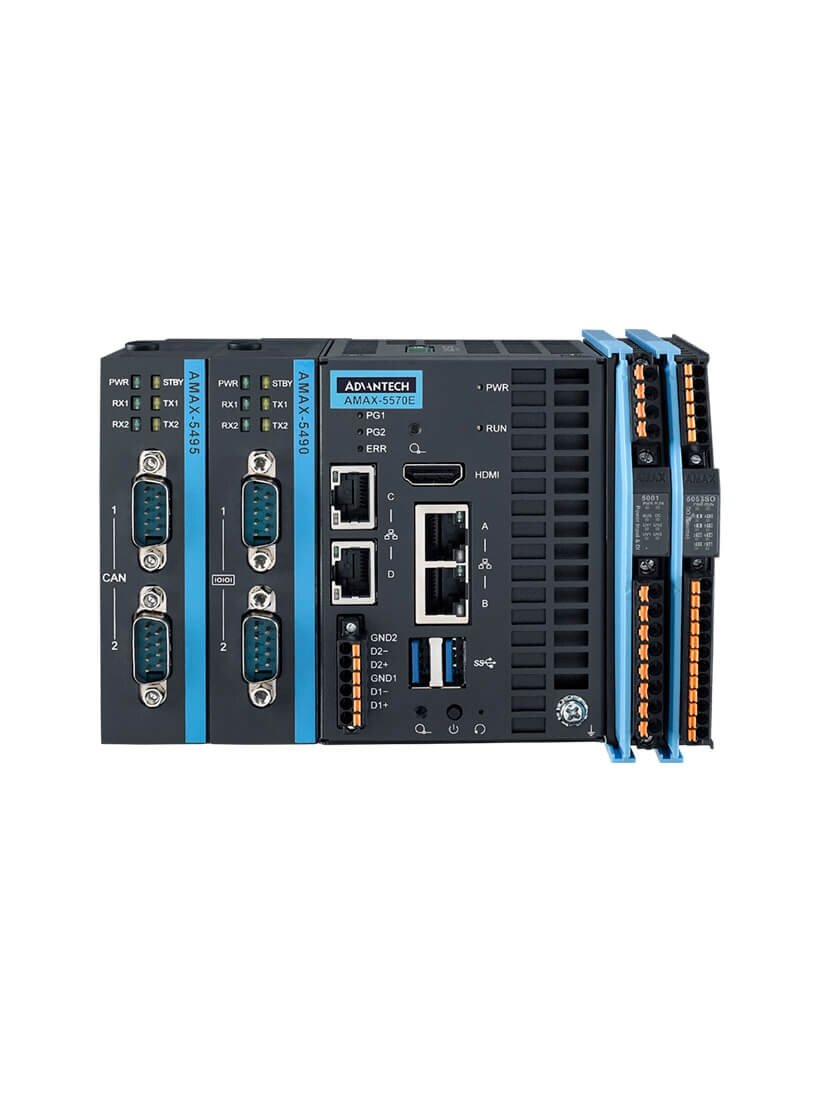

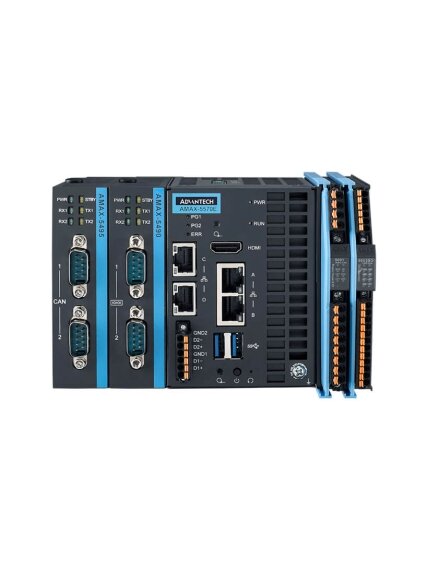

    New item   Advantech AMAX-5570E V2 Intel Atom® Embedded Controller 2

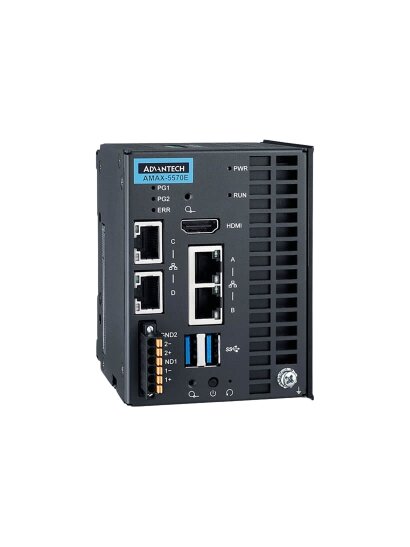

    Advantech AMAX-5570E V2 Intel Atom® Embedded Controller

    Code: AMAX-5570E V2
    Ordered item
    Order
    Manufacturer
    Advantech
    Link/PDF
     AMAX-5570E V2
    Made in
    Taiwan
  • • Optimized BIOS & Embedded OS for 1ms real-time control (Windows & Linux)
    • Achieves 32-axis motion control with 500 μs EtherCAT cycle time under Linux
    • OPC UA and Modbus TCP/RTU as IT connectivity enabled by CODESYS
    • EtherCAT, PROFINET, Ethernet I/P, and CANopen are OT connectivity feature enabled by CODESYS
    • Intel Atom® quad-core x6414RE processor
    • System I/O with 4 x GbE, 2 x USB, 2 x Isolated COM, 1 x HDMI, 1 x 5 pin terminal (dual power input)
    • AMAX-5000 EtherCAT Slice I/O expansion and AMAX-5400 PCIe modules, optional for left side (max.2)
    • iDAQ-964 modules, optional for left side
    • EMC compliance for energy management and Battery Energy Storage System (IEC-61000-4 Industrial requirement)
