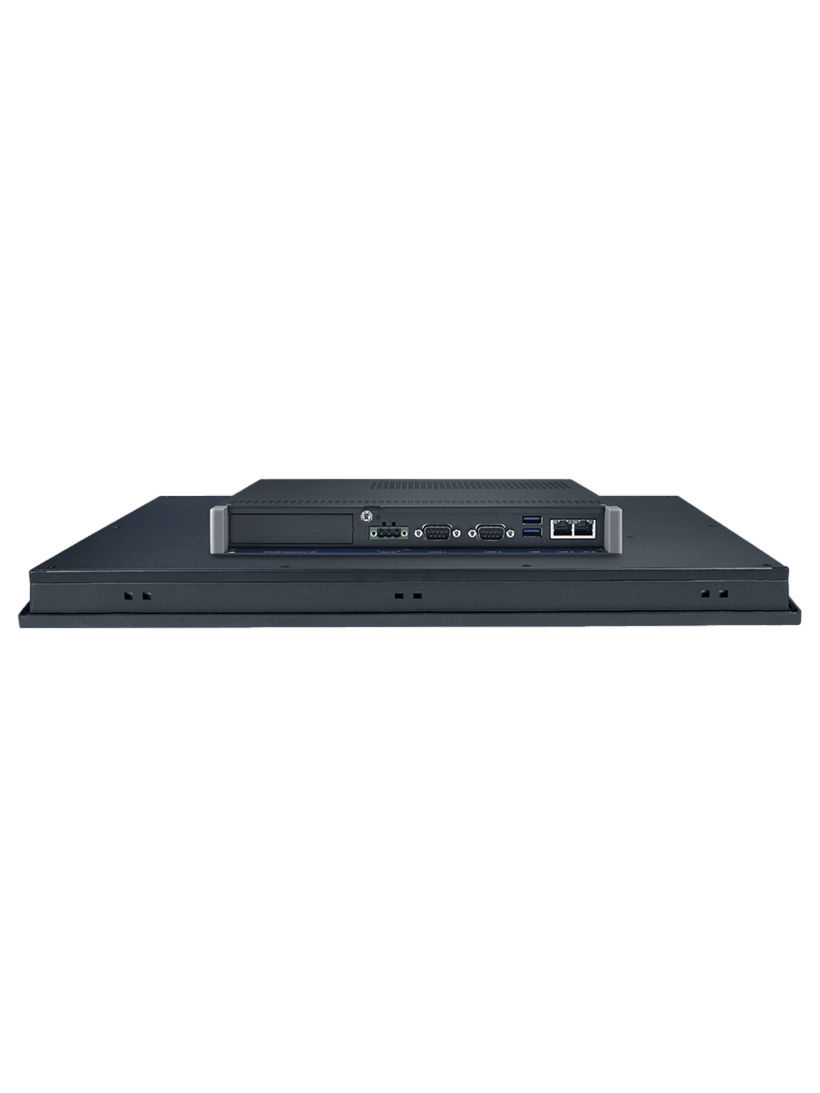

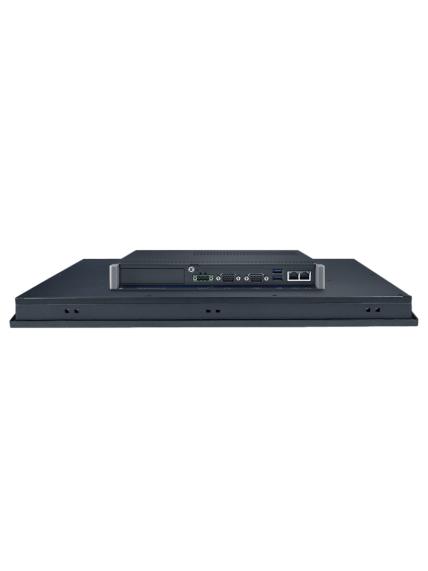

    New item   Advantech AMAX-PT700 V2 Intel Atom® Panel Controller 1

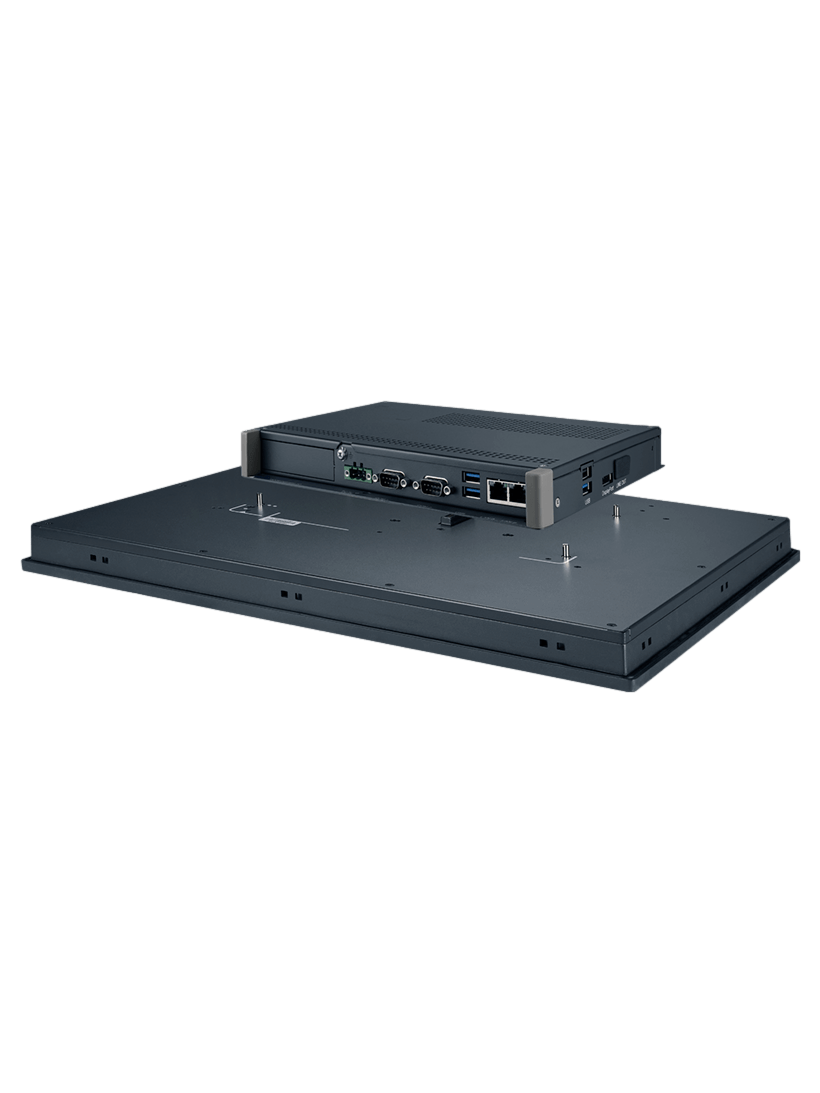

    New item   Advantech AMAX-PT700 V2 Intel Atom® Panel Controller 2

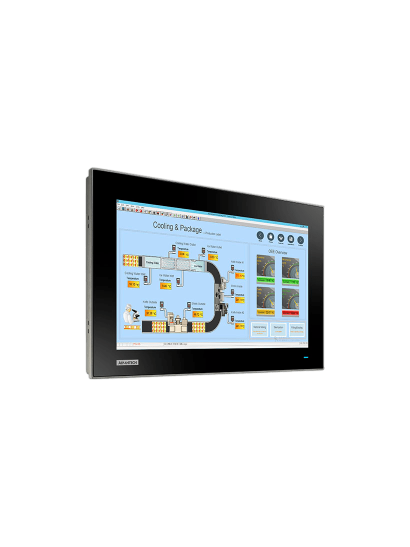

    Advantech AMAX-PT700 V2 Intel Atom® Panel Controller

    Code: AMAX-PT700 V2
    Ordered item
    Order
    Manufacturer
    Advantech
    Link/PDF
     AMAX-PT700 V2
    Made in
    Taiwan
  • • Optimized BIOS & Embedded OS for 1ms real-time control (Windows and Linux)
    • Achieve 32-axis motion control with 1ms EtherCAT cycle time under Linux
    • OPC UA and Modbus TCP/RTU as IT connectivity enabled by CODESYS
    • EtherCAT, PROFIT, Ethernet I/P, CANopen as OT connectivity enabled by CODESYS
    • Unlimited I/O points, fieldbus networks, and visualization variables for CODESYS applications
    • CODESYS Visualization (Target and Web), SoftMotion and CNC/Robotics support by different package
    • Advantech Data Connect (ADC) Library provides flexible and highly efficient data connection with 3rd party application software through symbols (PLC Handler) & shared memory (C++/C#)
    • Modular Computing Box designed with Intel Atom® x6425E with one DDR4 SODIMM slot (up to 32GB)
    • Multiple-sized front panel modules offered with P-Cap multi-touch sensor (12.1" & 19" with robust 5-wire resistive touch)
