  • New item   Advantech BB-FOSTCDRI-PH-SC ULI-213E - Heavy Industrial RS-232/422/485 (Terminal Block) to Single Mode Fiber (SC Connector) Panel Mount Metal Chassis
    New item   Advantech BB-FOSTCDRI-PH-SC ULI-213E - Heavy Industrial RS-232/422/485 (Terminal Block) to Single Mode Fiber (SC Connector) Panel Mount Metal Chassis 1
    New item   Advantech BB-FOSTCDRI-PH-SC ULI-213E - Heavy Industrial RS-232/422/485 (Terminal Block) to Single Mode Fiber (SC Connector) Panel Mount Metal Chassis 2

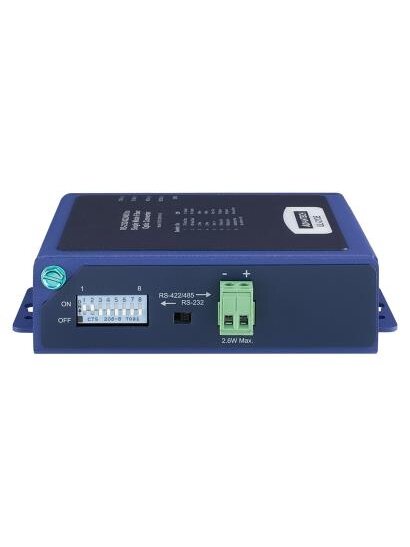

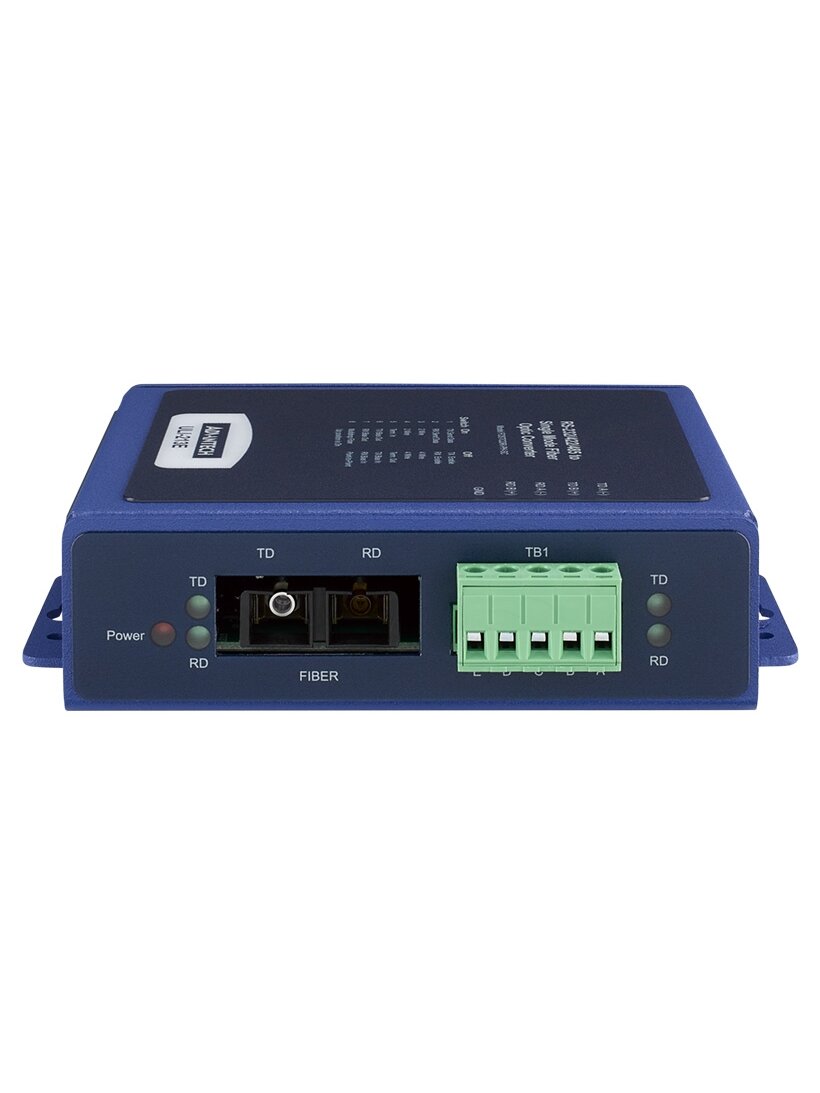

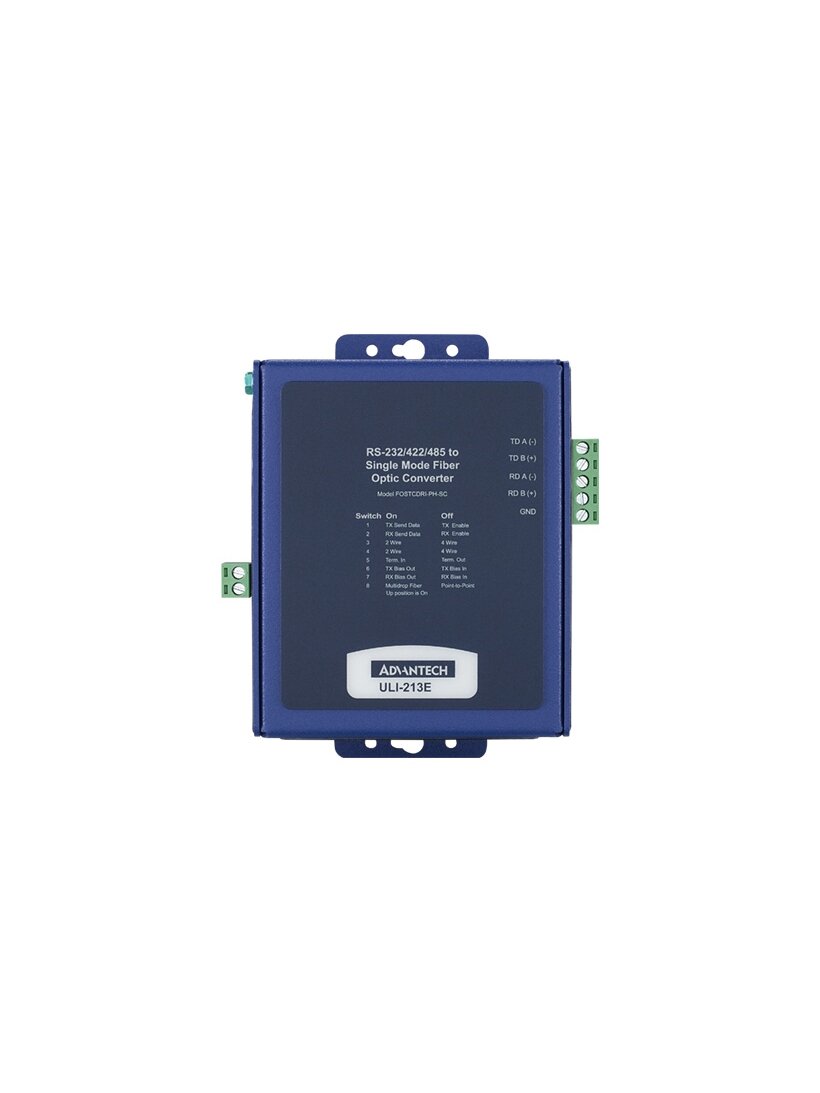

    Advantech BB-FOSTCDRI-PH-SC ULI-213E - Heavy Industrial RS-232/422/485 (Terminal Block) to Single Mode Fiber (SC Connector) Panel Mount Metal Chassis

    Code: BB-FOSTCDRI-PH-SC
    Ordered item
    Order
    Manufacturer
    Advantech
    Link/PDF
     BB-FOSTCDRI-PH-SC
    Made in
    Taiwan
  • • Converts serial data signals to multi- or single-mode fiber, SC connector
    • 2 KV, 3-way isolation (input, output, power circuits)
    • Data rate: 9.6 to 115.2 kbps (bit-wise enable)
    • -40 to +85°C wide operating temperature
    • IP30 metal panel mount case (DIN rail adaptable)
    • FCC, CE, IEC-61850-3, IEEE 1613, UL C1/D2
    • 10-48 VDC power source required (not included, sold separately)
    • Note: 2 units required to extend data via fiber optic connection (see datasheet)
