  • New item   Advantech PCI-1245V Value DSP-Based 4-Axis Motion Control Universal PCI Card
    New item   Advantech PCI-1245V Value DSP-Based 4-Axis Motion Control Universal PCI Card 1

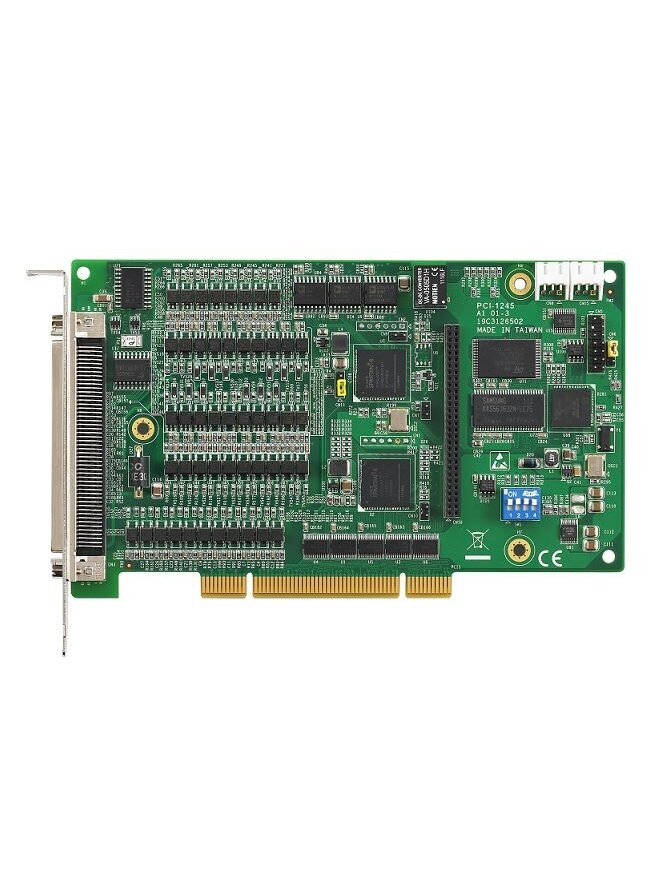

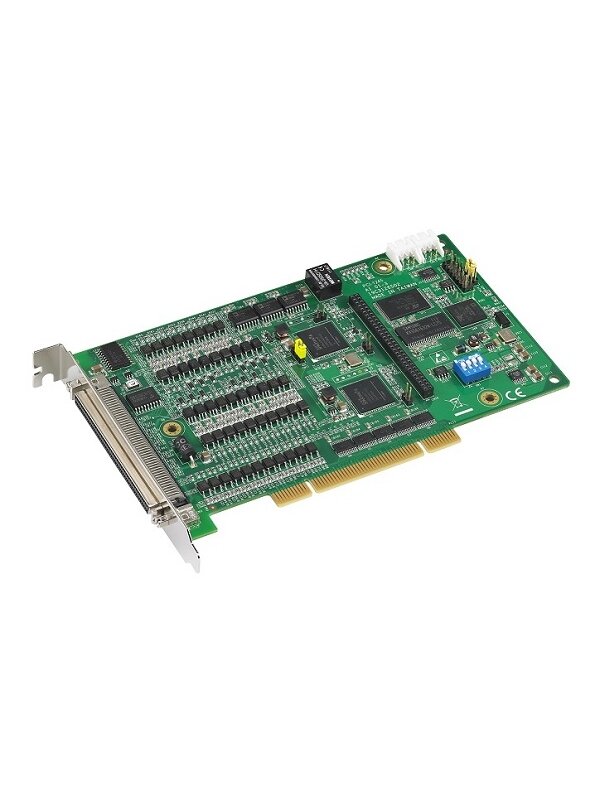

    Advantech PCI-1245V Value DSP-Based 4-Axis Motion Control Universal PCI Card

    Code: PCI-1245V
    Ordered item
    Order
    Manufacturer
    Advantech
    Made in
    Taiwan
  • • Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
    • Pulse output up to 5 Mpps
    • Supports linear and circular interpolation
    • Hardware emergency input
    • Supports E-Gear
    • Supports programmable acceleration/deceleration rate
    • Memory buffer (10K points) for trajectory planning which is designed in DSP(Auto-blending is not supported)
    • Position compares triggering up to 100 KHz, and memory buffer is up to 100 K points in DSP
    • Position latch
    • Programmable interrupt and watchdog timer
    • RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicatedoutput channels are switchable for general input and output purposes
