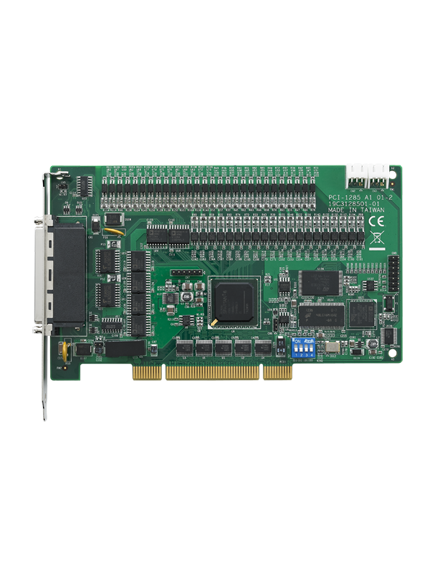

    New item   Advantech PCI-1285 Full DSP-based 8-Axis Motion Control Universal PCI Card 1

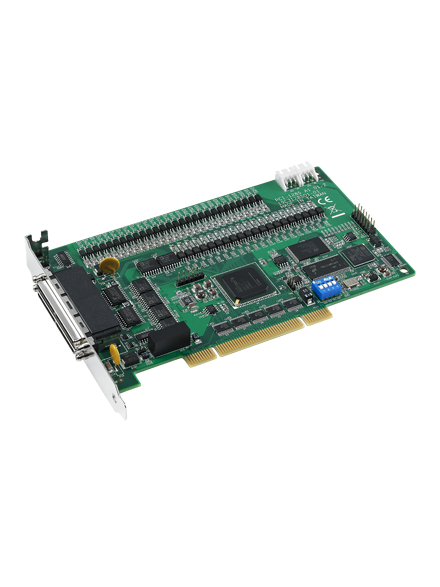

    Advantech PCI-1285 Full DSP-based 8-Axis Motion Control Universal PCI Card

    Code: PCI-1285
    Ordered item
    Order
    Manufacturer
    Advantech
    Made in
    Taiwan
  • • Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
    • Pulse output up to 5 Mpps
    • Memory buffer (10K points) for trajectory planning which is designed in DSP
    • Supports E-Gear, and helical interpolation
    • Supports E-CAM providing 256 points to describe the CAM profiles which buffers located in DSP
    • Hardware emergency input
    • Watchdog timer
    • Position latch
    • Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points in DSP
    • Programmable interrupt
    • Supports gantry mode by semi-closed loop pulse train control RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated output channels are switchable for general input and output purposes
