  • New item   Advantech PCI-1752U 64-ch Isolated Digital Output Universal PCI Card

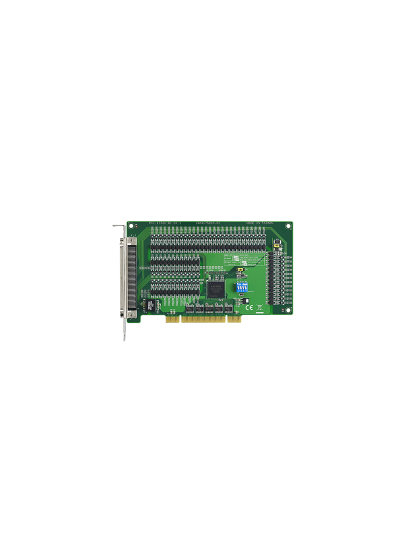

    Advantech PCI-1752U 64-ch Isolated Digital Output Universal PCI Card

    Code: PCI-1752U
    Ordered item
    Order
    Manufacturer
    Advantech
    Link/PDF
     PCI-1752U
    Made in
    Taiwan
  • • 64-ch Sink Type (NPN) Isolated Digital Output Module (PCI-1752U Only)
    • 64-ch Source Type (PNP) Isolated Digital Output Module (PCI-1752USO Only)
    • High-voltage isolation on output channels (2,500 VDC)
    • Wide output range (5 ~ 40 VDC)
    • High-sink/source current on isolated output channels (200 mA max./channel)
    • Output status readback
    • Keeps the output settings and values after system hot reset
    • Channel-freeze function ƒ
    • High-density 100-pin SCSI connector
