  • New item   Advantech PCIE-1763 16-ch Solid-State Relay Output and 16-ch Isolated Digital Input with Digital Filter and Interrupt PCIE Card

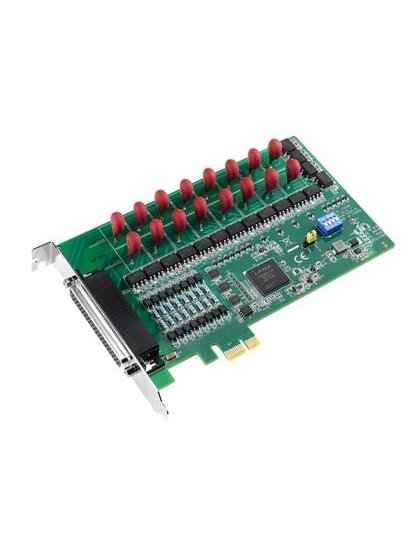

    Advantech PCIE-1763 16-ch Solid-State Relay Output and 16-ch Isolated Digital Input with Digital Filter and Interrupt PCIE Card

    Code: PCIE-1763
    Ordered item
    Order
    Manufacturer
    Advantech
    Link/PDF
     PCIE-1763
    Made in
    Taiwan
  • • 16-ch solid-state relay (SSR) output with longer lifetime and higher operating speed compared to electro-mechanical relays
    • Zero-crossing (synchronous) trigger for reduced inrush current and electrical noise
    • 16-ch photoMOS relay output with longer lifetime and higher operating speed compared to electro-mechanical relays
    • 16-ch isolated digital input (IDI) with both dry and wet contact configurations
    • Interrupt capability for all IDI channels
    • LEDs for output state indication
    • Much less contact problems such as arcs, bounce, and noise
    • Suitable for both AC and DC applications with frequent ON/OFF switching
    • Programmable duration noise filter for all IDI channels
