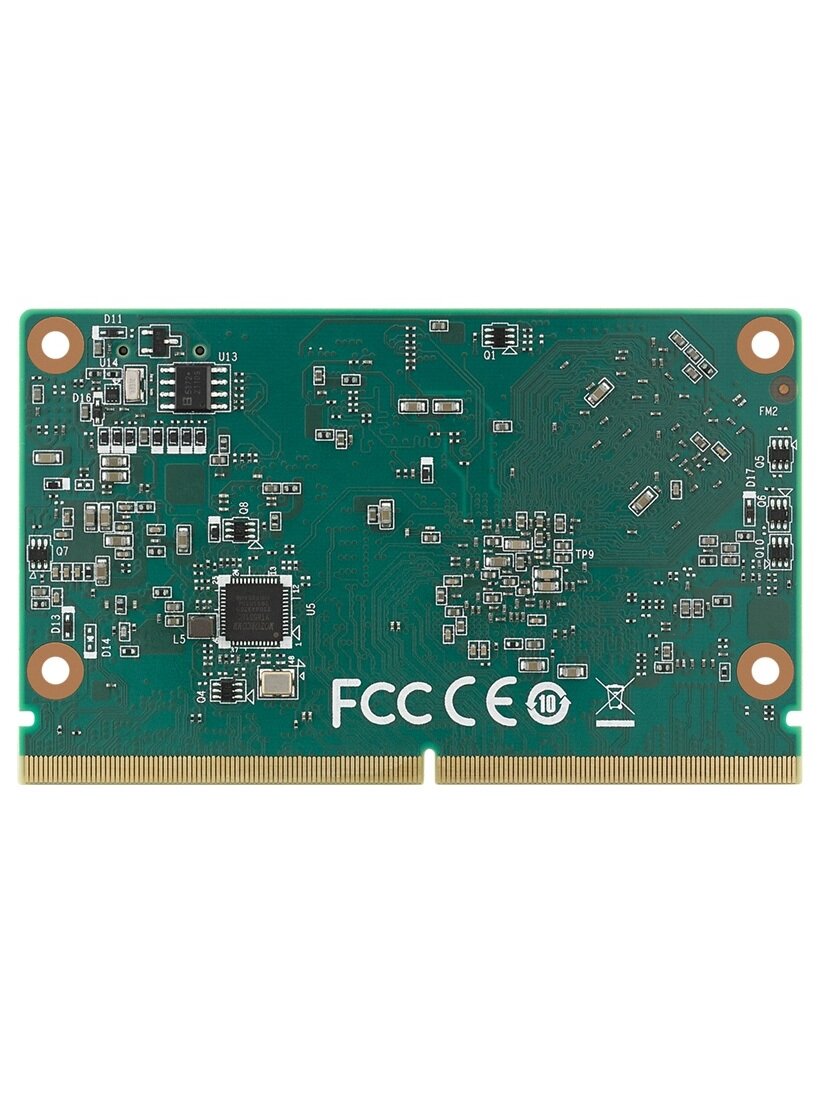

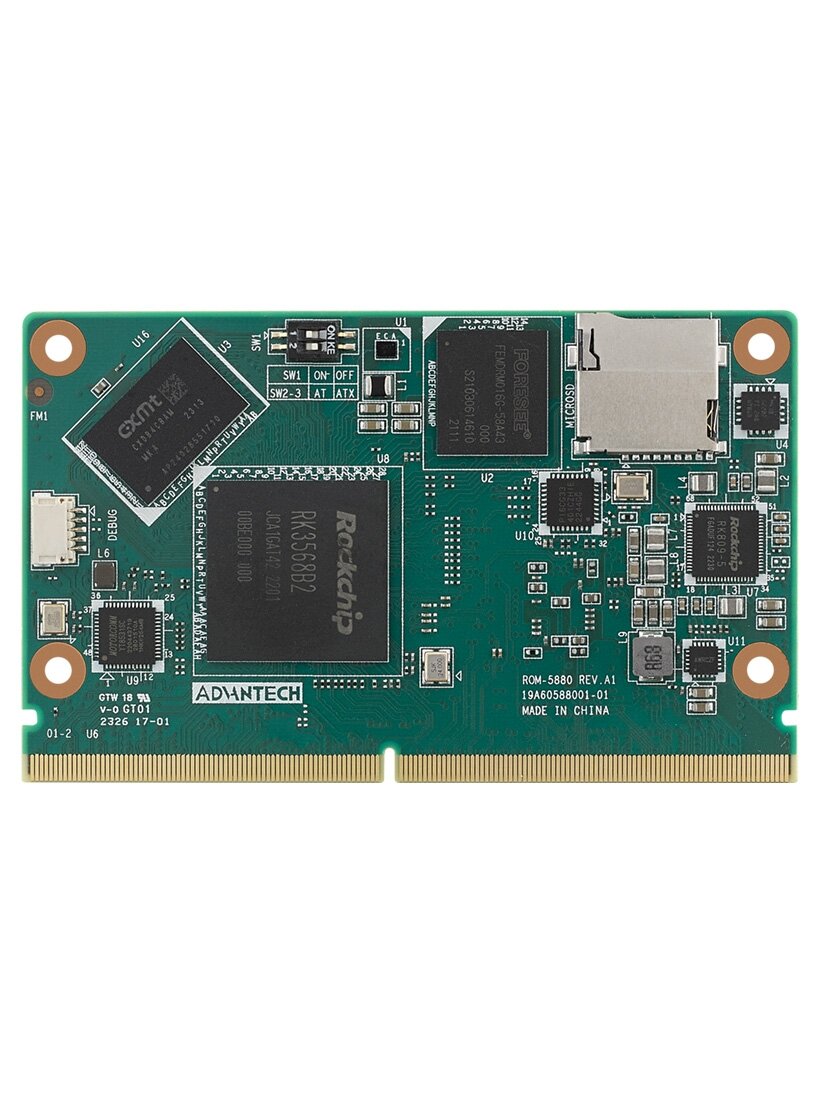

  • New item   Advantech ROM-5880 Advantech ROM-5880 is a SOM based on Rockchip RK3568 Cortex-A55 and complies with the SMARC 2.1 standard
    New item   Advantech ROM-5880 Advantech ROM-5880 is a SOM based on Rockchip RK3568 Cortex-A55 and complies with the SMARC 2.1 standard 1

    Advantech ROM-5880 Advantech ROM-5880 is a SOM based on Rockchip RK3568 Cortex-A55 and complies with the SMARC 2.1 standard

    Code: ROM-5880
    Ordered item
    Order
    Manufacturer
    Advantech
    Link/PDF
    Made in
    Taiwan
  • • Rockchip RK3568 Arm Quad Cortex-A55 up to 2.0GHz, With NPU of 0.8 TOPS
    • Onboard 2/4GB LPDDR4 memory
    • 16G/32GB MLC eMMC, with high endurance
    • Support 1 x HDMI2.0 4K, 1 x LVDS or 1 x MIPI DSI
    • Support 4K H.264/H.265 Video decoder
    • 2 x PCIe3.0, 1 x SATA, 1 x MIPI CSI, 2 x Gigabit LAN
    • 2 x USB3.0, 2 x USB2.0, 4 x UART, 14 x GPIO
    • Equipped with a HW watchdog (MCU), make the system more reliable
    • Support Linux and Android
