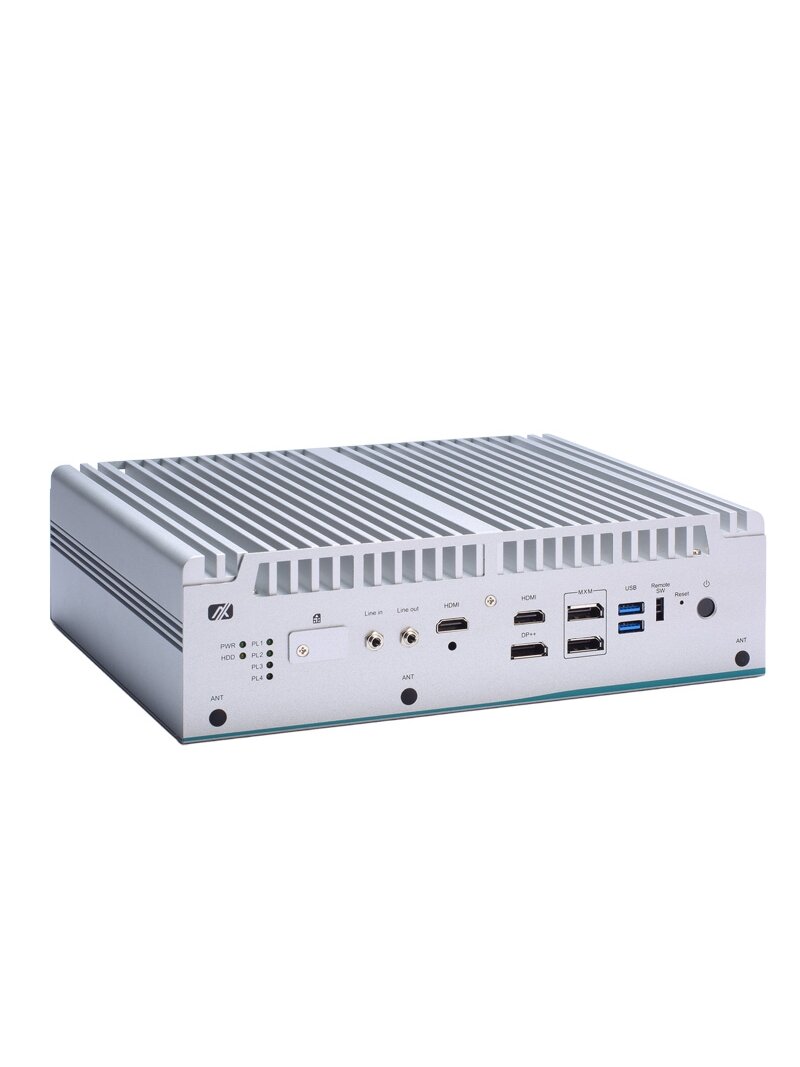

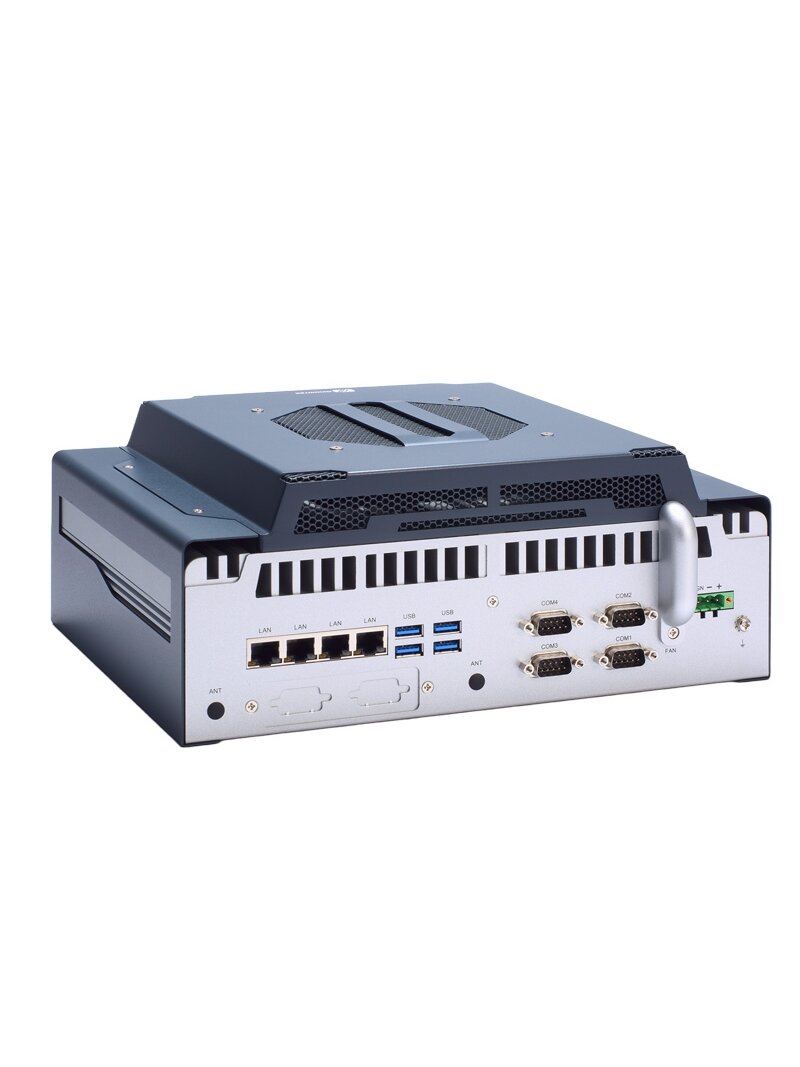

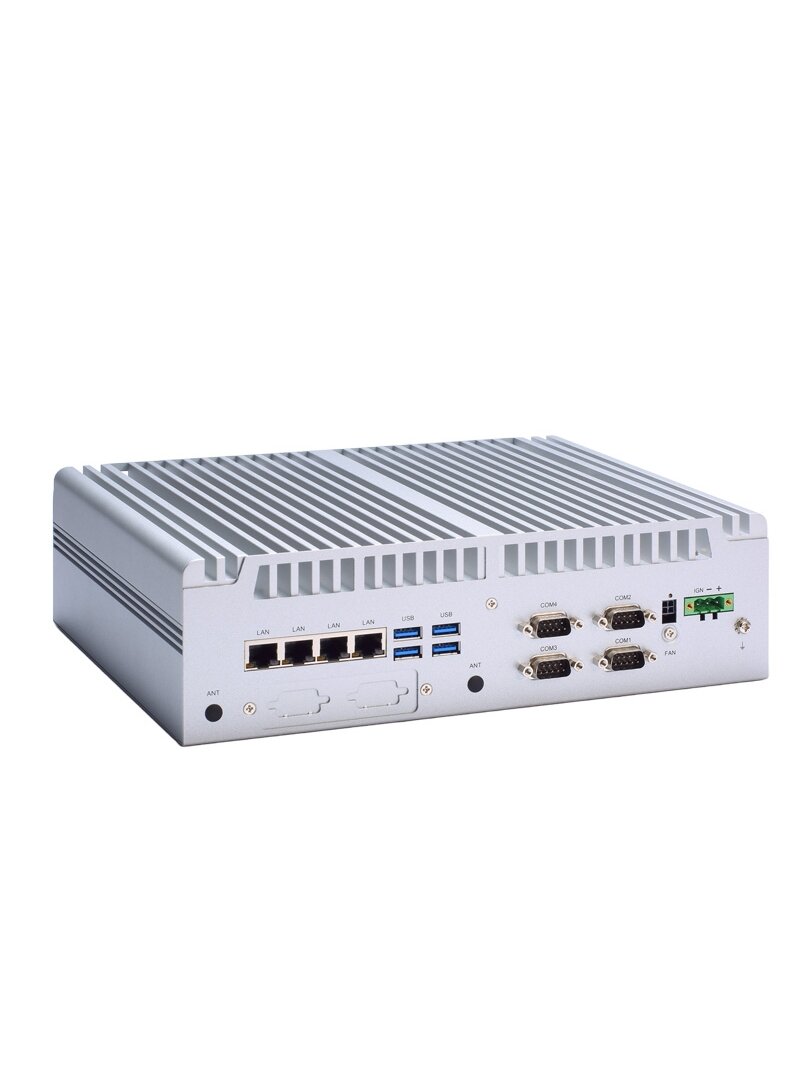

    Axiomtek eBOX671B – Fanless Embedded System with LGA1700 Socket BTL-S/14th/13th/12th Gen Intel Core Processors, Intel R680E

    Code: eBOX671B
    Ordered item
    Order
    eBOX671B – Fanless Embedded System with LGA1700 Socket BTL-S/14th/13th/12th Gen Intel® Core™ Processors, Intel® R680E, 2 HDMI, 1 DisplayPort, 6 USB, 4 LANs, MXM 3.1 Type A, and 9 to 36 VDC
    Manufacturer
    Axiomtek
    Link/PDF
    Datasheet (PDF)
    Made in
    Taiwan
  • • LGA1700 socket BTL-S/14th/13th/12th Gen Intel® Core™ processors
    • Dual DDR5-4800 SO-DIMM, up to 96GB
    • 4 LAN with optional PoE support
    • Dual 2.5" SATA SSD/HDD drive bays with RAID 0 & 1
    • Supports high-speed NVMe storage (M.2 Key M 2280)
    • Supports MXM 3.1 Type A, up to 5 display outputs
    • Wide operating temperature range from -40°C to +65°C
    • Wide range power input from 9 to 36 VDC
    • Supports flexible I/O windows via PCIe Mini Card modules
