  • New item   Axiomtek IMB550 – ATX Motherboard with LGA1851 Socket Intel Core Ultra 9/7/5 Processors, Intel W880

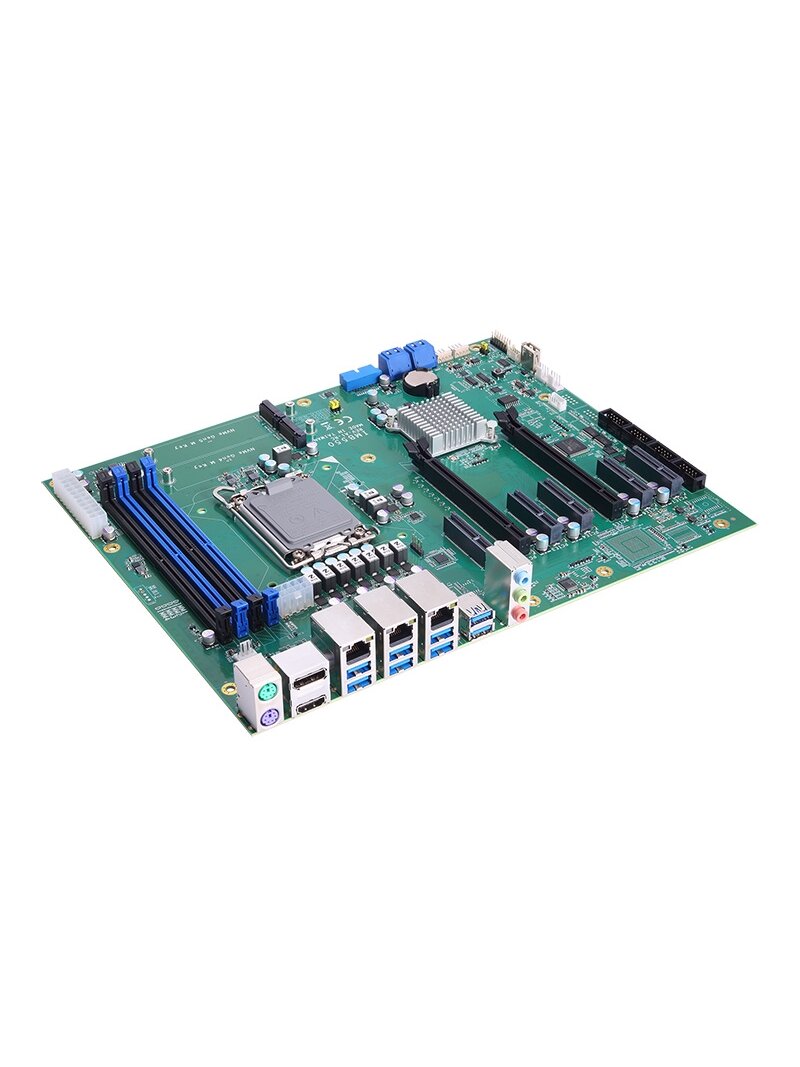

    New item   Axiomtek IMB550 – ATX Motherboard with LGA1851 Socket Intel Core Ultra 9/7/5 Processors, Intel W880 1

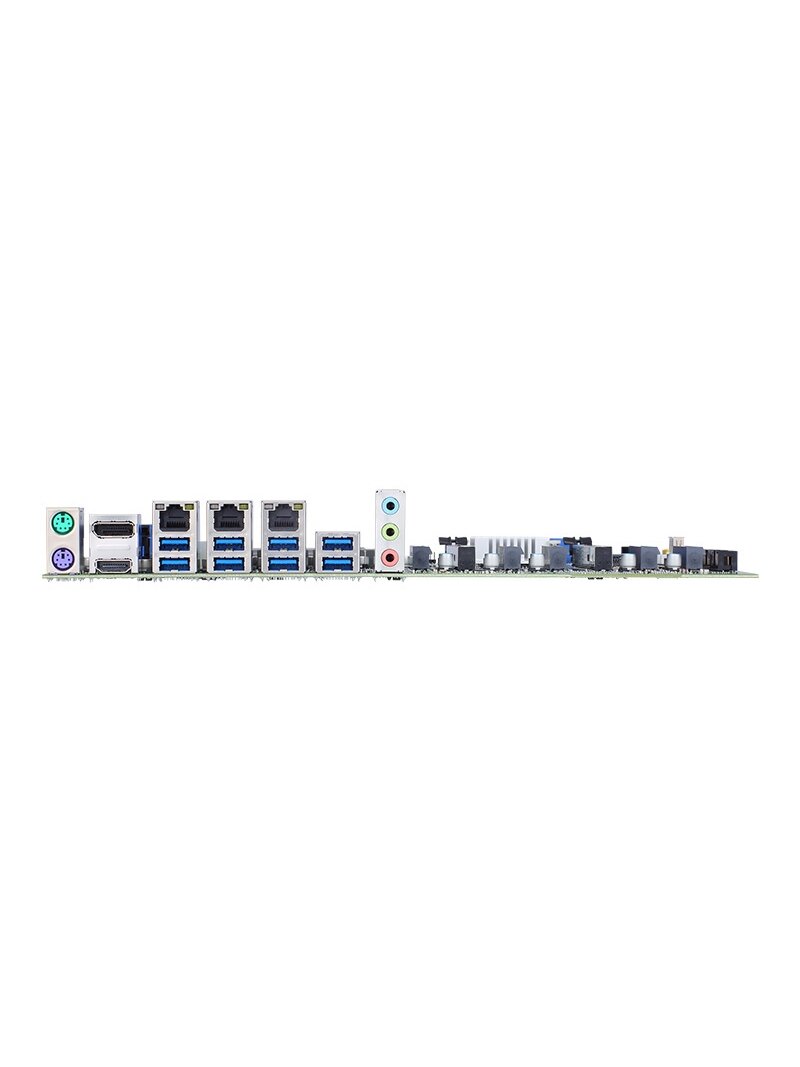

    New item   Axiomtek IMB550 – ATX Motherboard with LGA1851 Socket Intel Core Ultra 9/7/5 Processors, Intel W880 2

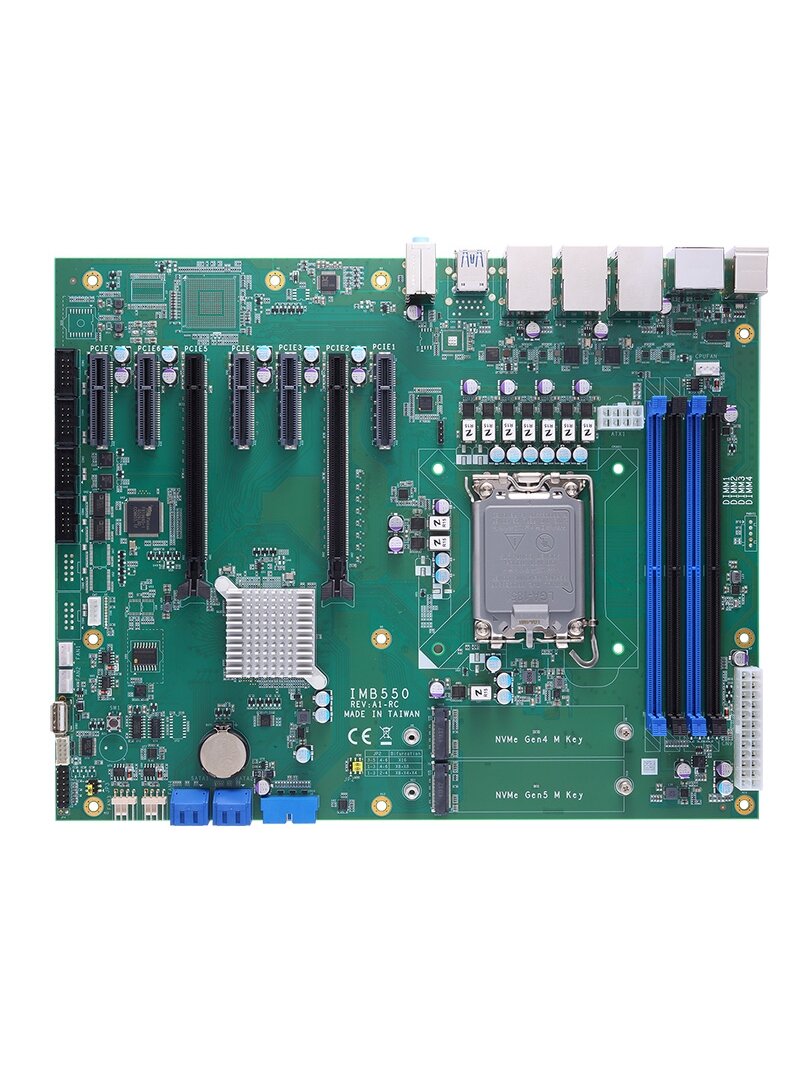

    Axiomtek IMB550 – ATX Motherboard with LGA1851 Socket Intel Core Ultra 9/7/5 Processors, Intel W880

    Code: IMB550
    Ordered item
    Order
    IMB550 – ATX Motherboard with LGA1851 Socket Intel® Core™ Ultra 9/7/5 Processors, Intel® W880, USB 3.2 Gen 2, SATA 3.0, 2.5GbE LAN, DisplayPort++, and HDMI
    Manufacturer
    Axiomtek
    Link/PDF
    Datasheet (PDF)
    Made in
    Taiwan
  • • LGA1851 socket Intel® Core™ Ultra 9/7/5 Processors
    • 4 288-pin DDR5-5600 ECC/non-ECC unbuffered Long-DIMM, up to 192GB
    • Supports DisplayPort++ and HDMI
    • Supports 2 x M.2 Key M 2280
    • Supports 2 PCIe x16 slots with PCIe Gen 5 for GPU cards
    • Supports IPMI 2.0 (option)
    • Optimized CPU socket layout design for airflow of rackmount system
