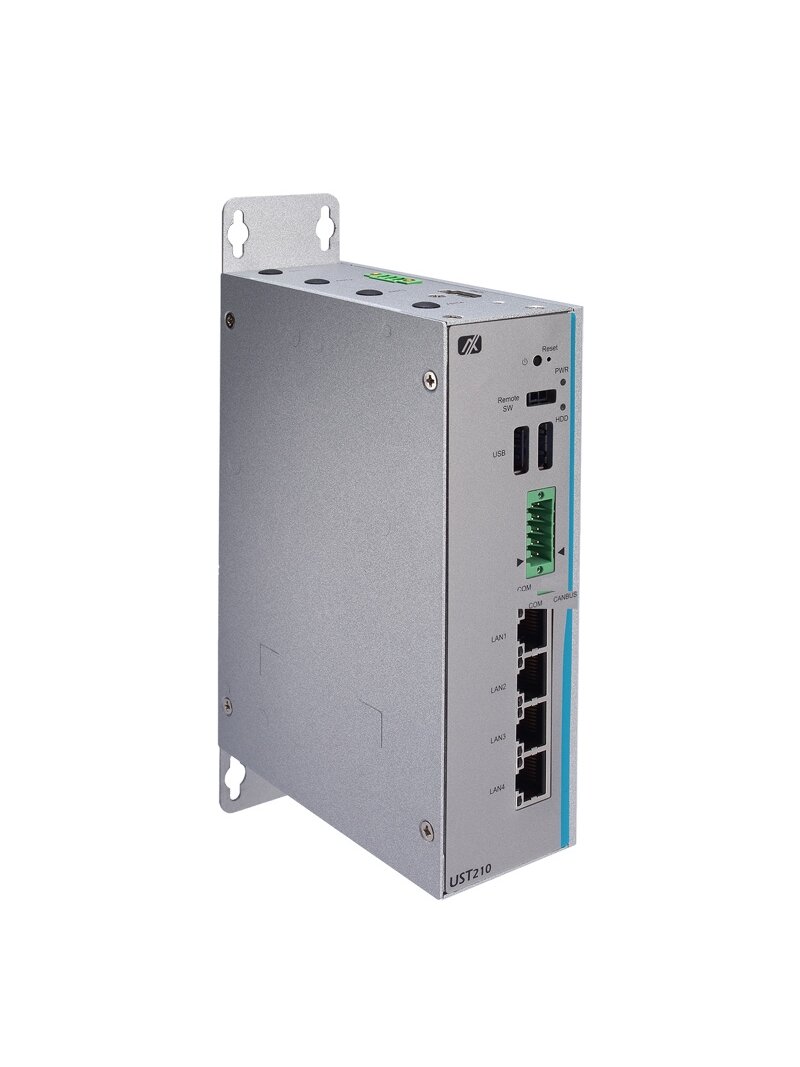

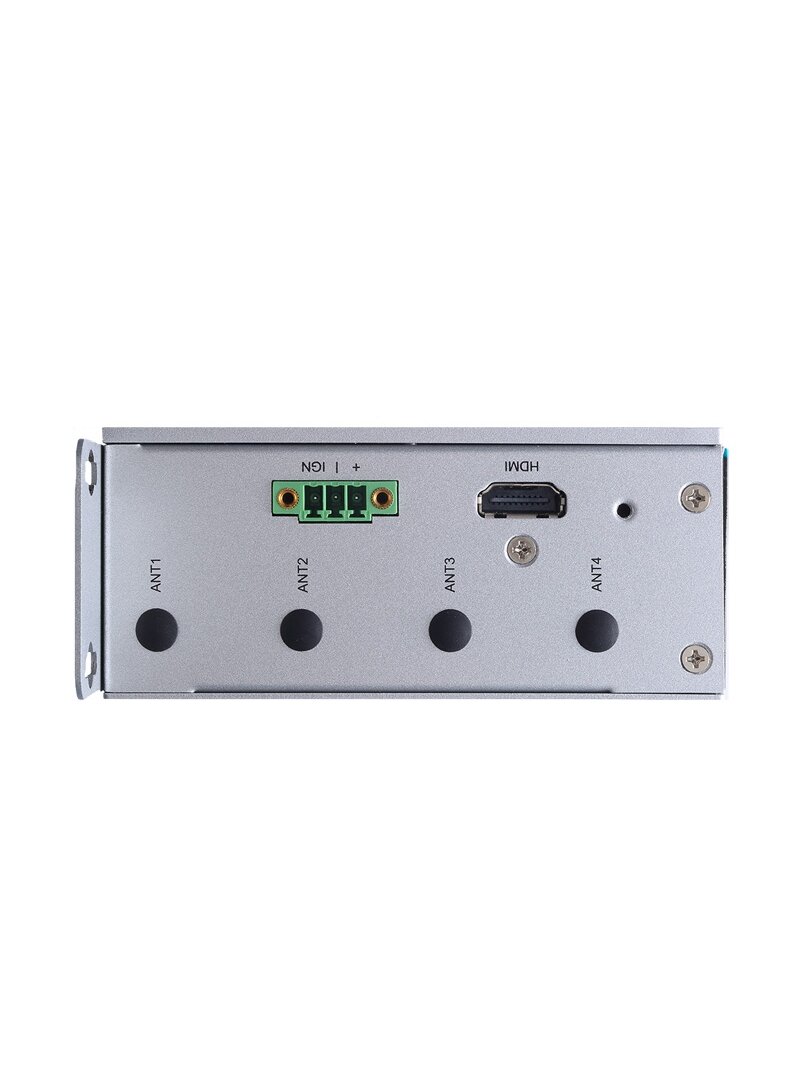

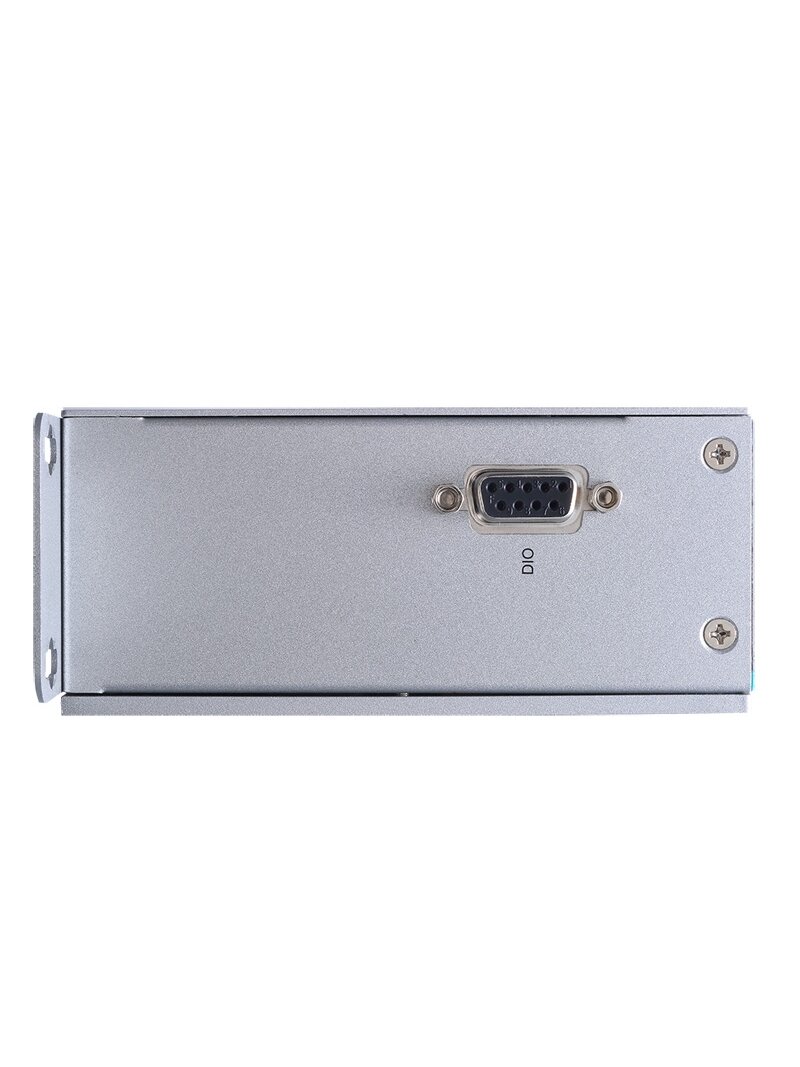

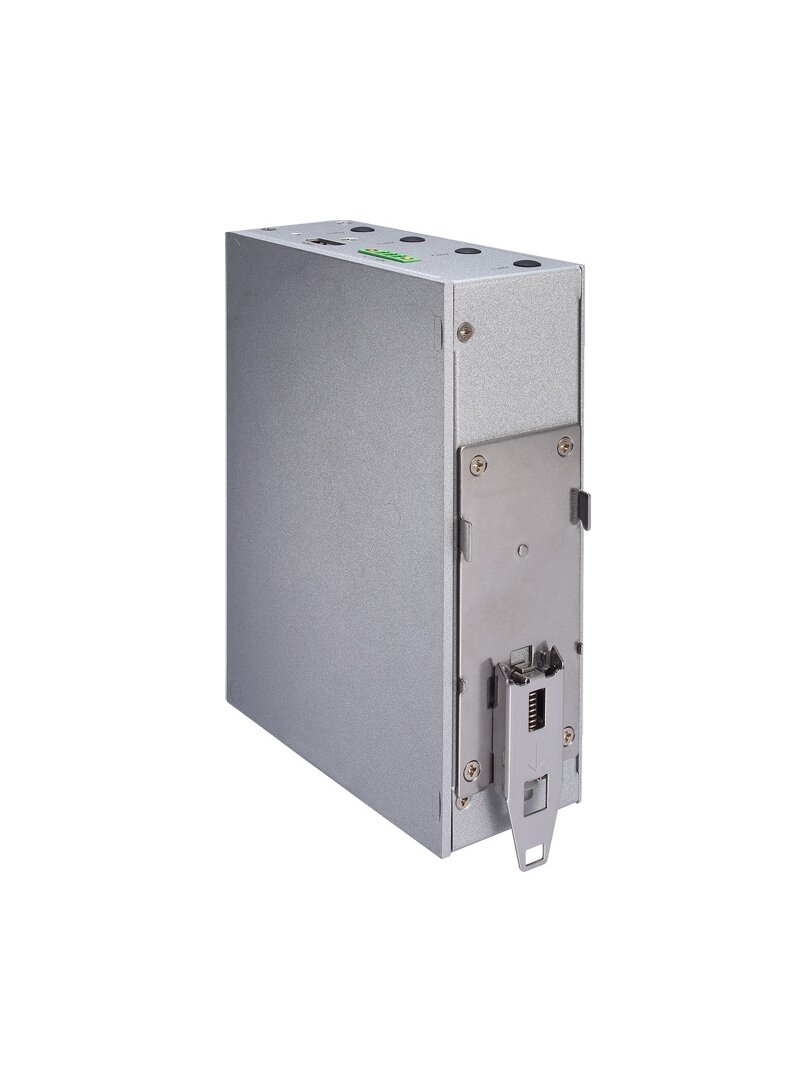

    Axiomtek UST210-83K-FL – Robust and Compact DIN-rail Fanless Embedded System with Intel Atom x5-E3940 Processor

    Code: UST210-83K-FL
    Ordered item
    Order
    UST210-83K-FL – Robust and Compact DIN-rail Fanless Embedded System with Intel Atom® x5-E3940 Processor for In-Vehicle Gateway Applications
    Manufacturer
    Axiomtek
    Link/PDF
    Datasheet (PDF)
    Field of use
    In-Vehicle Gateway Applications
    Made in
    Taiwan
  • • CE, FCC and E-Mark certified
    • Intel Atom® x5-E3940 processor (Apollo Lake-I)
    • Extreme cost-effective with fanless and cableless design
    • Wide operating temperature range from -40°C to +70°C
    • Supports typical 12 and 24V DC in-vehicle power input
    • Smart Ignition for power on/off schedule, vehicle battery protection, and different power modes
    • Supports COM, CAN, USB, and GbE PoE LAN
    • 8-bit programmable DIO for IoT gateway applications
