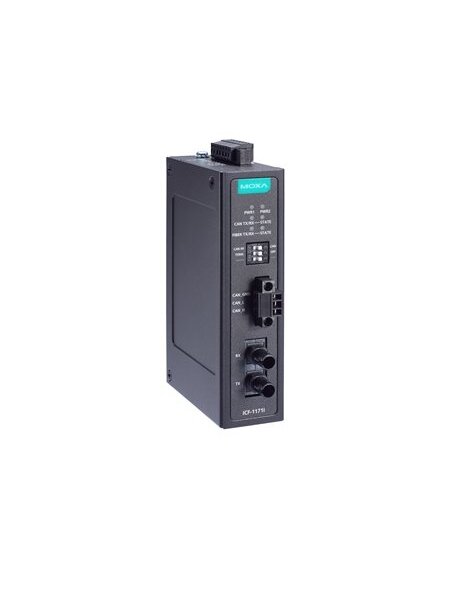

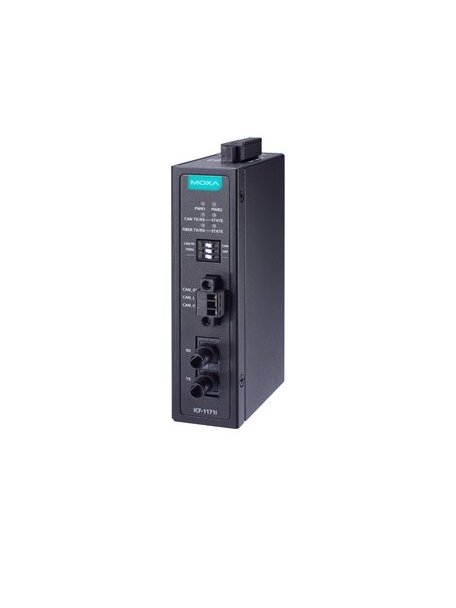

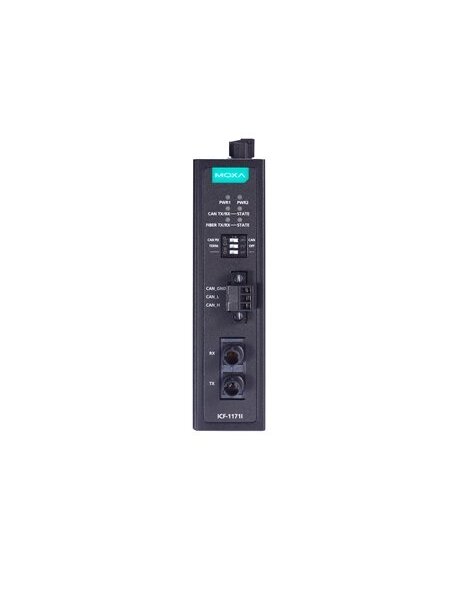

Moxa (ICF-1171I-M-ST) Industrial CAN-to-fiber converter for distance extension, ST multi-mode

• Transmits data for up to 40 km over optical fiber
• Converts CAN signals to fiber and vice versa
• Supports CAN 2.0A, CAN 2.0B, and CAN FD; conforms with the ISO 11898 standard
• CAN 2.0 supports auto-baudrate
• CAN 2.0 arbitration rate up to 1 Mbps
• CAN FD arbitration rate up to 1 Mbps; data rate up to 5 Mbps
• Dual power inputs for redundancy
• Wide-temperature model available for -40 to 75°C environments
• DIP switch for 120-ohm terminal resistance
• Rotary switches for CAN 2.0/CAN FD arbitration and data rate configuration
• LEDs for CAN bus diagnostics, fiber diagnostics, and power input status
