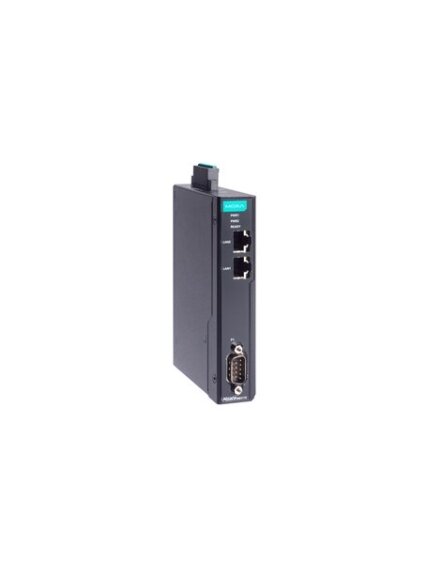

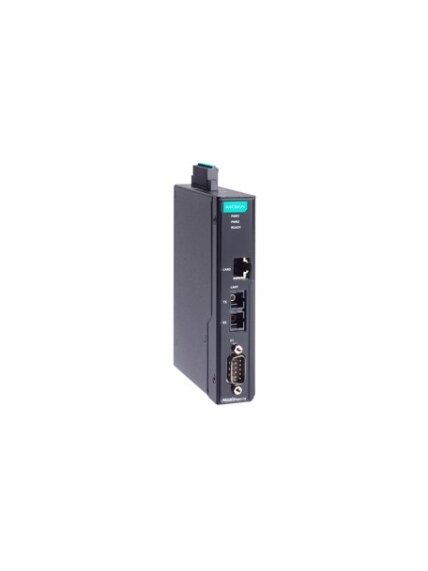

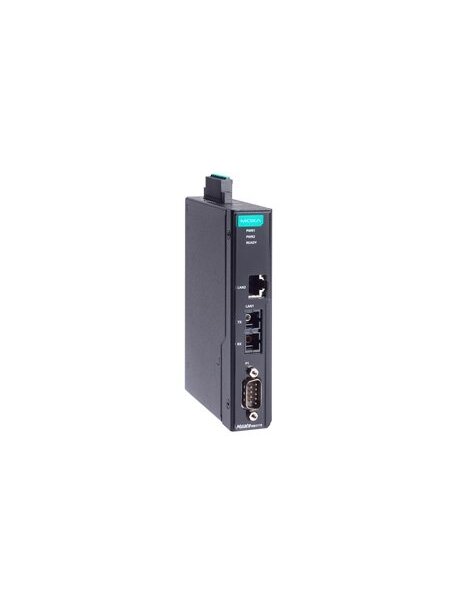

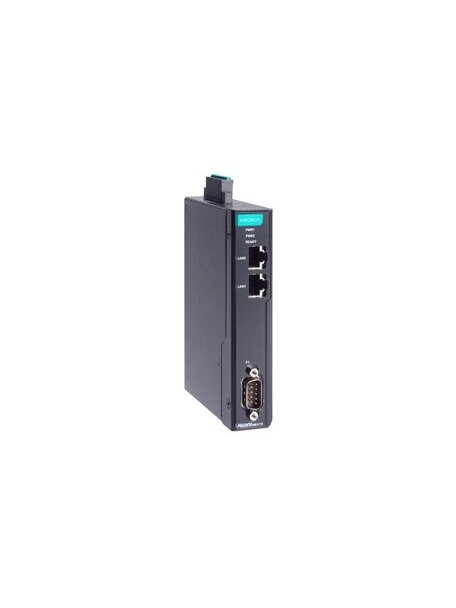

Moxa (MGate MB3170-S-SC-G2) 1-port advanced serial-to-Ethernet Modbus gateway with 1 RJ45 + 1 single-mode SC fiber Ethernet ports, DB9 serial connector, -10 to 60°C operating temperature

• Supports high-performing and low-latency agent mode to actively poll Modbus devices and cache data
• Supports proprietary Modbus and Modbus extensions for various devices
• Supports Auto Device Routing for easy configuration
• Supports route by TCP port or IP address for different system architectures
• Connects up to 32 Modbus TCP clients (MGate can queue 32 Modbus requests for each Modbus client connected)
• Supports Modbus serial client to Modbus serial server communications
• Ethernet cascading or dual subnet for flexible network system design
• 10/100BaseTX (RJ45) or 100BaseFX (single mode or multi-mode with SC/ST connector or SFP option)
• Modbus communication test tools independant of external software
• Intuitive Modbus diagnostics and traffic monitoring for easy troubleshooting
• Serial port with 2 kV isolation protection (for -I models)
• Supports redundant dual DC power inputs and 1 relay output
• Compliance with IEC 62443-4-2 Security Level 2 requirements
• -40 to 75°C wide operating temperature range (-T models)
