  • New item   Moxa (NPort S9650I-16-2HV-SSC-T) 16-port RS-232/422/485 rugged device server, 2 10/100BaseT(X) ports with IEEE 1588v2 support, 88 to 300 VDC or 85 to 264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet single-mode SC connector fiber module
    New item   Moxa (NPort S9650I-16-2HV-SSC-T) 16-port RS-232/422/485 rugged device server, 2 10/100BaseT(X) ports with IEEE 1588v2 support, 88 to 300 VDC or 85 to 264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet single-mode SC connector fiber module 1
    New item   Moxa (NPort S9650I-16-2HV-SSC-T) 16-port RS-232/422/485 rugged device server, 2 10/100BaseT(X) ports with IEEE 1588v2 support, 88 to 300 VDC or 85 to 264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet single-mode SC connector fiber module 2
    New item   Moxa (NPort S9650I-16-2HV-SSC-T) 16-port RS-232/422/485 rugged device server, 2 10/100BaseT(X) ports with IEEE 1588v2 support, 88 to 300 VDC or 85 to 264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet single-mode SC connector fiber module 3

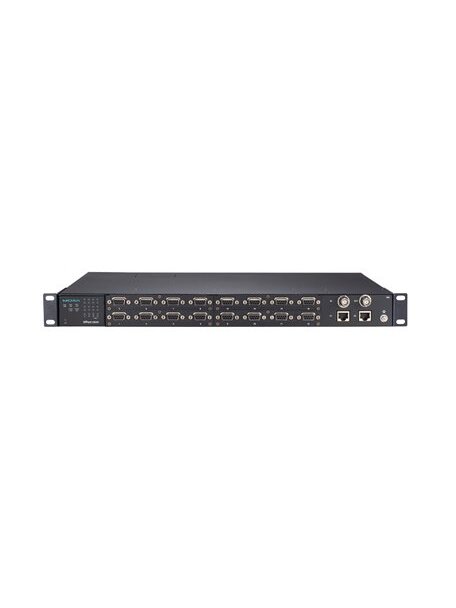

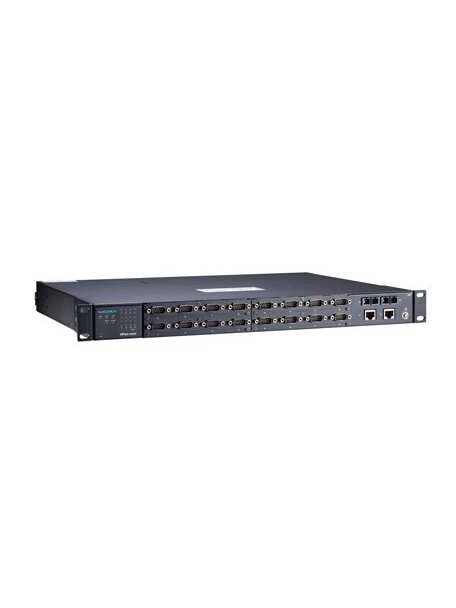

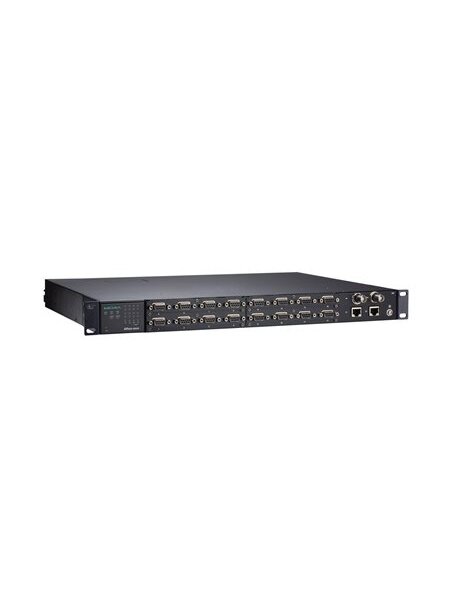

    Moxa (NPort S9650I-16-2HV-SSC-T) 16-port RS-232/422/485 rugged device server, 2 10/100BaseT(X) ports with IEEE 1588v2 support, 88 to 300 VDC or 85 to 264 VAC, -40 to 85°C operating temperature, with 2-port Ethernet single-mode SC connector fiber module

    Code: NPort S9650I-16-2HV-SSC-T
    Ordered item
    Order
    Manufacturer
    Moxa
    Link/PDF
    Download datasheet
    Made in
    Taiwan
  • • Supports up to 4 managed Ethernet switch ports (fiber available with some optional network modules)
    • 8/16-port RS-232/422/485 serial interface
    • Supports DNP3 and Modbus protocols
    • Ethernet redundancy with Turbo Ring/Chain and RSTP/STP supported
    • Real COM/TTY drivers for Windows and Linux
    • IEC 61850-3, IEEE 1613 (power substations) compliant
    • IEEE 1588v2 and IRIG-B time synchronization functions
    • Supports IEC 61850 MMS protocol
    • Security features based on IEC 62443/NERC CIP
    • -40 to 85°C wide operating temperature
