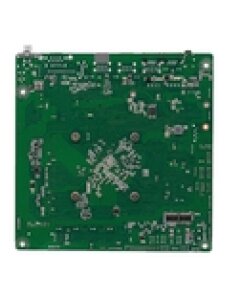

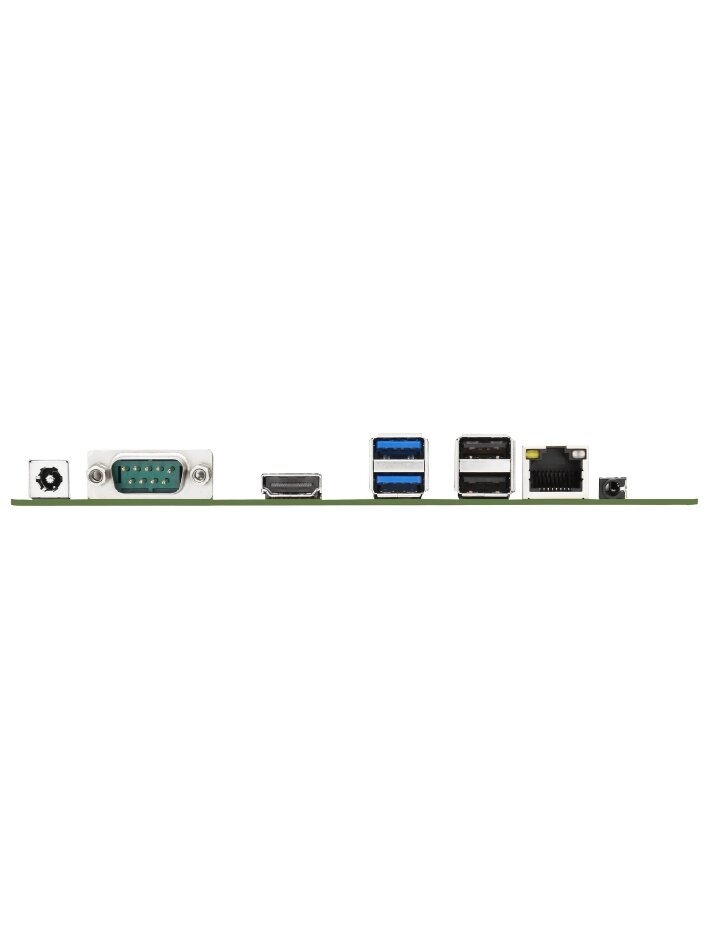

    Technica MF-ALN Industrial Thin Mini-ITX Embedded Motherboard with Intel Alder Lake-N N95/N97/N100 Processor

    Code: MF-ALN
    Ordered item
    Order
    Manufacturer
    Technica House
    Made in
    Taiwan
  • CPU Intel Alder Lake-N N95/N97/N100 Processor
    Chipset SoC integrated
    System Memory Single Channel DDR4-3200 MHz SO-DIMM, up to 16GB
    BIOS AMI
    COM 1 x RS-232
    3 x RS-232 (internal)
    2 x RS-232/485 (internal)
    USB 2 x USB 3.0
    2 x USB 2.0
    6 x USB 2.0 (Internal)
    Ethernet 1 x RJ-45 Giga LAN
    Display 1 x HDMI
    1 x LVDS/eDP (LVDS default)
    Digital I/O Programmable support 4 in/4 out
    Audio 1 x Line-out + Mic
    Storage 1 x SATAIII + 1 x M.2 Key-M (NVMe/SATA auto detect)
    Expansion 1 x M.2 Key-E Slot (PCIE + USB 2.0, Support Wifi + BT, 2230)
    Others 1 x Cash Drawer Wafer, 1 x Front Panel Header, 1 x System Fan Wafer,
    1 x CPU Fan Wafer, 1 x Case Open Header, 1 x CMOS Clear Jumper,
    1 x AT/ATX select Jumper
    Battery -
    Power Requirements DC-in 12V
    Watchdog Timer 1 - 255 steps by software program
    Hardware Monitoring -
    Operating Temperature -20°C to +70°C
    Relative Humidity 10% to 95% relative humidity, non-condensing
    Dimensions 170 x 170 mm
    Board Thickness -
    Certifications CE, FCC
