  • New item   Technica MF-ALP Industrial Thin Mini-ITX Embedded Motherboard with Intel Alder Lake-P i3-1215U/i5-1235U/i7-1255U Processor
    New item   Technica MF-ALP Industrial Thin Mini-ITX Embedded Motherboard with Intel Alder Lake-P i3-1215U/i5-1235U/i7-1255U Processor 1
    New item   Technica MF-ALP Industrial Thin Mini-ITX Embedded Motherboard with Intel Alder Lake-P i3-1215U/i5-1235U/i7-1255U Processor 2

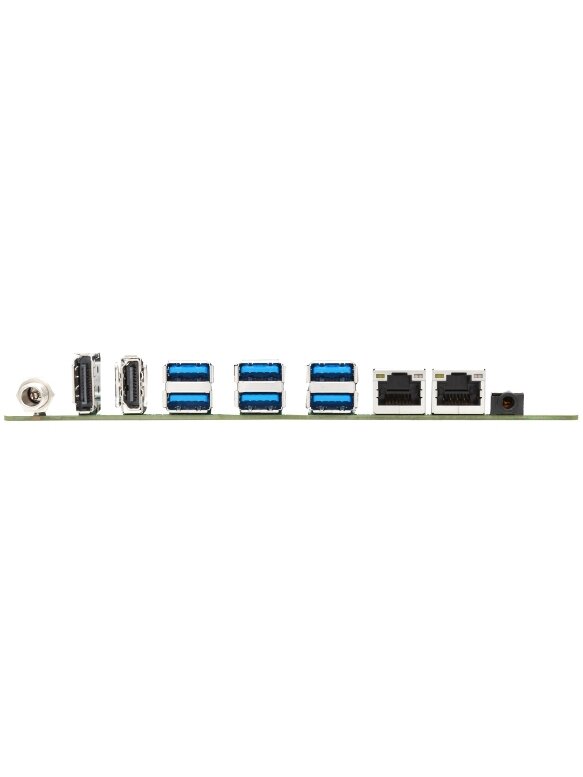

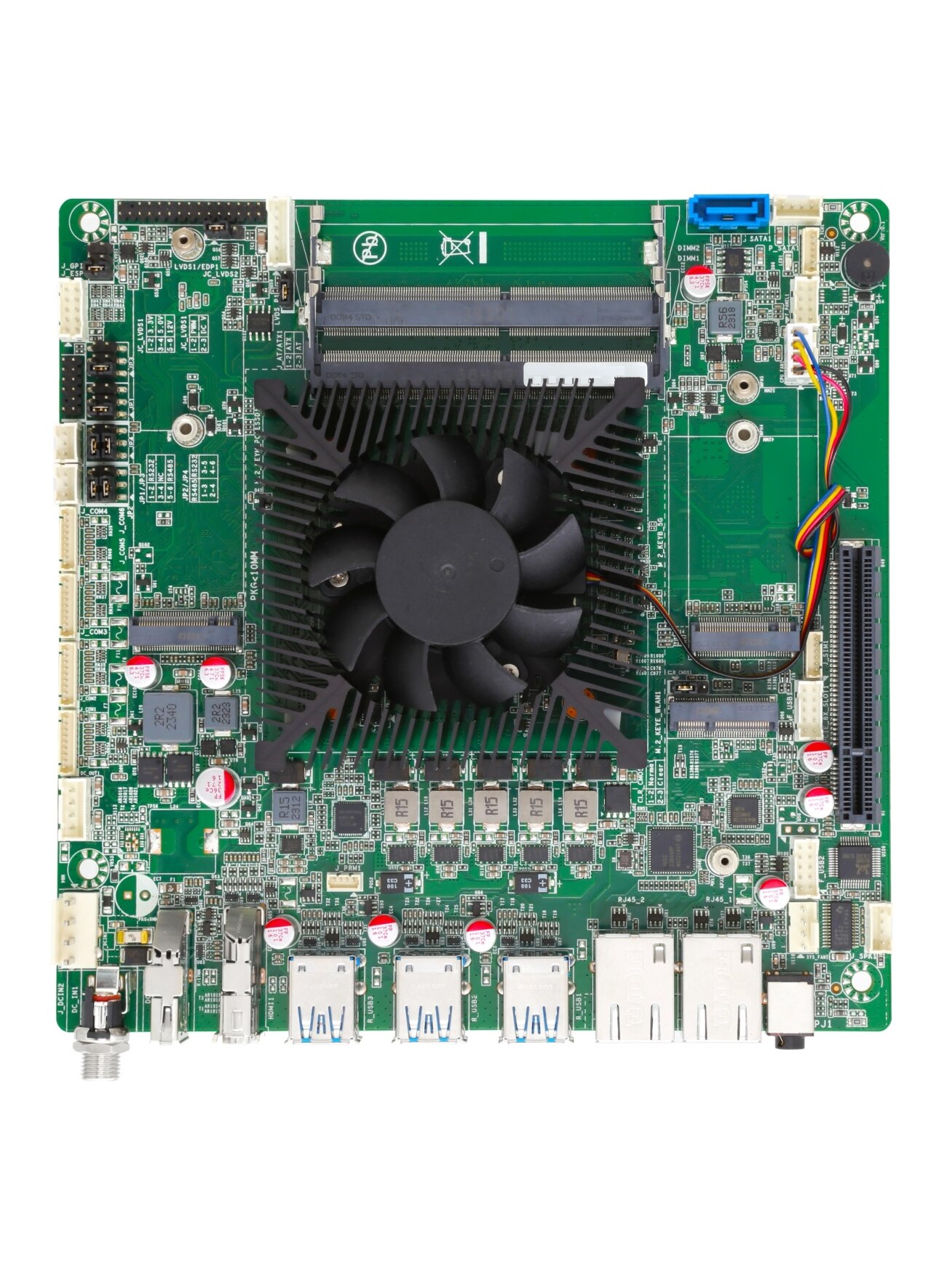

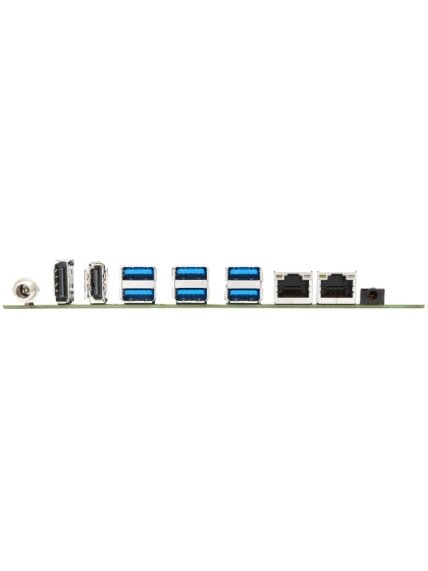

    Technica MF-ALP Industrial Thin Mini-ITX Embedded Motherboard with Intel Alder Lake-P i3-1215U/i5-1235U/i7-1255U Processor

    Code: MF-ALP
    Ordered item
    Order
    Manufacturer
    Technica House
    Made in
    Taiwan
  • CPU Intel Alder Lake-P i3-1215U/i5-1235U/i7-1255U Processor, TDP is 15W
    Chipset SoC integrated
    System Memory Dual Channel DDR4-3200 MHz SO-DIMM, up to 64GB
    BIOS AMI
    COM 4 x RS-232, 2 x RS-232/485 (internal)
    USB 6 x USB 3.0
    2 x USB 2.0 Wafer
    Ethernet 2 x RJ-45, Intel Giga LAN
    Display 1 x HDMI
    1 x DP
    1 x LVDS/eDP (LVDS default)
    Digital I/O Programmable support 4 in/4 out
    Audio 1 x Line-out + Mic
    Storage 1 x SATAIII + 1 x M.2 Key-M (NVMe/SATA auto detect)
    Expansion 1 x PCIe x8 slot (PCIe x4 signal)
    1 x M.2 Key-B slot (Support 4G/5G, 2242/3052)
    1 x M.2 Key-E slot (Support Wifi/BT, 2230)
    Others 1 x ESPI Header, 1 x Front Panel Wafer, 1 x CPU FAN Wafer,
    1 x System FAN Wafer, 1 x Power Debug Wafer, 1 x AT/ATX Jumper, 1 x CMOS Clear Jumper, 1 x CMOS Battery Wafer
    Battery -
    Power Requirements DC-in 12/24V, optional 24V
    Watchdog Timer 1 - 255 steps by software program
    Hardware Monitoring -
    Operating Temperature -20°C to +70°C
    Relative Humidity 10% to 95% relative humidity, non-condensing
    Dimensions 170 x 170 mm
    Board Thickness -
    Certifications CE, FCC
