  • New item   Technica PMPPC1500-i5-7200U-SS 15″ Stainless Steel front bezel Panel mount Touch Panel PC with i5-7200U processor with Panel mount bracket

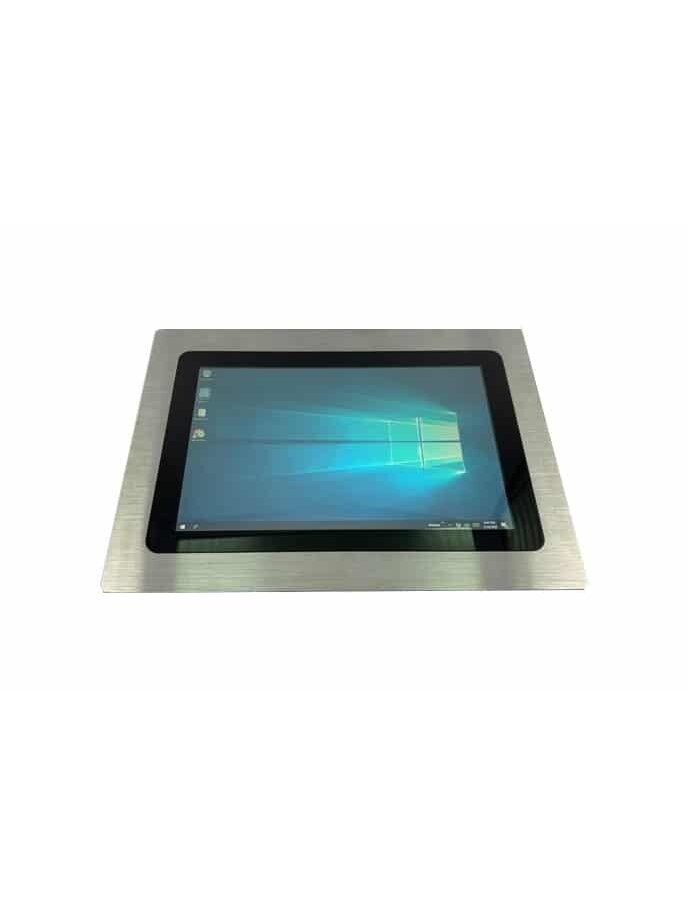

    Technica PMPPC1500-i5-7200U-SS 15″ Stainless Steel front bezel Panel mount Touch Panel PC with i5-7200U processor with Panel mount bracket

    Code: PMPPC1500-i5-7200U-SS
    Ordered item
    Order
    Manufacturer
    Technica House
    Made in
    Taiwan
  • LCD Panel 15"
    CPU Intel® Core i5-7200U Dual-core, clock speed 2.50 GHz, TDP 15W
    Chipset CPU Integrated, TPM 2.0 support
    System Memory 1x DDR3L 1333/1600MHz, SO-DIMM up to 8GB
    BIOS AMI
    COM 4 x RS-232
    USB

    2 x USB 3.0
    4 x USB 2.0

    Ethernet 2 x LAN
    Display

    1 x VGA
    1 x HDMI
    Audio Speaker Header x 1 (Optional)
    Storage 1 x 2.5" SATA HDD or SSD or mSATA module
    Expansion

    2 x Mini PCI-E Slot (1 x slot co-lay with mSATA) (For Wifi module with Antenna)
    MSR 2 tracks or 3 tracks (Optional)
    Others
    Touch Screen Resistive Touch or PCAP Touch (Optional)
    Front Bezel Stainless Steel front bezel (SUS304 or SUS316)
    Power Supply

    DCIN Input : 9V~28V, Connector types: 1 x Round Type DC Jack ,or 1 x PHOENIX Connector
    84W Power adapter (Optional)
    Power Consumption
    Watchdog Timer With Watchdog Timer
    Operating Temperature -20°C ~ 60°C
    Relative Humidity 5% ~ 95% RH non-condensing
    Vibration
    Dimensions 403.5 x 326.53 x 49.5 (mm), suggested cut out is 379 x 302 mm
    Weight 3.5 Kg
    Certifications CE/FCC
    EOS Support Win7, Win8, Win10IoT, Linux
    Mounting VESA, Panel Mounting
