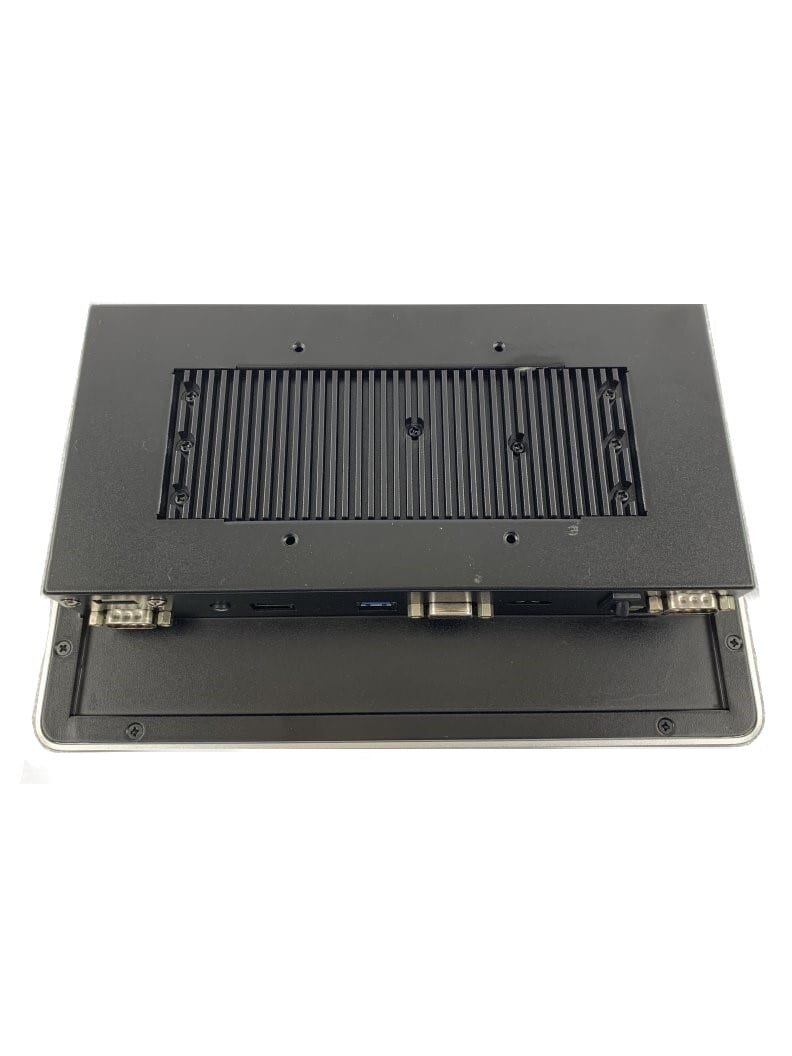

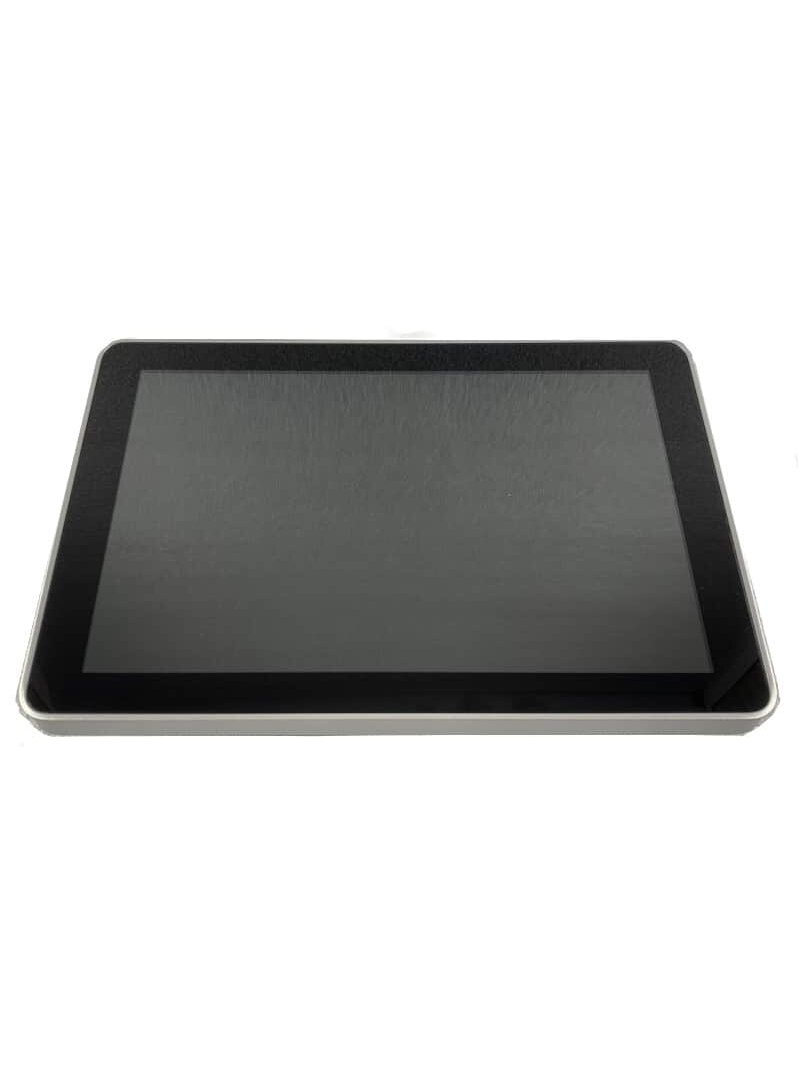

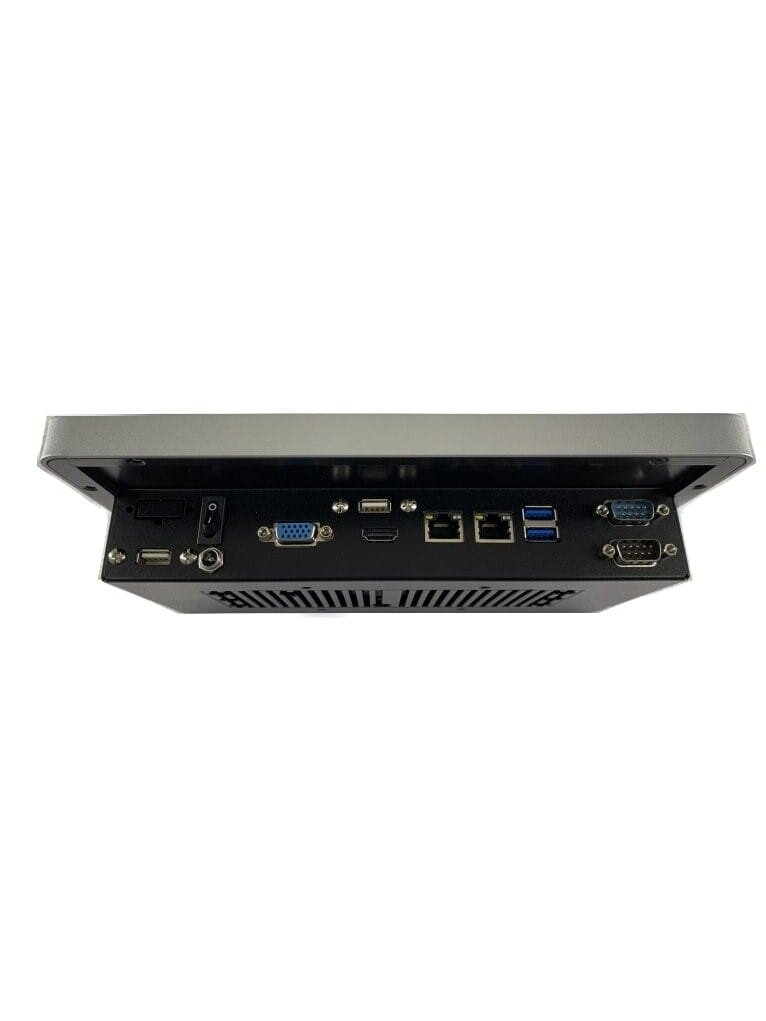

  • New item   Technica PPC1010-J1900 10.1″ Touch Panel PC, Ultra slim Aluminum Front Bezel, True-flat PCAP touch, Light and Fanless with J1900 processor
    New item   Technica PPC1010-J1900 10.1″ Touch Panel PC, Ultra slim Aluminum Front Bezel, True-flat PCAP touch, Light and Fanless with J1900 processor 1
    New item   Technica PPC1010-J1900 10.1″ Touch Panel PC, Ultra slim Aluminum Front Bezel, True-flat PCAP touch, Light and Fanless with J1900 processor 2

    Technica PPC1010-J1900 10.1″ Touch Panel PC, Ultra slim Aluminum Front Bezel, True-flat PCAP touch, Light and Fanless with J1900 processor

    Code: PPC1010-J1900
    Ordered item
    Order
    Manufacturer
    Technica House
    Made in
    Taiwan
  • LCD Panel 10.1" (16:10 ratio)
    CPU Intel Celeron Bay Trail J1900 Quad core 10W processor
    Chipset CPU Integrated
    System Memory 1x DDR3L 1333MHz SO-DIMM up to 8GB
    BIOS AMI
    COM 2 x RS232 (Optional 4 x RS22)
    USB

    2 x USB3.0
    2 x USB2.0

    Ethernet 2 x LAN
    Display

    1 x VGA
    1 x HDMI
    Audio Speaker Header x 1 (Optional)
    Storage 1 x 2.5” SATA HDD or SSD or mSATA module
    Expansion

    2 x Mini PCI-E Slot (1 x slot co-lay with mSATA) (For Wifi module with Antenna)
    Digital I/O 8 in/ 8 out (Optional)
    Others -
    Touch Screen True-Flat PCAP Touch or Resistive Touch (Optional)
    Front Bezel Ultra Slim Aluminum Front Bezel
    Power Supply

    DCIN Input : 9V~28V, Connector types: 1 x Round Type DC Jack ,or 1 x Phoenix Connector
    84W Power adapter (Optional)
    Power Consumption -
    Watchdog Timer With Watchdog Timer
    Operating Temperature 0°C ~ 60°C
    Relative Humidity 5% ~ 95% RH non-condensing
    Vibration -
    Dimensions 257.2 x 170.9 x 51 (mm)
    Weight 2.0 Kg
    Certifications CE/FCC
    EOS Support Win7, Win8, Win10IoT, Linux
    Mounting VESA mount 75 x 75 mm
