  • New item   Technica PPC1040-ALN-IP69K 10.4” IP69K/IP68 Full Stainless Steel, PCAP Touch, Fanless Panel PC, Intel Alderlake-N N95/N97/N100/i3-N305
    New item   Technica PPC1040-ALN-IP69K 10.4” IP69K/IP68 Full Stainless Steel, PCAP Touch, Fanless Panel PC, Intel Alderlake-N N95/N97/N100/i3-N305 1
    New item   Technica PPC1040-ALN-IP69K 10.4” IP69K/IP68 Full Stainless Steel, PCAP Touch, Fanless Panel PC, Intel Alderlake-N N95/N97/N100/i3-N305 2

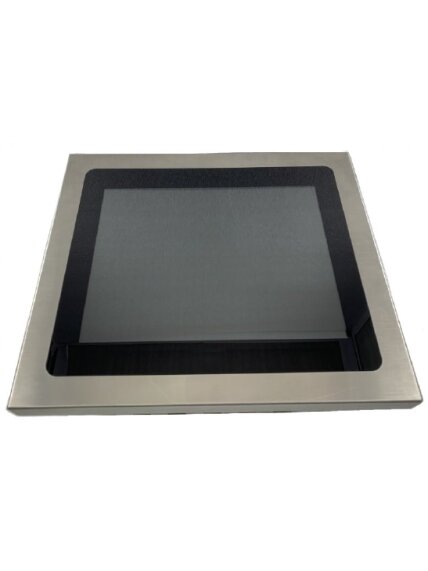

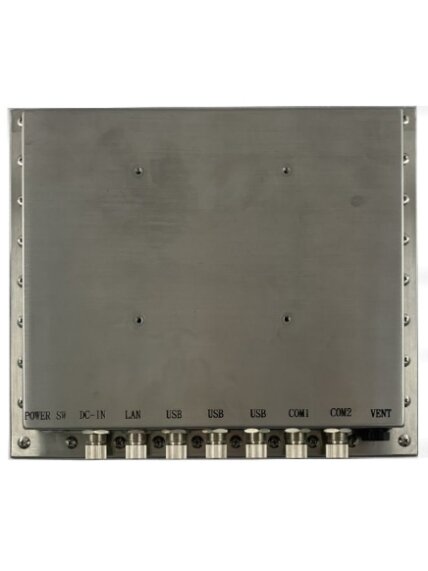

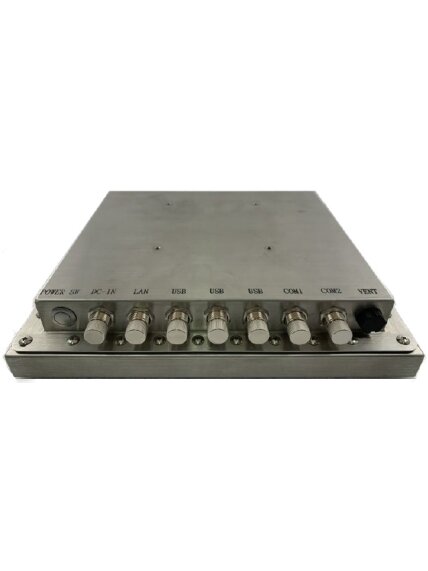

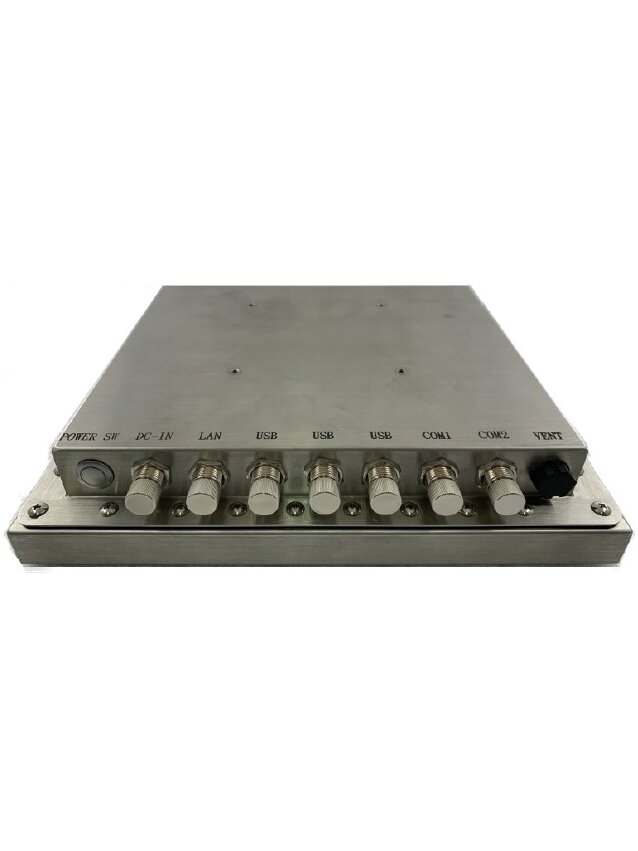

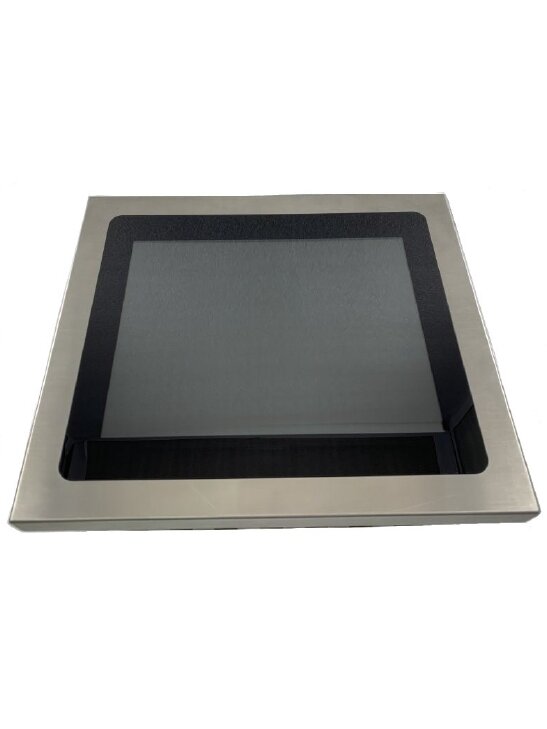

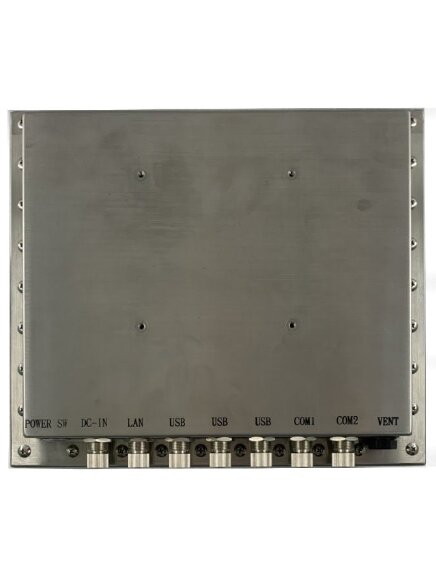

    Technica PPC1040-ALN-IP69K 10.4” IP69K/IP68 Full Stainless Steel, PCAP Touch, Fanless Panel PC, Intel Alderlake-N N95/N97/N100/i3-N305

    Code: PPC1040-ALN-IP69K
    Ordered item
    Order
    Manufacturer
    Technica House
    Certificate
    IP69K/IP68
    Field of use
    Full Water-Proof
    Made in
    Taiwan
    LCD Panel 10.4"
    CPU Intel Alder Lake-N N97 CPU, 4E-Core, up to 3.60 GHz, TDP 12W, (N95/N100/i3-N305 CPU Optional)
    Chipset SoC integrated
    System Memory DDR4-3200 MHz, 1 x non-ECC SO-DIMM, up to 16GB
    BIOS AMI
    COM 2 x RS-232 with 2 meter long M12 type water-proof IP69K cable (max.)
    USB

    6 x USB 2.0 with 2 meter long M12 type water-proof IP69K cable (max.), USB 3.0 2 meter M12 IP69K cable (Optional)
    Ethernet 2 x LAN with 2 meter long M12 type water-proof IP69K cable (max.)
    Display

    -
    Audio -
    Storage 1 x SATA 3.0, 1 x NVMe/SATA M.2 SSD
    Expansion

    1 x M.2 (Key-M, 2280, PCIe x1 NVMe/ SATA) Auto Detect
    1 x M.2 (Key-E, 2230, PCIE + USB 2.0, support Wifi + BT module)
    1 x M.2 (Key-B, 2242/3052, USB 3.0 + USB 2.0, support 5G/4G)
    1 x SIM Card Wafer

    Others 1x Vent M12 connector (for air pressure release)
    Touch Screen True-Flat PCAP Touch or Resistive Touch (Optional), Anti-UV, Anti-IR protection, Optical Bonding (Optional)
    Front Bezel Full IP69K/IP68 Stainless steel housing
    Power Supply

    1 x DC-12/19/24V Input port with 2 meter long M12 type water-proof IP69K cable with Power adapter included
    Support 9-36VDC-IN wide range (Optional)
    Power Consumption -
    Watchdog Timer Watch dog timer support
    Operating Temperature ‐20°C~ +60°C
    Relative Humidity 10%~90% (non‐condensing)
    Vibration -
    Dimensions 300 x 257 x 58 mm
    Weight 5.5 Kg
    Certifications CE/FCC
    EOS Support Windows 10, Windows 11, Linux
    Mounting VESA mounting supportd (75 x 75 or 100 x 100 mm)
