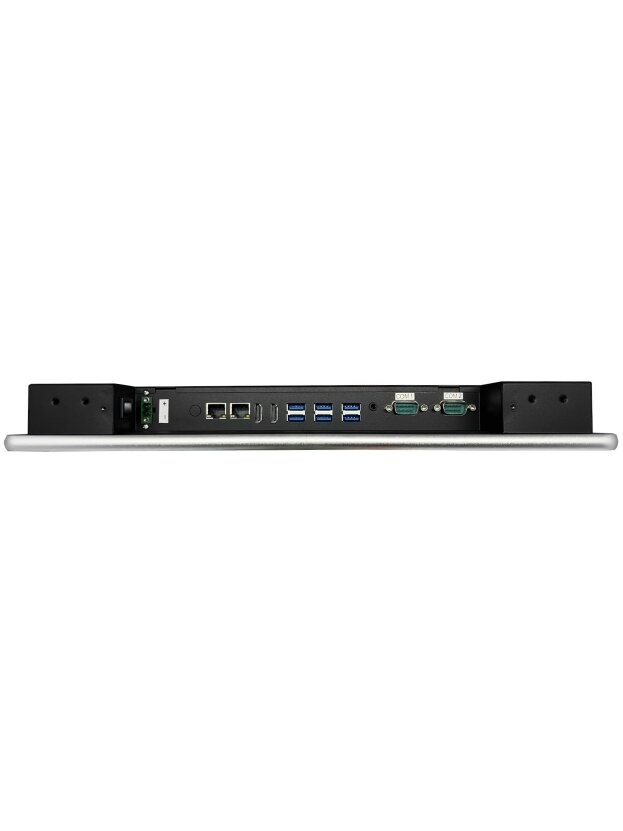

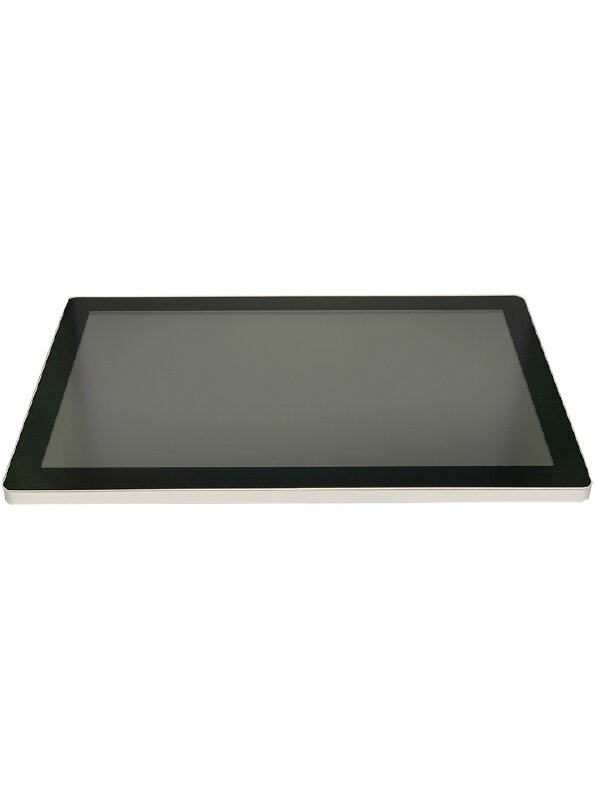

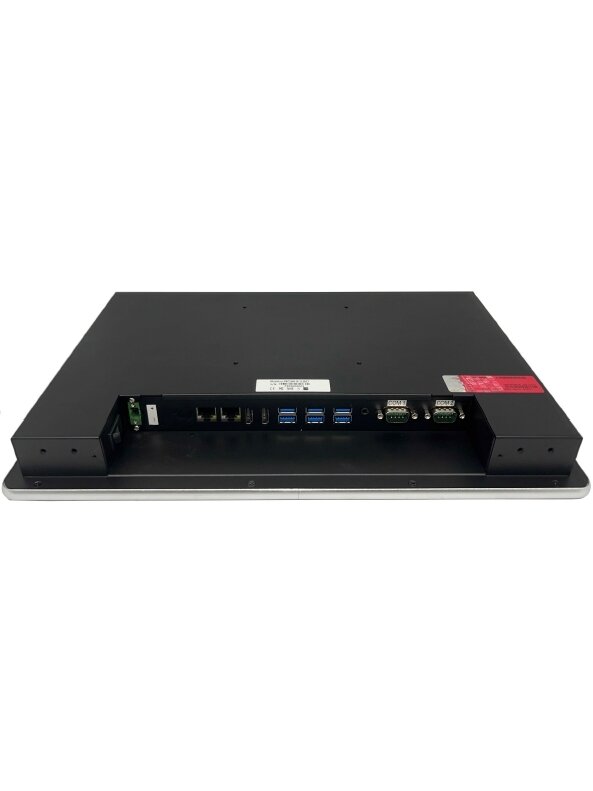

  • New item   Technica PPC1560-J6412 15.6″ Industrial grade Touch Panel PC, Ultra slim Aluminum Front Bezel, True-flat PCAP Touch, Light and Fanless with J6412 processor
    New item   Technica PPC1560-J6412 15.6″ Industrial grade Touch Panel PC, Ultra slim Aluminum Front Bezel, True-flat PCAP Touch, Light and Fanless with J6412 processor 1
    New item   Technica PPC1560-J6412 15.6″ Industrial grade Touch Panel PC, Ultra slim Aluminum Front Bezel, True-flat PCAP Touch, Light and Fanless with J6412 processor 2

    Technica PPC1560-J6412 15.6″ Industrial grade Touch Panel PC, Ultra slim Aluminum Front Bezel, True-flat PCAP Touch, Light and Fanless with J6412 processor

    Code: PPC1560-J6412
    Ordered item
    Order
    Manufacturer
    Technica House
    Made in
    Taiwan
  • LCD Panel 15.6"
    CPU Intel Celeron J6412 CPU, Quad-Core, up to 2.6 GHz, TDP 10W
    Chipset CPU Integrated
    System Memory DDR4-2666/2933/3200, 1 x SO-DIMM, up to 32GB
    BIOS AMI
    COM 1 x RS-232/485, 1 x RS-232
    USB

    3 x USB 3.0, 3 x USB 2.0
    Ethernet 2 x Intel Giga LAN
    Display

    2 x HDMI
    Audio 2 x Stereo speaker (Optional)
    Storage 1 x SATA 3.0, 1 x NVMe M.2
    Expansion

    1 x M.2 (Key-M, 2280, PCIe x2 NVMe/ SATA) NVMe is default
    1 x M.2 (Key-B, 3052, PCIE/USB 3.0 + USB 2.0) USB 3.0 is default
    1 x Mini-PCIe (PCIe + USB 2.0/ mSATA) PCIe + USB 2.0 is default
    Others -
    Touch Screen True-Flat PCAP Touch or Resistive Touch (Optional), Anti-UV, Anti-IR protection, Optical Bonding (Optional)
    Front Bezel Ultra Slim Aluminum Front Bezel
    Power Supply

    DCIN Input: 12V with lockable Power adapter
    Support 9-36V DC-IN 3-pin phoenix connector (Optional)
    Power Consumption -
    Watchdog Timer With Watchdog Timer
    Operating Temperature -20°C ~ 60°C
    Relative Humidity 5% ~ 95% RH non-condensing
    Vibration -
    Dimensions 396.8 x 247.1 x 42 mm, suggested cut out is 372.4 x 222.7 mm
    Weight 2.5 Kg
    Certifications CE/FCC
    EOS Support Windows 10, Windows 11, Linux
    Mounting VESA Mount, Panel Mount with Panel Mount bracket (Optional)
