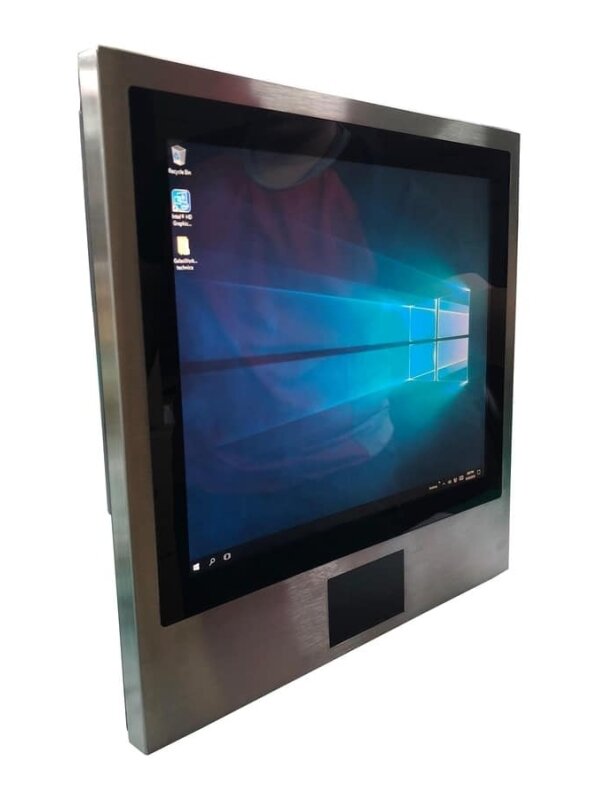

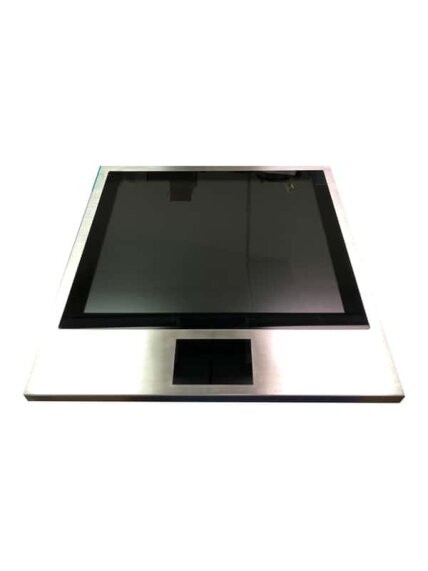

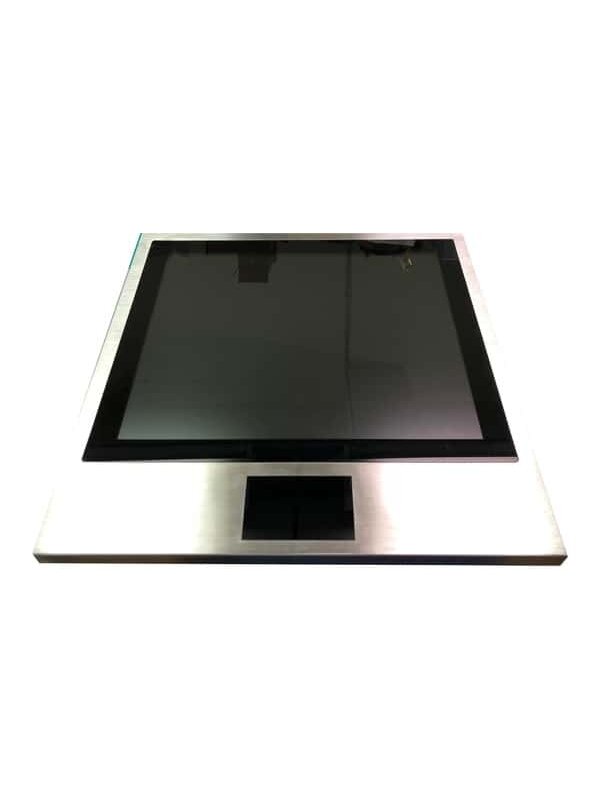

Technica PPC1700-i5-7200U-IP69K-RFID 17” IP69K Full Stainless Steel, PCAP Touch, Fanless Panel PC, Intel i5-7200U Processor support RFID function
Code: PPC1700-i5-7200U-IP69K-RFIDOrdered item-

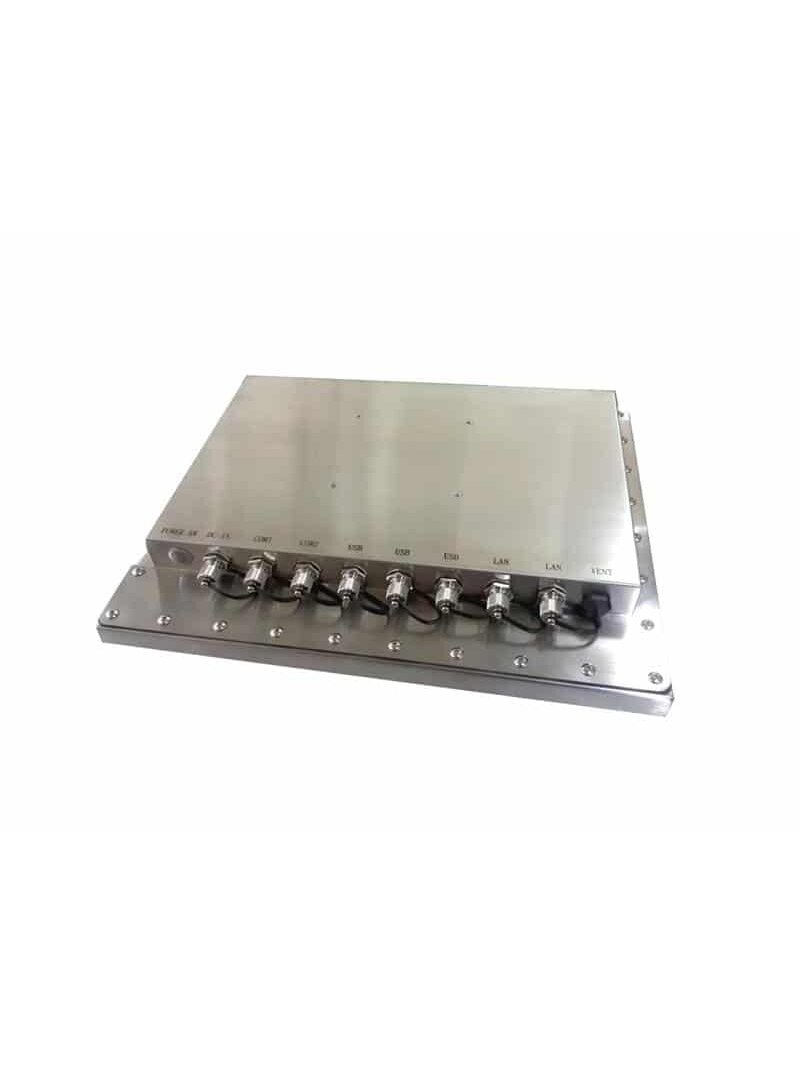

LCD Panel 17" (4:3 ratio) CPU Intel® Core i5-7200U Dual-core, clock speed 2.50 GHz, TDP 15W Chipset CPU Integrated, TPM 2.0 support System Memory 1x DDR3L 1333/1600MHz, SO-DIMM up to 8GB BIOS AMI COM 2 x RS232 (M12 type water-proof connector) with 2 meter long IP69K cables included USB 6 x USB 2.0 (M12 type water-proof connector) with 2 meter long IP69K cables included
Ethernet 2 x LAN (M12 type water-proof connector) with 2 meter long IP69K cables included Display -
Audio - Storage 2.5" HDD/SSD, mSATA / SATA DOM (Disk On Module) Expansion Support 125 KHz & 13.56 MHz RFID (Optional)
Others 1x Vent M12 connector (for air pressure release) Touch Screen True flat PCAP Touch or Resistive Touch Front Bezel Full IP69K/IP68 Stainless steel housing Power Supply 1x DC‐12V input port with 2 meter long IP69K cable with 84 watts power adapter included
Power Consumption - Watchdog Timer Watch dog timer support Operating Temperature ‐20°C~ +60°C (‐68°F~ +140°F) Relative Humidity 10%~90% (non‐condensing) Vibration - Dimensions 400 x 325 x 58 mm Weight 6.5 Kg Certifications CE/FCC EOS Support Win XP / 7 / 8 /10 Mounting VESA mounting supported (75 x 75 or 100 x 100 mm)
-
