  • New item   Technica PPC1900-N97 19″ Industrial grade Touch Panel PC, Ultra slim Aluminum Front Bezel, True-flat PCAP Touch, Light and Fanless with Alder lake-N N97 processor
    New item   Technica PPC1900-N97 19″ Industrial grade Touch Panel PC, Ultra slim Aluminum Front Bezel, True-flat PCAP Touch, Light and Fanless with Alder lake-N N97 processor 1
    New item   Technica PPC1900-N97 19″ Industrial grade Touch Panel PC, Ultra slim Aluminum Front Bezel, True-flat PCAP Touch, Light and Fanless with Alder lake-N N97 processor 2

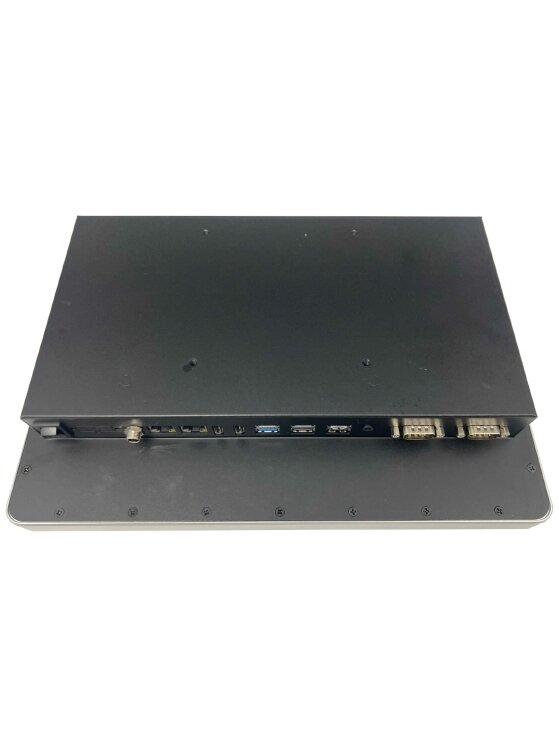

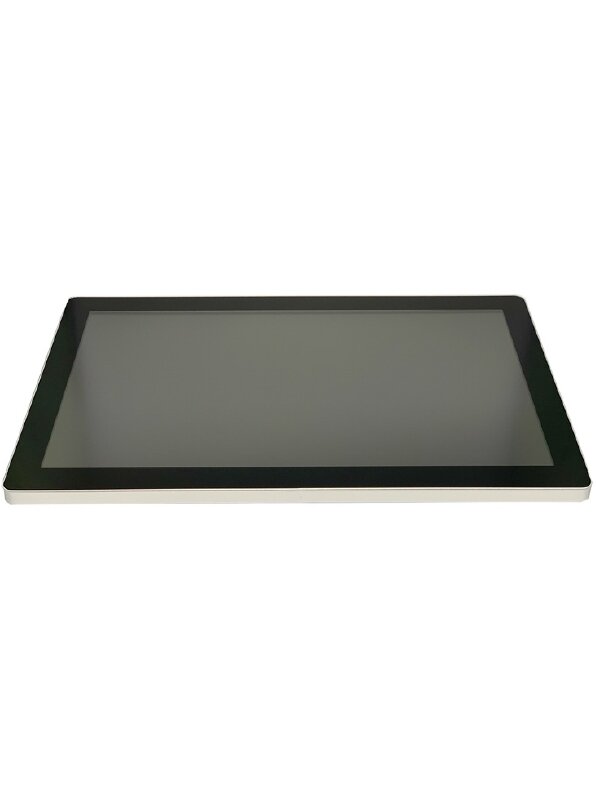

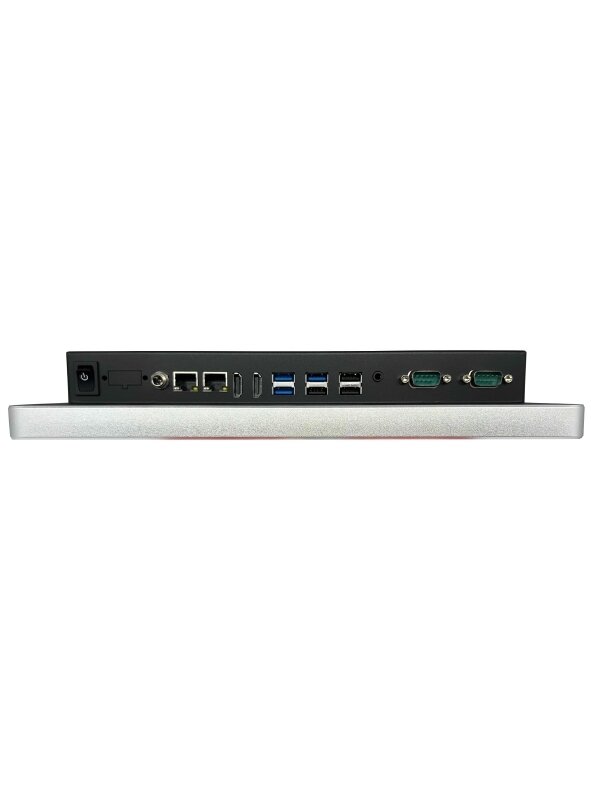

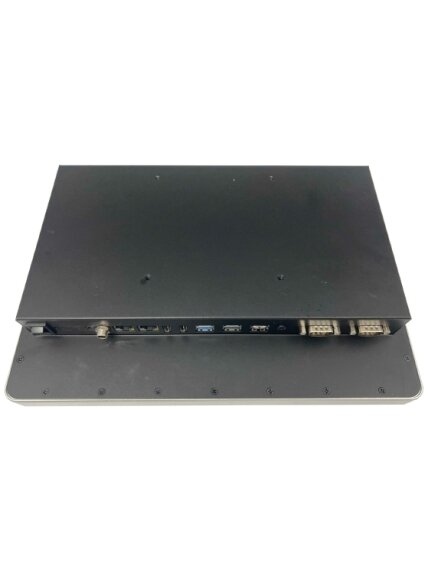

    Technica PPC1900-N97 19″ Industrial grade Touch Panel PC, Ultra slim Aluminum Front Bezel, True-flat PCAP Touch, Light and Fanless with Alder lake-N N97 processor

    Code: PPC1900-N97
    Ordered item
    Order
    Manufacturer
    Technica House
    Certificate
    IP67 front
    Made in
    Taiwan
  • LCD Panel 19"
    CPU Intel Alder Lake-N N97 CPU, 4E-Core, up to 3.60 GHz, TDP 12W
    Chipset CPU Integrated
    System Memory DDR4-3200 MHz, 1 x non-ECC SO-DIMM, up to 16GB
    BIOS AMI
    COM 1 x RS-232/485, 1 x RS-232
    USB

    4 x USB 3.0, 2 x USB 2.0
    Ethernet 2 x Intel Giga LAN
    Display

    1 x HDMI
    1 x DP++
    Audio 2 x Stereo speaker (Optional)
    Storage 1 x SATA 3.0, 1 x NVMe/SATA M.2 SSD
    Expansion

    1 x M.2 (Key-M, 2280, PCIe x1 NVMe/ SATA) Auto Detect
    1 x M.2 (Key-E, 2230, PCIE + USB 2.0, support Wifi + BT module)
    1 x M.2 (Key-B, 2242/3052, USB 3.0 + USB 2.0, support 5G/4G)
    1 x SIM Card Wafer

    Others -
    Touch Screen True-Flat PCAP ?ouch (IP67 Front) or Resistive Touch, Anti-UV, Anti-IR protection, Optical Bonding (Optional)
    Front Bezel Ultra Slim Aluminum Front Bezel
    Power Supply

    DCIN Input: 12/19/24V with locakable Power adapter (Auto Detect)
    Support 9-36VDC-IN phoenix connector (Optional)
    Power Consumption -
    Watchdog Timer With Watchdog Timer
    Operating Temperature -20°C ~ 60°C
    Relative Humidity 5% ~ 95% RH non-condensing
    Vibration -
    Dimensions 424.72 x 349.5 x 52 mm, suggested cut out is 401.5 x 326 mm
    Weight 4.0 Kg
    Certifications CE/FCC
    EOS Support Windows 10, Windows 11, Linux
    Mounting VESA Mount, Panel Mount with Panel Mount bracket (Optional)
