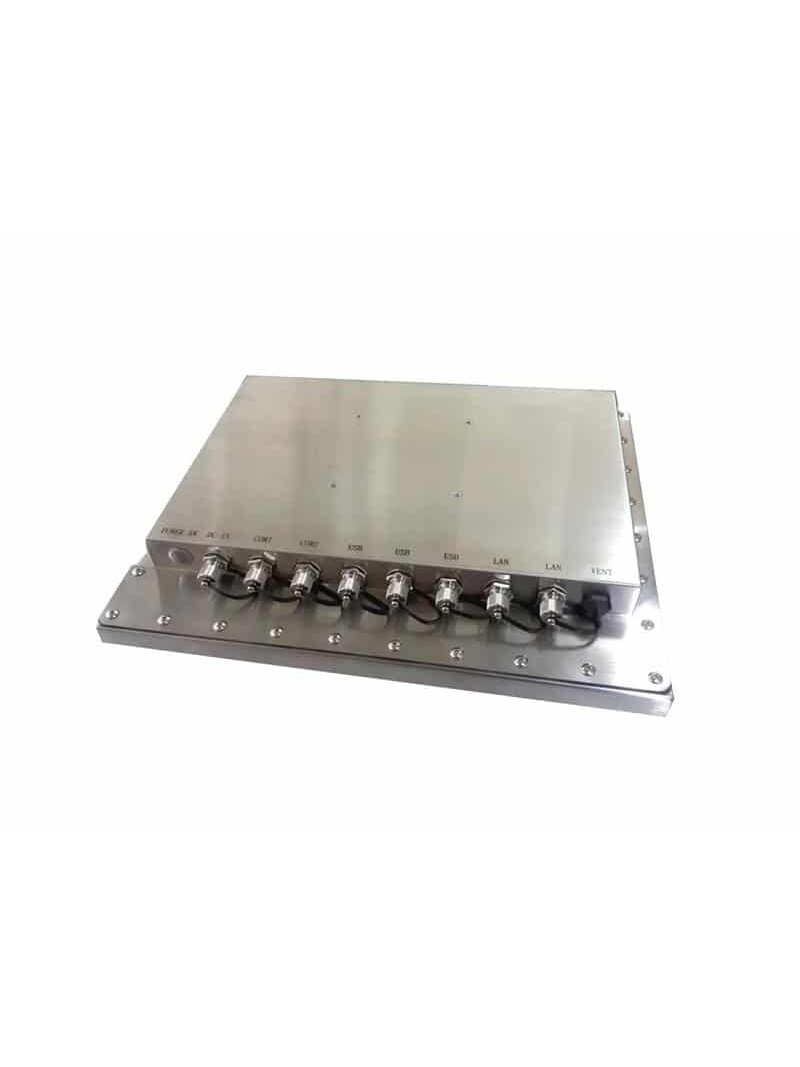

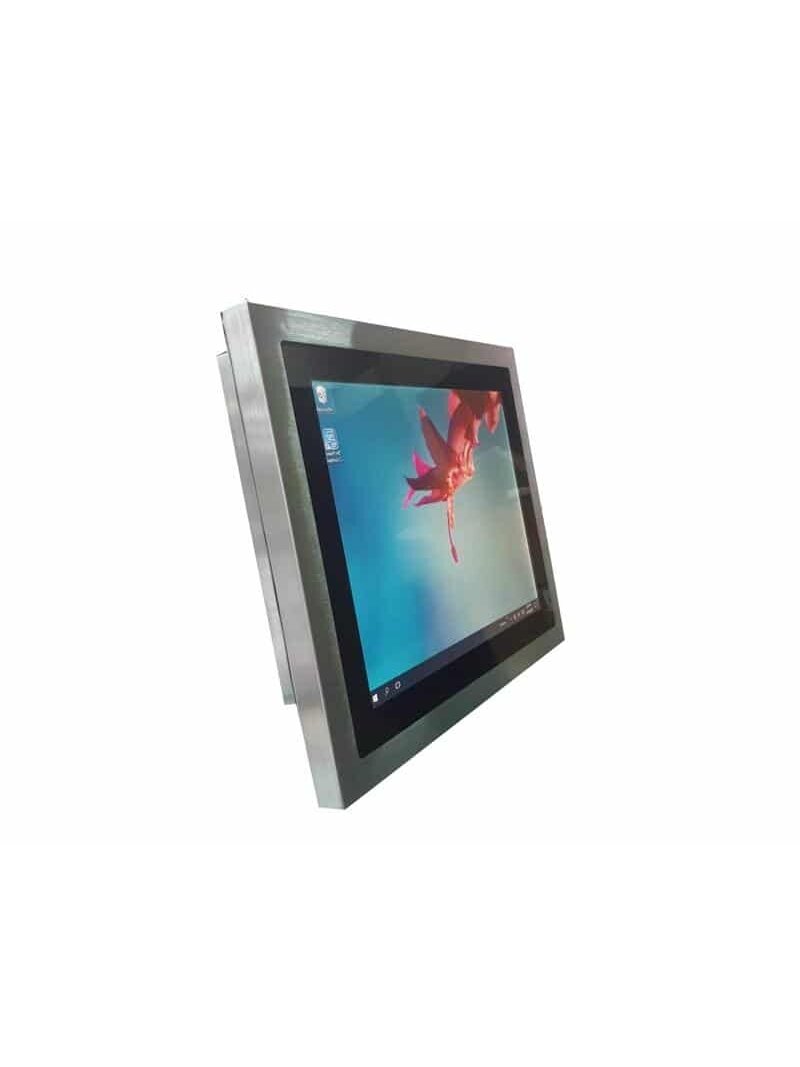

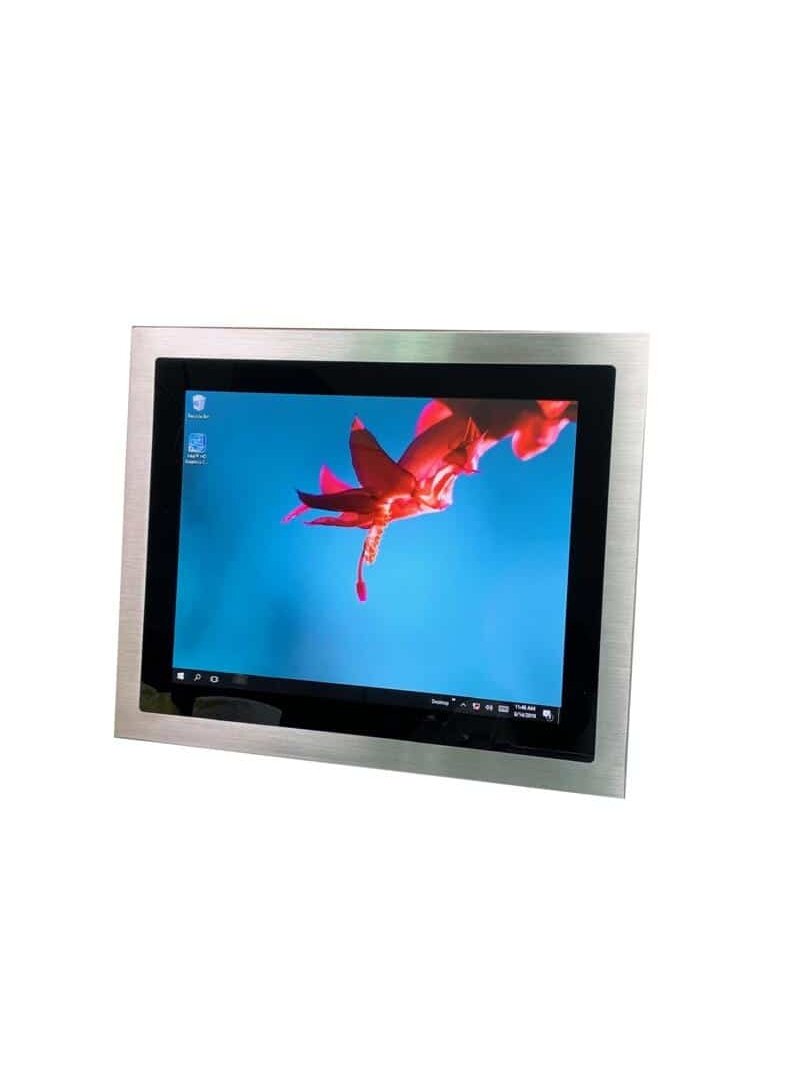

  • New item   Technica PPC1906-J1900-IP69K 19” IP69K Full Stainless Steel, PCAP Touch, Fanless Panel PC with Intel J1900 Processor
    New item   Technica PPC1906-J1900-IP69K 19” IP69K Full Stainless Steel, PCAP Touch, Fanless Panel PC with Intel J1900 Processor 1
    New item   Technica PPC1906-J1900-IP69K 19” IP69K Full Stainless Steel, PCAP Touch, Fanless Panel PC with Intel J1900 Processor 2

    Technica PPC1906-J1900-IP69K 19” IP69K Full Stainless Steel, PCAP Touch, Fanless Panel PC with Intel J1900 Processor

    Code: PPC1906-J1900-IP69K
    Ordered item
    Order
    Manufacturer
    Technica House
    Certificate
    IP69K
    Field of use
    Full Water-Proof
    Made in
    Taiwan
  • LCD Panel 19" (4:3 ratio)
    CPU Intel® Atom™ Processor J1900 (Quad Core/ 2.42GHz / 2M L2 cache)
    Chipset SoC integrated
    System Memory Max. Memory up to 8.0 GB
    BIOS AMI
    COM 2 x RS232 (M12 type water-proof connector) with 2 meter long IP69K cables included
    USB

    6 x USB 2.0 (M12 type water-proof connector) with 2 meter long IP69K cables included
    Ethernet 2 x LAN (M12 type water-proof connector) with 2 meter long IP69K cables included
    Display

    -
    Audio -
    Storage 2.5" HDD/SSD, mSATA / SATA DOM (Disk On Module)
    Expansion

    Support 125 KHz & 13.56 MHz RFID (Optional)
    Others 1x Vent M12 connector (for air pressure release)
    Touch Screen True flat PCAP Touch or Resistive Touch
    Front Bezel Full IP69K/IP68 Stainless steel housing
    Power Supply

    1x DC‐12V input port with 2 meter long IP69K cable with 84 watts power adapter included
    Power Consumption -
    Watchdog Timer Watch dog timer support
    Operating Temperature ‐20°C~ +60°C (‐68°F~ +140°F)
    Relative Humidity 10%~90% (non‐condensing)
    Vibration -
    Dimensions 400 x 325 x 58 mm
    Weight 6.5 Kg
    Certifications CE/FCC
    EOS Support Win XP / 7 / 8 /10
    Mounting VESA mounting supportd (75 x 75 or 100 x 100 mm)
