  • New item   Technica PPC2380-H410 Industrial 23.8″ Touch Panel PC with Intel 10th Gen. H410 chipset Comet Lake-S Core i9/i7/i5/i3 Processor with PCIE slot integrated expansion
    New item   Technica PPC2380-H410 Industrial 23.8″ Touch Panel PC with Intel 10th Gen. H410 chipset Comet Lake-S Core i9/i7/i5/i3 Processor with PCIE slot integrated expansion 1
    New item   Technica PPC2380-H410 Industrial 23.8″ Touch Panel PC with Intel 10th Gen. H410 chipset Comet Lake-S Core i9/i7/i5/i3 Processor with PCIE slot integrated expansion 2

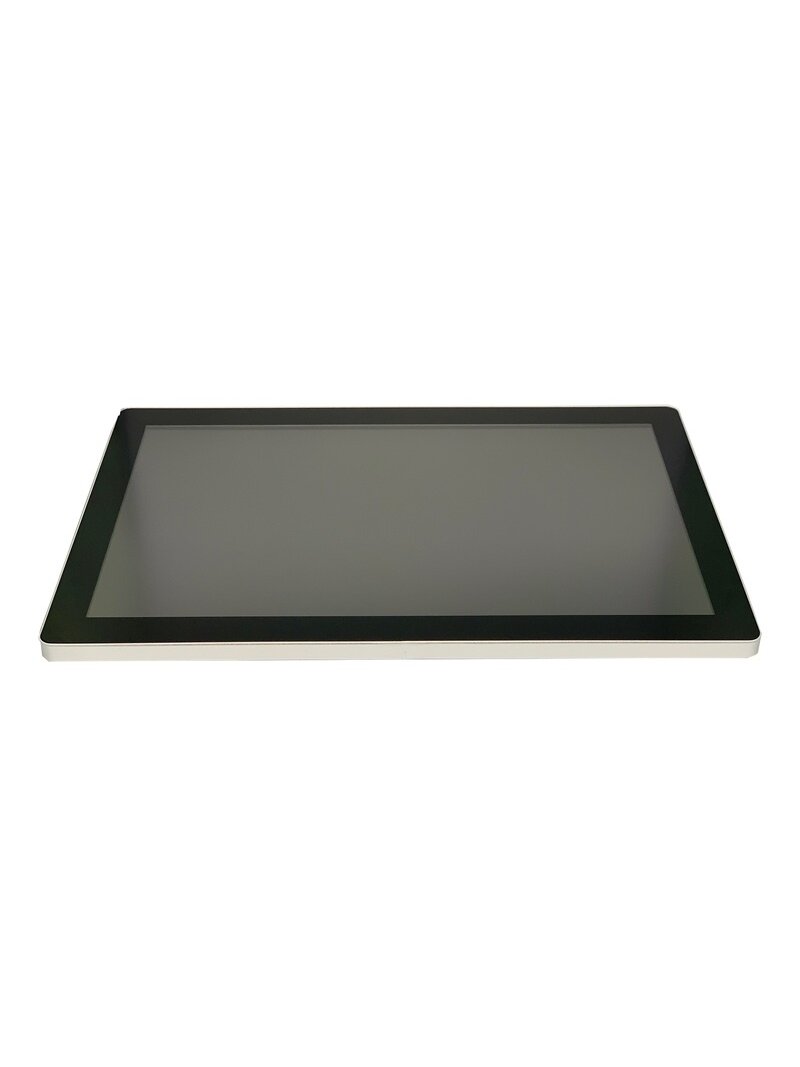

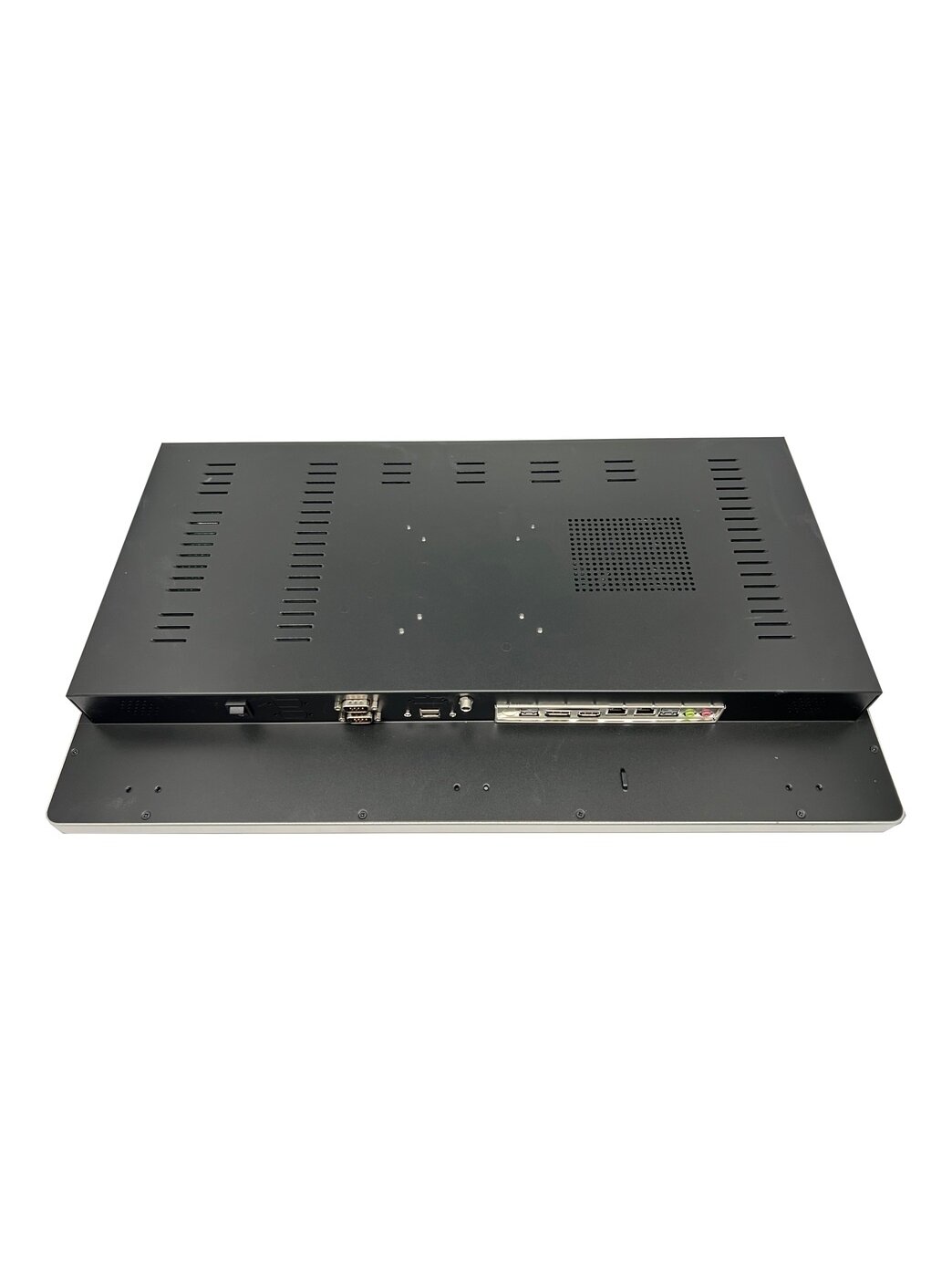

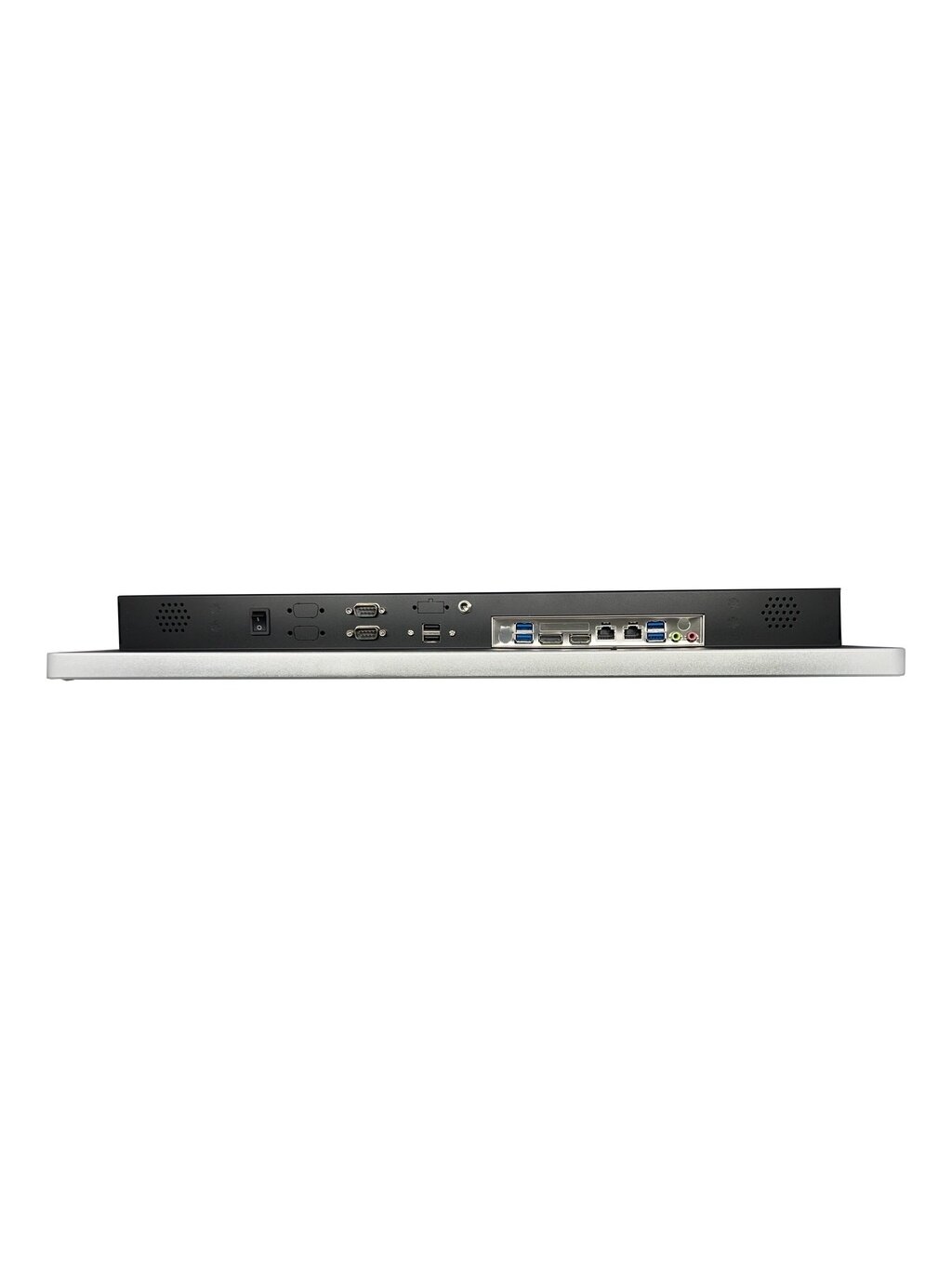

    Technica PPC2380-H410 Industrial 23.8″ Touch Panel PC with Intel 10th Gen. H410 chipset Comet Lake-S Core i9/i7/i5/i3 Processor with PCIE slot integrated expansion

    Code: PPC2380-H410
    Ordered item
    Order
    Manufacturer
    Technica House
    Made in
    Taiwan
  • LCD Panel 23.8", 1920 x 1080
    CPU Intel 10th Comet Lake-S LGA1200 Socket i9/i7/i5/i3/Pentium/Celeron Processor TDP Max. 65W
    Chipset H410
    System Memory Dual Channel DDR4 2666/2933 MHz SO-DIMM, up to 32GB
    BIOS AMI
    COM 2x RS-232, (Optional 2x RS-232, 2x RS-232/422/485)
    USB

    4 x USB3.0
    2 x USB2.0

    Ethernet 2 x LAN
    Display

    3 x HDMI
    Audio Speaker Header x 1 (Optional)
    Storage 2 x SATAIII, 1 x M.2 2280 SATA/PCIe slot
    Expansion

    1 x Full size Mini-PCIe slot co-lay with mSATA
    1 x PCIe (x16) slot
    1 x M.2 wifi, 1 x M.2 SATA/PCIe
    Others With FAN design
    Touch Screen PCAP Touch or Resistive Touch (Optional)
    Front Bezel Aluminum front bezel
    Power Supply

    DCIN Input : 12/19-24V
    Power adapter (Optional 120W/150W)
    9-36V (Optional)
    Power Consumption -
    Watchdog Timer With Watchdog Timer
    Operating Temperature -20°C ~ 60°C
    Relative Humidity 5% ~ 95% RH non-condensing
    Vibration -
    Dimensions 574.4 x 348.8 x 61 mm, suggested cut out dimensions is 551 x 325.50 mm
    Weight 7.0 Kg
    Certifications CE/FCC
    EOS Support Win10, Win11, Linux
    Mounting VESA Mount 75 x 75 or 100 x 100 mm or Panel Mount kit (optional)
