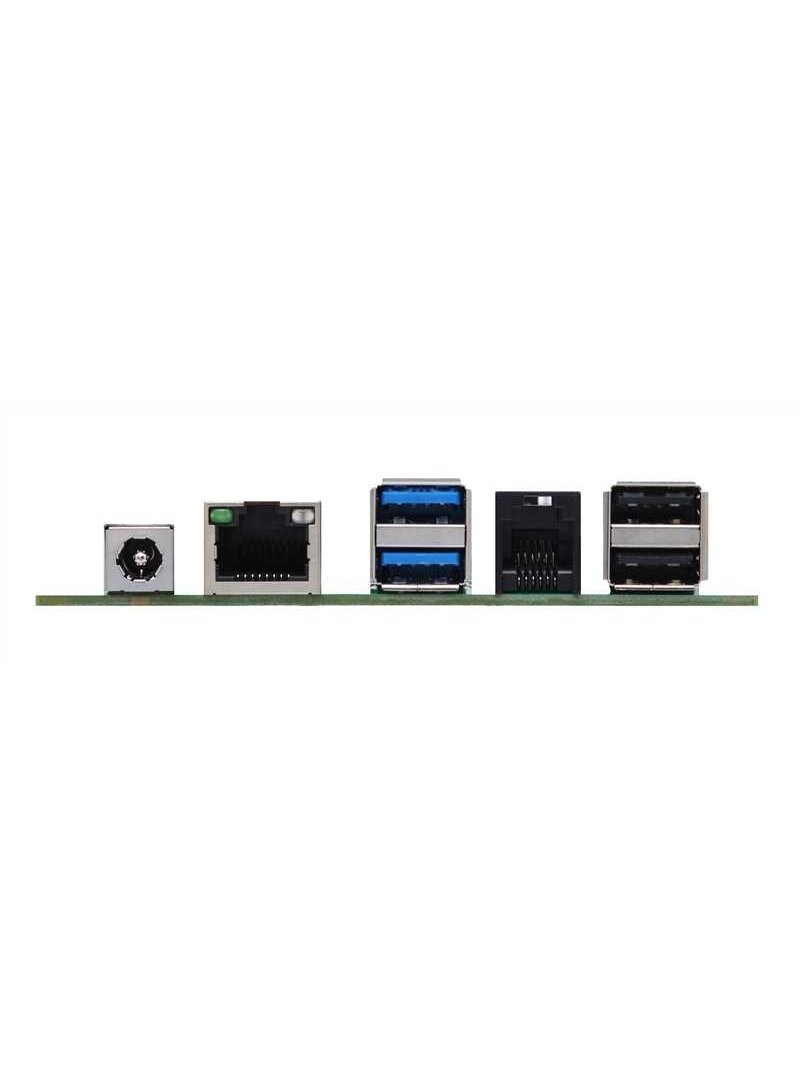

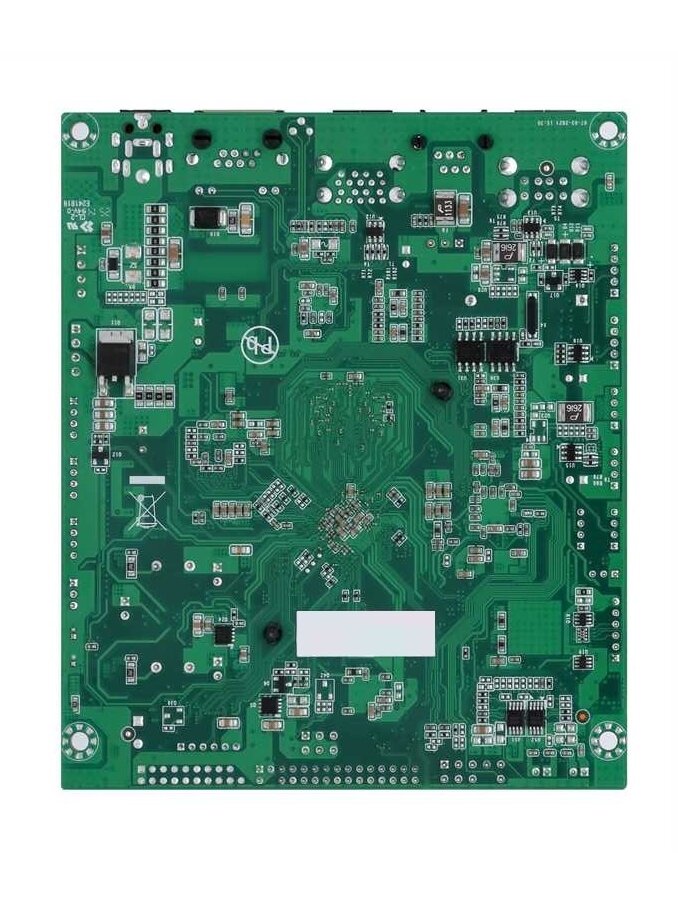

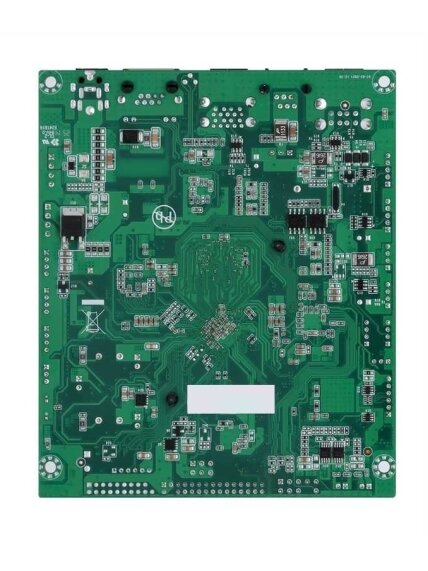

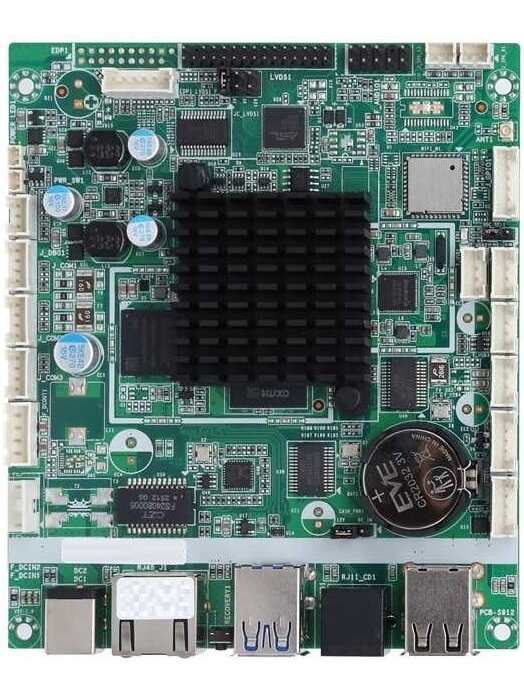

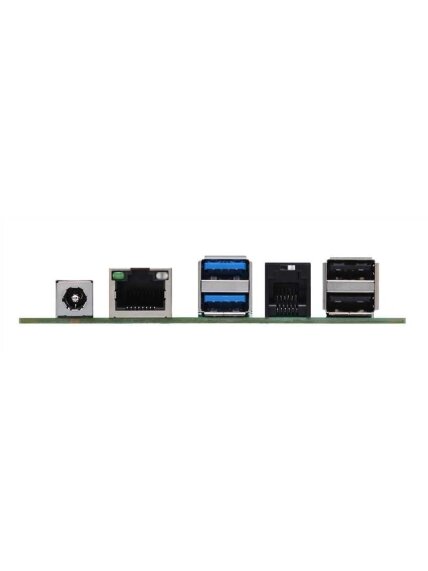

    Technica TH30-RK3566 Industrial Embedded Motherboard with RK3566 CPU, support Android 11

    Code: TH30-RK3566
    Ordered item
    Order
    Manufacturer
    Technica House
    Made in
    Taiwan
  • CPU ARM Rockchip RK3566, Quad-Core Cortex-A55, up to 1.8 GHz
    Chipset -
    System Memory SDRAM LPDDR4X, 2/4 GB, on board (Default is 2GB on board)
    BIOS -
    COM 2 x RS-232/TTL, 2 lines
    1 x TTL, 1 x RS-232
    USB 1 x USB 3.0, 8 x USB 2.0, 1 x USB 2.0 OTG
    Ethernet 1 x Realtek GbpsEthernet Controller (PHY), RJ45
    Display 1 x eDP: Max resolutions up to 2560 x 1600 @ 60Hz
    1 x LVDS: Max resolutions up to 1920 x 1080 @ 60Hz
    Digital I/O 4 x Programmable GPIO
    Audio 1 x Line-out + MIC
    Storage 1 x eMMC 32/64G (Default is 32GB eMMC on board)
    Expansion Realtek 2.4GHz + BT 4.2 on board
    Others -
    Battery -
    Power Requirements DC 12V, optional 24V
    Watchdog Timer -
    Hardware Monitoring -
    Operating Temperature -20°C to +60°C
    Relative Humidity 10% to 95% relative humidity, non-condensing
    Dimensions 120 x 102 mm
    Board Thickness -
    Certifications CE, FCC
