  • New item   Technica TH35-i5-7200U 3.5″ Embedded Motherboard with i5-7200U CPU
    New item   Technica TH35-i5-7200U 3.5″ Embedded Motherboard with i5-7200U CPU 1

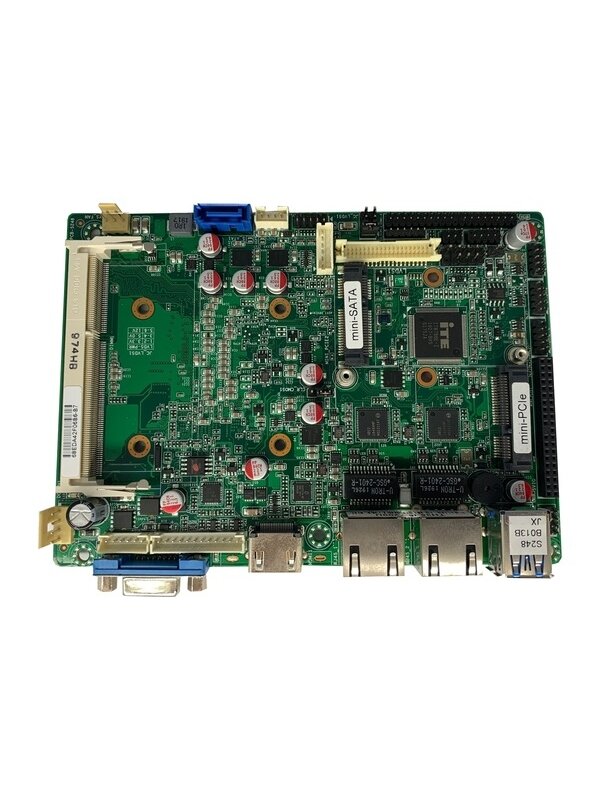

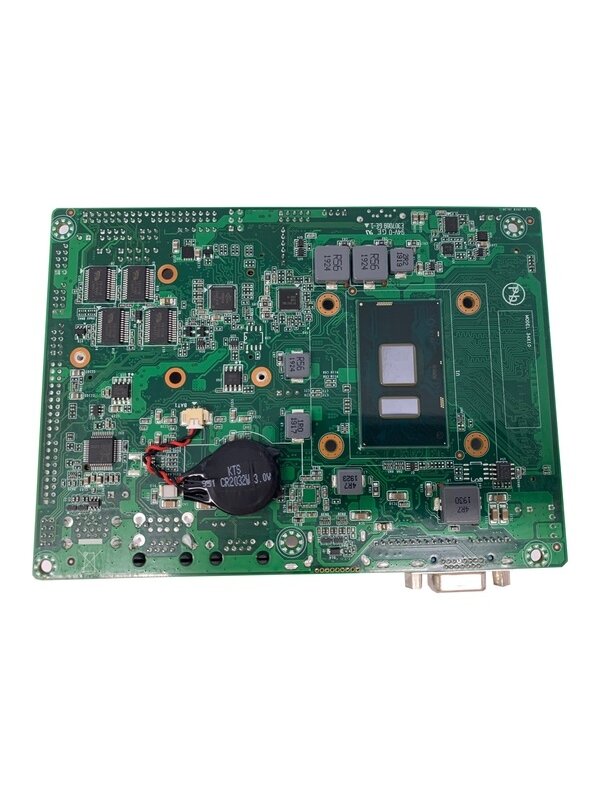

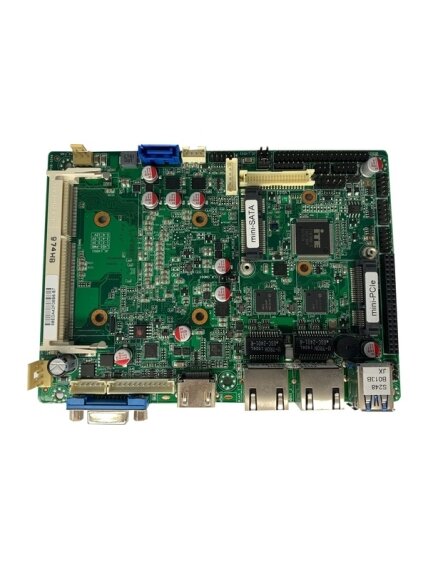

    Technica TH35-i5-7200U 3.5″ Embedded Motherboard with i5-7200U CPU

    Code: TH35-i5-7200U
    Ordered item
    Order
    Manufacturer
    Technica House
    Made in
    Taiwan
  • CPU Intel Core i5-7200U, Dual-core, 2.5 GHz, TDP 15W
    Chipset SoC integrated
    System Memory DDR3L-1333/1600, 1 x SO-DIMM, up to 8GB
    BIOS AMI
    COM 6 x RS-232
    USB 2 x USB 3.0
    6 x USB 2.0
    Ethernet 2 x RJ-45, Intel I211 Giga LAN
    Display 1 x VGA (Up to 1920 x 1080 @ 60Hz)
    1 x HDMI (Up to 4096 x 2160 @ 30Hz)
    1 x LVDS (Up to 1920 x 1200 @ 60Hz)
    Digital I/O Programmable support 8-bit GPIO
    Audio Realtek 5.1 channel HDA Codec, with MIC/Line-out
    Storage 1 x SATA 3.0, 1 x mSATA
    Expansion 2 x Mini-PCIe (1 x mSATA, 1 x Wifi/3G/4G supported)
    Others -
    Battery -
    Power Requirements 1 x DC 9 - 28V Power Input Connector
    Watchdog Timer 1 - 255 steps by software program
    Hardware Monitoring -
    Operating Temperature 0°C to +60°C (+32°F to +140°F)
    Relative Humidity 10% to 95% relative humidity, non-condensing
    Dimensions 146 x 105 mm, 3.5-inch
    Board Thickness -
    Certifications CE, FCC Class B
