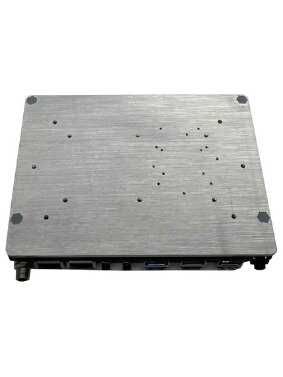

    New item   Technica TH35-J6412 Industrial 3.5″ Embedded Motherboard with Intel Elkhart Lake J6412 Processor 1

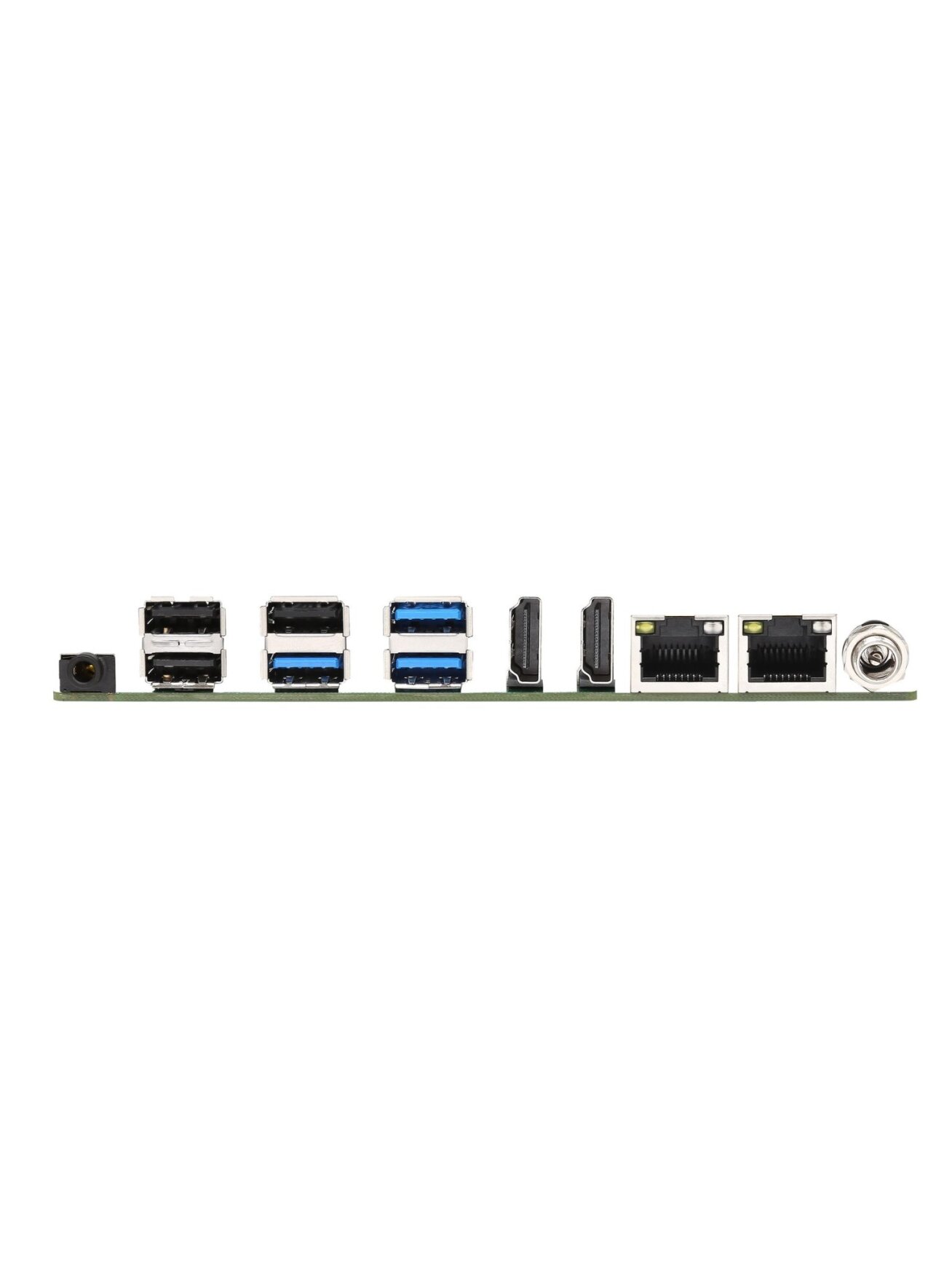

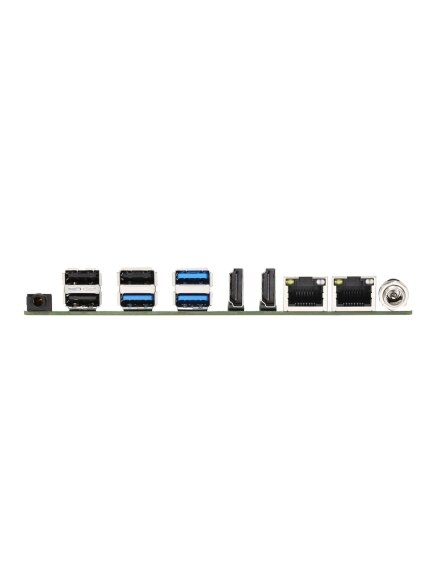

    New item   Technica TH35-J6412 Industrial 3.5″ Embedded Motherboard with Intel Elkhart Lake J6412 Processor 2

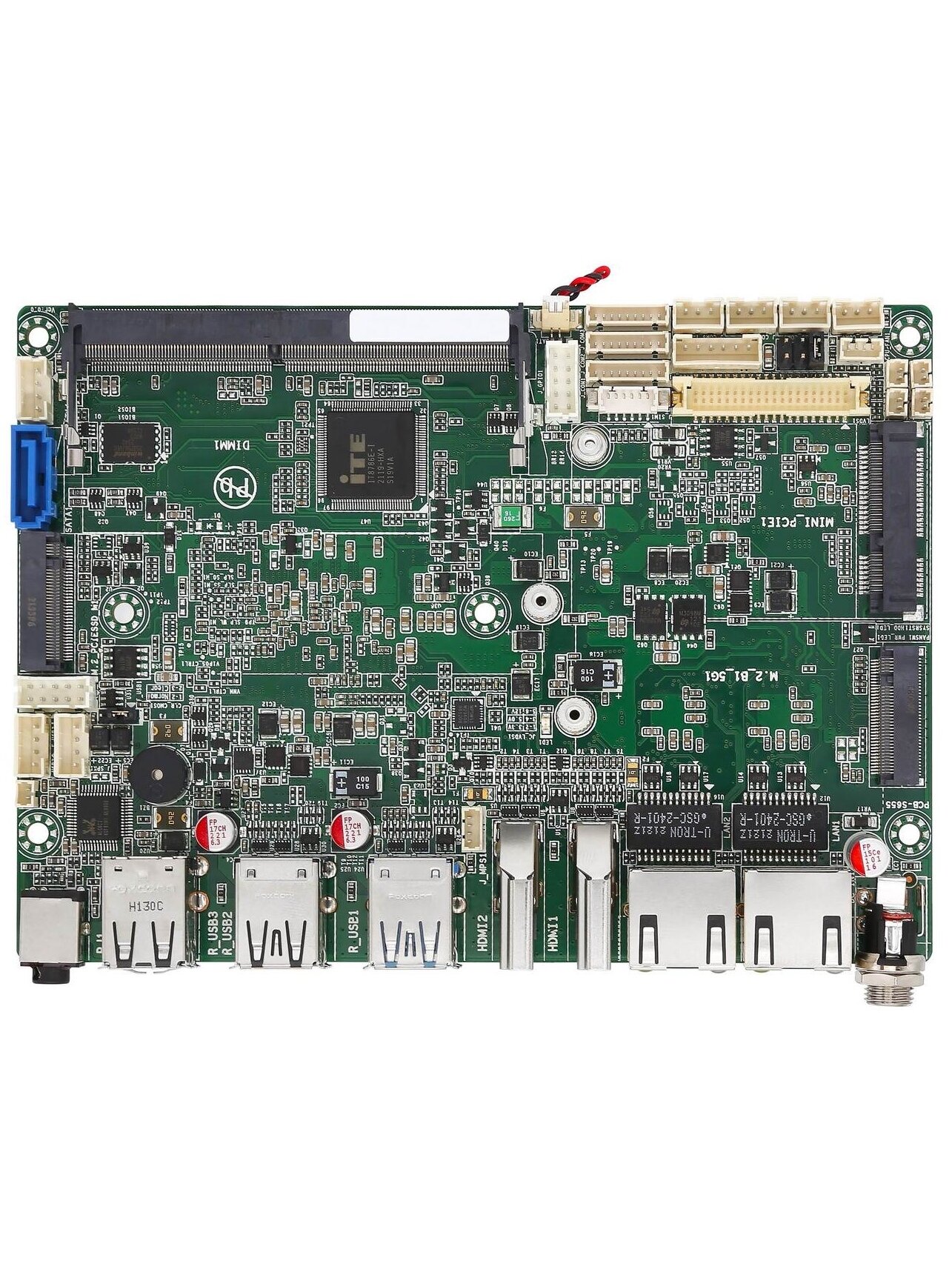

    Technica TH35-J6412 Industrial 3.5″ Embedded Motherboard with Intel Elkhart Lake J6412 Processor

    Code: TH35-J6412
    Ordered item
    Order
    Manufacturer
    Technica House
    Made in
    Taiwan
  • CPU Intel Celeron J6412 CPU, Quad-Core, up to 2.6 GHz, TDP 10W
    Chipset SoC integrated
    System Memory DDR4-2666/2933/3200, 1 x SO-DIMM, up to 32GB
    BIOS AMI
    COM 3 x RS-232 (COM 1/2/3, Header)
    2 x RS-232/TTL (COM 4/5, Header)
    1 x RS-232/485/TTL (COM 6, Header)
    USB 3 x USB 3.0
    3 x USB 2.0
    4 x USB 2.0 (Internal)
    Ethernet 2 x RJ-45, Intel Giga LAN
    Display 2 x HDMI (Up to 4096 x 2160 @ 30Hz)
    1 x LVDS (Up to 1920 x 1200 @ 60Hz) (Default)
    1 x eDP (Up to 4096 x 2304 @ 60Hz) (Optional)
    Digital I/O Programmable support 8-bit GPIO
    Audio Realtek Audio HDA Codec, 1 x Amplifier Wafer
    Storage 1 x SATA 3.0, 1 x M.2 Key-M (NVMe/SATA, default is NVMe, 2280)
    Expansion 1 x M.2 (Key-M, 2280, PCIe x2 NVMe/ SATA) NVMe is default
    1 x M.2 (Key-B, 3052, PCIE/USB 3.0 + USB 2.0) USB 3.0 is default
    1 x Mini-PCIe (PCIe + USB 2.0/ mSATA) PCIe + USB 2.0 is default
    Others 1 x Power LED Header, 1 x Power Button Header, 1 x System Reset Header, 1 x HDD LED Header, 1 x CPU FAN Header, 1 x MPS Header, 2 x GSPI Header, 1 x SIM Card Header
    Battery -
    Power Requirements DC-in 12V
    Watchdog Timer 1 - 255 steps by software program
    Hardware Monitoring -
    Operating Temperature -20°C to +70°C
    Relative Humidity 10% to 95% relative humidity, non-condensing
    Dimensions 146 x 105 mm, 3.5-inch
    Board Thickness -
    Certifications CE, FCC Class B
