  • New item   Technica TM1010-SS316H-PM 10.1″ Stainless Steel Type 316 IP67 Front Panel Mount Touch Monitor
    New item   Technica TM1010-SS316H-PM 10.1″ Stainless Steel Type 316 IP67 Front Panel Mount Touch Monitor 1

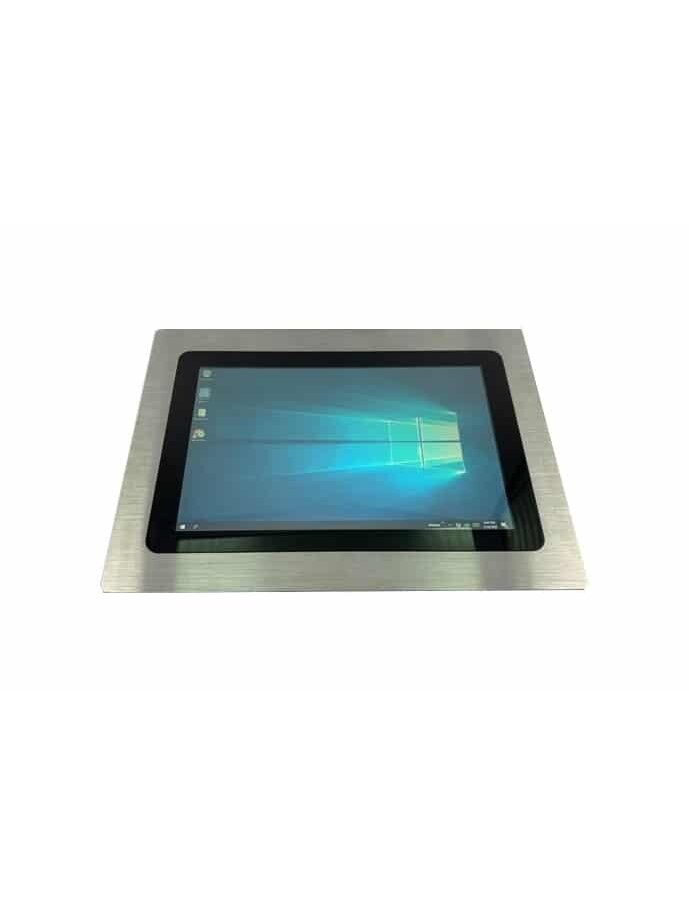

    Technica TM1010-SS316H-PM 10.1″ Stainless Steel Type 316 IP67 Front Panel Mount Touch Monitor

    Code: TM1010-SS316H-PM
    Ordered item
    Order
    Manufacturer
    Technica House
    Certificate
    IP67
    Made in
    Taiwan
  • Front Bezel Stainless Steel Type 316
    LCD Panel 10.1"
    Max Colors 16.7 M
    Active Area 216.96 x 135.6 (mm)
    Max Resolution 1280 x 800
    Display Mode VGA x 1
    DP x 1
    HDMI x 1
    Pixel Pitch 0.1695 x 0.1695 (mm)
    Backlight MTBF 50,000 Hrs
    Viewing Angle 85/85 (H), 85/85 (V)
    Response Time
    Contrast Ratio 1300 : 1
    LCD Brightness 1000 Nits (Sunlight readable)
    Display Control OSD Control
    I/O Interface Ambient light sensor (Optional)
    Touch Screen True-flat PCAP Touch (USB Interface) or Resistive Touch (Optional)
    Power Adapter Power supply 12V
    Power Consumption
    Operating Temperature -20°C ~ 60°C
    Dimensions 278 x 192 x 35 (mm)
    Weight 1.96 Kg

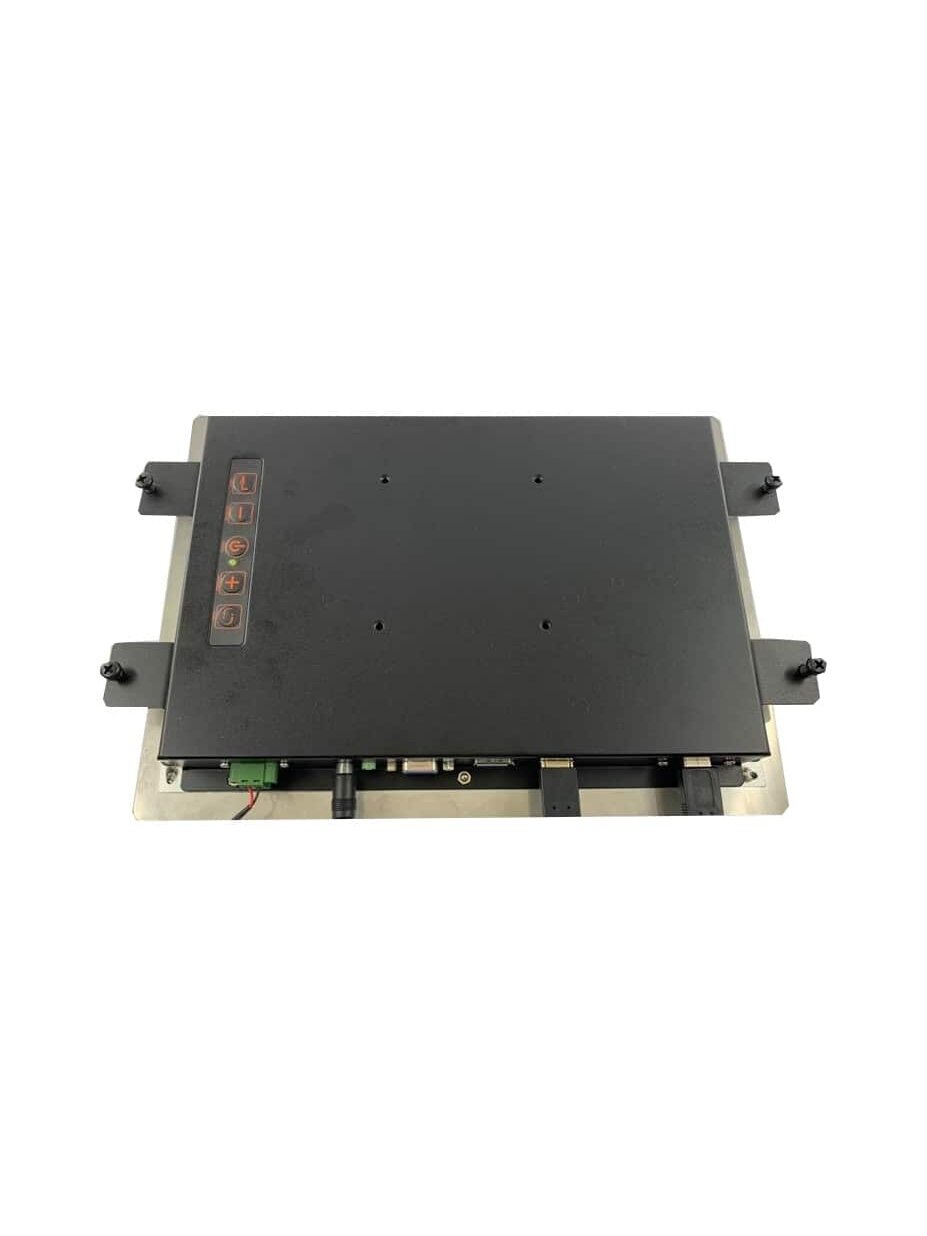

    Mounting Panel Mount with Panel Mount bracket, VESA Mount 75 x 75 mm
    Certifications CE, FCC
